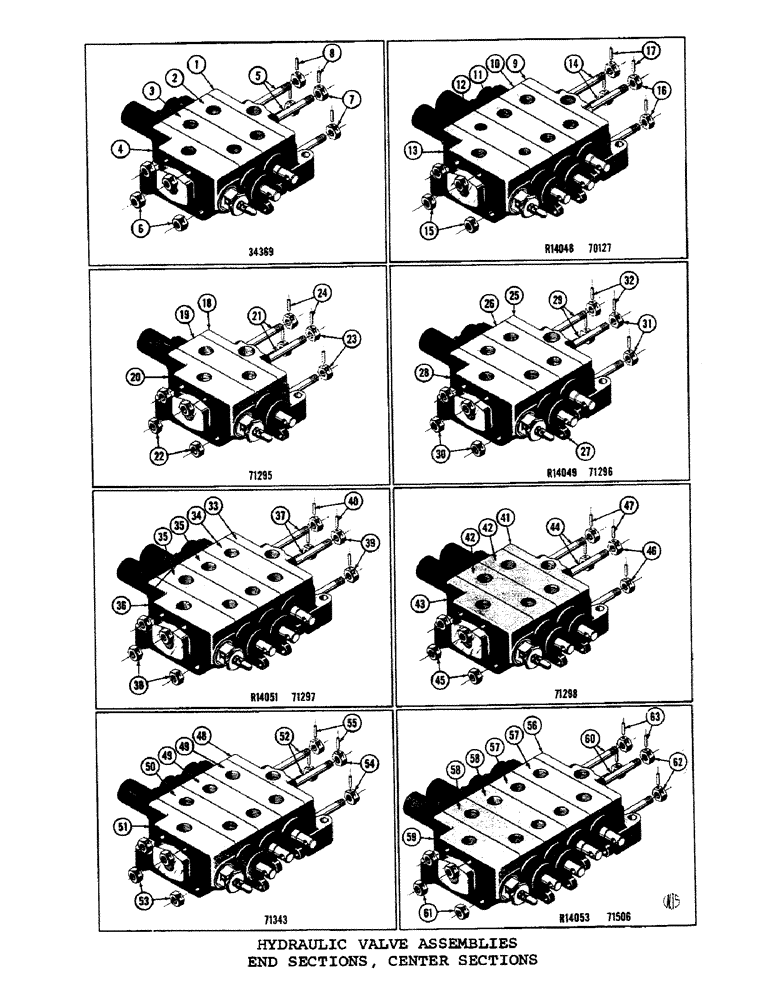

Запчасти Case 1000C (340) - HYDRAULIC VALVE ASSEMBLIES, ENDS SECTION, CENTER SECTIONS (07) - HYDRAULIC SYSTEM

53

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

54

NSS

NOT SOLD SEPARAT

NUT - hex (1/2-20 NF)

1шт.

55

NSS

NOT SOLD SEPARAT

PIN - roll 3/16 dia. x 3/4

1шт.

71506

VALVE ASS'Y. - hydraulic

1шт.

56

23169

PLUG

SECTION - end (See page #344 for breakdown)

1шт.

57

23165

PRODUCT GRAPHIC

SECTION - center (See page #346 for breakdown)

2шт.

58

23168

DECAL

SECTION - center (See page #346 for breakdown)

2шт.

59

23128

HYDRAULIC HOSE

SECTION - end (See page #344 for breakdown)

1шт.

60

38576

KEY

STUD ASS'Y. - 1/2-20 NF x 12-3/4

4шт.

61

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

62

NSS

NOT SOLD SEPARAT

NUT - hex (1/2-20 NF)

1шт.

63

NSS

NOT SOLD SEPARAT

PIN - roll 3/16 dia. x 3/4

1шт.

R14048

VALVE ASS'Y. - hydraulic

1шт.

9

R14268

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

10

R14270

X

SECTION ASS'Y. - center (See page #352 for breakdown)

1шт.

11

R14269

SECTION ASS'Y. - center (See page #352 for breakdown)

1шт.

12

R14272

SECTION ASS'Y. - center (See page #350 for breakdown)

1шт.

13

R14271

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

14

39032

STUD ASS'Y. - valve

4шт.

15

131-13

LOCK NUT,5/8"-18, GB

NUT - stop (5/8-18 NF)

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - hex (Drilled)

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

R14049

VALVE ASS'Y. - hydraulic

1шт.

25

R14273

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

26

R14274

SECTION ASS'Y. - center (See page #352 for breakdown)

1шт.

27

R14275

SECTION ASS'Y. - center (See page #350 for breakdown)

1шт.

28

R14276

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

29

38574

PLUG

STUD ASS'Y. - valve

4шт.

30

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - hex (Drilled)

1шт.

32

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

R14051

VALVE ASS'Y. - hydraulic

1шт.

33

R14273

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

34

R14274

SECTION ASS'Y. - center (See page #352 for breakdown)

1шт.

35

R14275

SECTION ASS'Y. - center (See page #350 for breakdown)

2шт.

36

R14276

SECTION ASS'Y. - end (See page #350 for breakdwon)

1шт.

37

38575

STUD ASS'Y. - valve

4шт.

38

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

39

NSS

NOT SOLD SEPARAT

NUT - hex (Drilled)

1шт.

40

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

R14052

VALVE ASS'Y. - hydraulic

1шт.

48

R14273

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

49

R14274

SECTION ASS'Y. - center (See page #352 for breakdown)

2шт.

50

R14275

SECTION ASS'Y. - center (See page #350 for breakdown)

1шт.

51

R14276

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

52

38575

STUD ASS'Y. - valve

4шт.

53

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

54

NSS

NOT SOLD SEPARAT

NUT - hex (Drilled)

1шт.

55

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

R14053

VALVE ASS'Y. - hydraulic

1шт.

56

R14273

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

57

R14274

SECTION ASS'Y. - center (See page #352 for breakdown)

2шт.

58

R14275

SECTION ASS'Y. - center (See page #350 for breakdown)

2шт.

59

R14276

SECTION ASS'Y. - end (See page #350 for breakdown)

1шт.

60

38576

KEY

STUD ASS'Y. - valve

4шт.

61

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

62

NSS

NOT SOLD SEPARAT

NUT - hex (Drilled)

1шт.

63

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.
