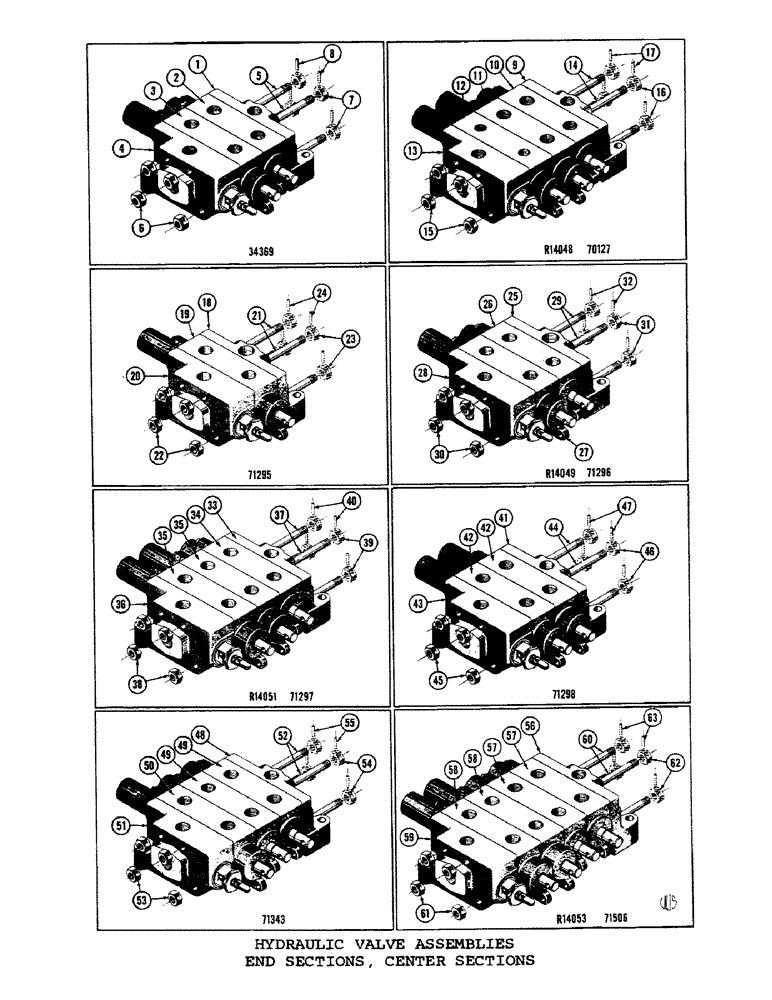

Запчасти Case 1000C (338) - HYDRAULIC VALVE ASSEMBLIES, ENDS SECTION, CENTER SECTIONS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
34369
VALVE ASS'Y. - hydraulic
1шт.
1
39026
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
2
39028
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
3
39029
SECTION ASS'Y. - center (See Figure 348 for breakdown)
1шт.
4
39030
ARM
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
5
39031
STUD ASS'Y. - valve
1шт.
6
131-13
LOCK NUT,5/8"-18, GB
NUT - stop (5/8-18 NF)
1шт.
7
NSS
NOT SOLD SEPARAT
NUT - hex, (Drilled)
1шт.
8
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
70127
VALVE ASS'Y. - hydraulic
1шт.
9
39026
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
10
39028
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
11
39029
SECTION ASS'Y. - center (See Figure 348 for breakdown)
1шт.
12
39027
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
13
39030
ARM
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
14
39032
STUD ASS'Y. - valve
4шт.
15
131-13
LOCK NUT,5/8"-18, GB
NUT - stop (5/8-18 NF)
1шт.
16
NSS
NOT SOLD SEPARAT
NUT - hex (Drilled)
1шт.
17
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
71295
VALVE ASS'Y. - hydraulic
1шт.
18
23169
PLUG
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
19
23168
DECAL
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
20
23128
HYDRAULIC HOSE
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
21
38573
STUD ASS'Y. - 1/2-20 NF x 6-3/4
4шт.
22
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
23
NSS
NOT SOLD SEPARAT
NUT - hex (1/2-20 NF)
1шт.
24
NSS
NOT SOLD SEPARAT
PIN - roll 3/16 dia. x 3/4
1шт.
71296
VALVE ASS'Y. - hydraulic
1шт.
25
23169
PLUG
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
26
23165
PRODUCT GRAPHIC
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
27
23168
DECAL
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
28
23128
HYDRAULIC HOSE
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
29
38574
PLUG
STUD ASS'Y. - 1/2-20 NF x 8-3/4
4шт.
30
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
31
NSS
NOT SOLD SEPARAT
NUT - hex (1/2-20 NF)
1шт.
32
NSS
NOT SOLD SEPARAT
PIN - roll 3/16 dia. x 3/4
1шт.
71297
VALVE ASS'Y. - hydraulic
1шт.
33
23169
PLUG
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
34
23165
PRODUCT GRAPHIC
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
35
23168
DECAL
SECTION ASS'Y. - center (See Figure 346 for breakdown)
2шт.
36
23128
HYDRAULIC HOSE
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
37
38575
STUD ASS'Y. - 1/2-20 NF x 10-3/4
4шт.
38
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
39
NSS
NOT SOLD SEPARAT
NUT - hex (1/2-20 NF)
1шт.
40
NSS
NOT SOLD SEPARAT
PIN - roll 3/16 dia. x 3/4
1шт.
71298
VALVE ASS'Y. - hydraulic
1шт.
41
23169
PLUG
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
42
23168
DECAL
SECTION ASS'Y. - center (See Figure 346 for breakdown)
2шт.
43
23128
HYDRAULIC HOSE
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
44
38574
PLUG
STUD ASS'Y. - 1/2-20 NF x 8-3/4
4шт.
45
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
46
NSS
NOT SOLD SEPARAT
NUT - hex (1/2-20 NF)
1шт.
47
NSS
NOT SOLD SEPARAT
PIN - roll 3/16 dia. x 3/4
1шт.
71343
BRACKET
VALVE ASS'Y. - hydraulic
1шт.
48
23169
PLUG
SECTION ASS'Y. - end (See Figure 344 for breakdown)
1шт.
49
23165
PRODUCT GRAPHIC
SECTION ASS'Y. - center (See Figure 346 for breakdown)
2шт.
50
23168
DECAL
SECTION ASS'Y. - center (See Figure 346 for breakdown)
1шт.
51
23128
HYDRAULIC HOSE
SECTION ASS'Y. - center (See Figure 344 for breakdown)
1шт.
52
38575
STUD ASS'Y. - 1/2-20 NF x 10-3/4
4шт.
53
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
54
NSS
NOT SOLD SEPARAT
NUT - hex (1/2-20 NF)
1шт.
55
NSS
NOT SOLD SEPARAT
PIN - roll 3/16 dia. x 3/4
1шт.
71506
VALVE ASS'Y. - hydraulic
1шт.
56
23169
PLUG
SECTION - end (See Figure 344 for breakdown)
1шт.
57
23165
PRODUCT GRAPHIC
SECTION - center (See Figure 346 for breakdown)
2шт.
58
23168
DECAL
SECTION - center (See Figure 346 for breakdown)
2шт.
59
23128
HYDRAULIC HOSE
SECTION - end (See Figure 344 for breakdown)
1шт.
60
38576
KEY
STUD ASS'Y. - 1/2-20 NF x 12-3/4
4шт.
61
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
62
NSS
NOT SOLD SEPARAT
NUT - hex (1/2-20 NF)
1шт.
63
NSS
NOT SOLD SEPARAT
PIN - roll 3/16 dia. x 3/4
1шт.
R14048
VALVE ASS'Y. - hydraulic
1шт.
9
R14268
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
10
R14270
X
SECTION ASS'Y. - center (See Figure 352 for breakdown)
1шт.
11
R14269
SECTION ASS'Y. - center (See Figure 352 for breakdown)
1шт.
12
R14272
SECTION ASS'Y. - center (See Figure 350 for breakdown)
1шт.
13
R14271
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
14
39032
STUD ASS'Y. - valve
4шт.
15
131-13
LOCK NUT,5/8"-18, GB
NUT - stop (5/8-18 NF)
1шт.
16
NSS
NOT SOLD SEPARAT
NUT - hex (Drilled)
1шт.
17
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
R14049
VALVE ASS'Y. - hydraulic
1шт.
25
R14273
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
26
R14274
SECTION ASS'Y. - center (See Figure 352 for breakdown)
1шт.
27
R14275
SECTION ASS'Y. - center (See Figure 350 for breakdown)
1шт.
28
R14276
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
29
38574
PLUG
STUD ASS'Y. - valve
4шт.
30
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
31
NSS
NOT SOLD SEPARAT
NUT - hex (Drilled)
1шт.
32
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
R14051
VALVE ASS'Y. - hydraulic
1шт.
33
R14273
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
34
R14274
SECTION ASS'Y. - center (See Figure 352 for breakdown)
1шт.
35
R14275
SECTION ASS'Y. - center (See Figure 350 for breakdown)
2шт.
36
R14276
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
37
38575
STUD ASS'Y. - valve
4шт.
38
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
39
NSS
NOT SOLD SEPARAT
NUT - hex (Drilled)
1шт.
40
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
R14052
VALVE ASS'Y. - hydraulic
1шт.
48
R14273
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
49
R14274
SECTION ASS'Y. - center (See Figure 352 for breakdown)
2шт.
50
R14275
SECTION ASS'Y. - center (See Figure 350 for breakdown)
1шт.
51
R14276
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
52
38575
STUD ASS'Y. - valve
4шт.
53
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
54
NSS
NOT SOLD SEPARAT
NUT - hex (Drilled)
1шт.
55
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
R14053
VALVE ASS'Y. - hydraulic
1шт.
56
R14273
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
57
R14274
SECTION ASS'Y. - center (See Figure 352 for breakdown)
2шт.
58
R14275
SECTION ASS'Y. - center (See Figure 350 for breakdown)
2шт.
59
R14276
SECTION ASS'Y. - end (See Figure 350 for breakdown)
1шт.
60
38576
KEY
STUD ASS'Y. - valve
4шт.
61
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
1шт.
62
NSS
NOT SOLD SEPARAT
NUT - hex (Drilled)
1шт.
63
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
Выбрано товаров: 117
