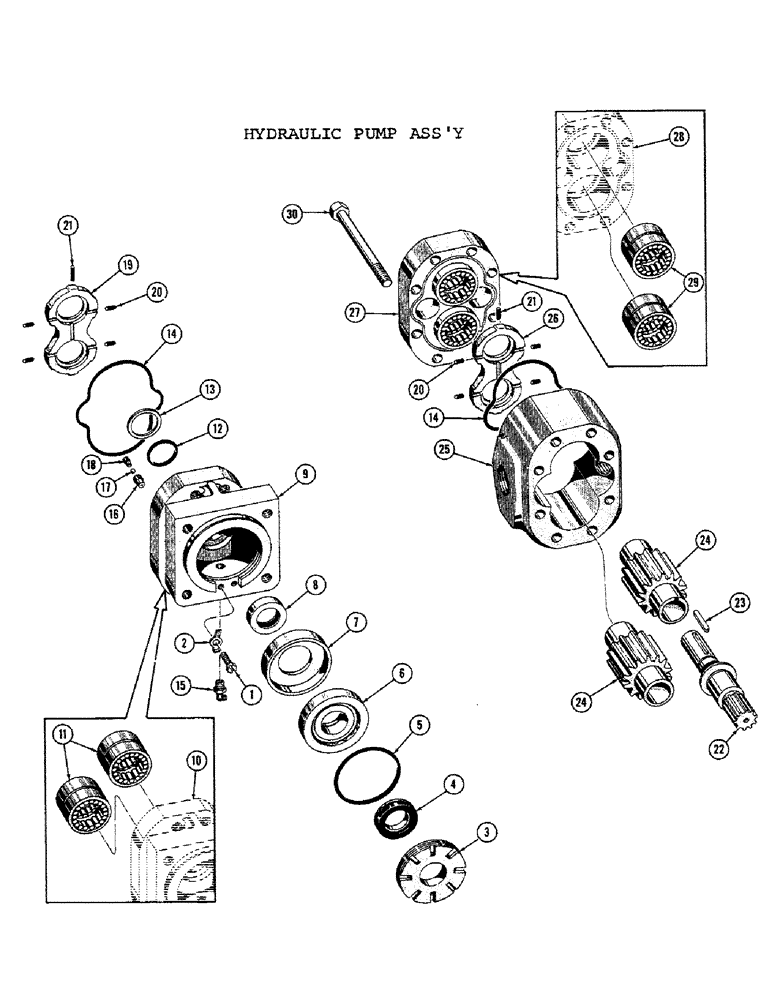

Запчасти Case 1000C (330) - HYDRAULIC PUMP ASSEMBLY, BODY, COVERS, GEARS, SHAFT, SEALS (07) - HYDRAULIC SYSTEM

72397

STUD

PUMP ASS'Y. - hydraulic (Use R14447 when ordering a complete pump)

1шт.

1

46914

BELT

HHMS - 1/4-20 x 1/2

1шт.

2

39751

BOARD

WASHER - lock

1шт.

3

73152

SEAL

RETAINER - bearing

1шт.

4

39736

OIL SEAL

- oil

1шт.

5

VT-2991

SEAL - "O" ring

1шт.

6

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing

1шт.

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing

1шт.

7

39020

SPACER - bearing

1шт.

8

NLS

NO LONGER SERVICED

- oil

1шт.

9

39017

COVER ASS'Y - front (Includes ref. #5, 8, 10, 11, 16, 17, 18)

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - shaft

1шт.

11

74634

ROLLER BEARING,1.625" ID x 2.1875" OD x 1.25"

- roller

2шт.

12

O8380AB

X

SEAL - "O" ring

1шт.

13

39737

RING

- back up

1шт.

14

39738

O-RING,4.609" ID x 0.139" Width

SEAL - "O" ring

2шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg

1шт.

16

71430

TOOL

SEAT - check valve

2шт.

17

O8635AB

X

BALL - check

2шт.

18

71432

TOOL

RETAINER - check ball

2шт.

19

39742

PLATE

- thrust

1шт.

20

39743

X

SEAL - pocket

8шт.

21

NLS

NO LONGER SERVICED

SEAL - pocket

2шт.

22

39745

SHAFT - drive

1шт.

23

39746

KEY - gear

1шт.

24

5453

BREAKER

KIT - gear

1шт.

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

25

39741

HOUSING - gear

1шт.

26

39742

PLATE

- thrust

1шт.

27

39739

COVER ASS'Y. - rear

1шт.

28

NSS

NOT SOLD SEPARAT

COVER

1шт.

29

74634

ROLLER BEARING,1.625" ID x 2.1875" OD x 1.25"

- roller

2шт.

30

45475

HHCS - 5/8-11 NC x 6-1/2

8шт.
