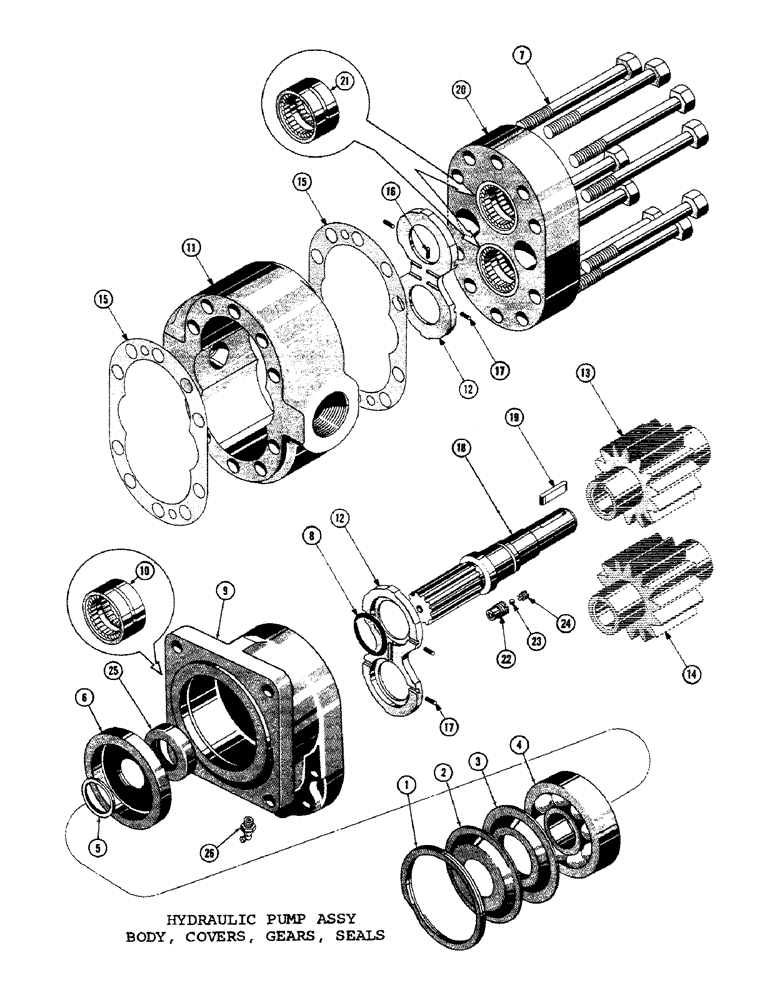

Запчасти Case 1000C (326) - HYDRAULIC PUMP ASSEMBLY, BODY, COVERS, GEARS, SHAFT, SEALS (07) - HYDRAULIC SYSTEM

R12658

PUMP ASS'Y. - hydraulic

1шт.

1

R12623

RING - retaining

1шт.

2

R12624

SHIELD - ball bearing

1шт.

3

R12625

SEAL

- bearing

1шт.

4

R12626

BEARING

- ball

1шт.

5

R12632

RING

- snap

1шт.

6

R12633

SPACER - bearing

1шт.

7

R12641

HHCS

10шт.

8

O8380AB

X

SEAL - "O" ring

1шт.

9

R12621

COVER ASSY

COVER ASS'Y - front

1шт.

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

10

71435

BEARING

- roller

2шт.

11

71439

HOUSING - gear

1шт.

12

71442

LARGE PLATE

PLATE - thrust

2шт.

5456

SPRING

KIT - gear (Matched set)

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

15

71443

TUBE

- housing

2шт.

16

71440

X

SEAL - pocket

2шт.

17

71441

SEAL - pocket

8шт.

18

R12634

SHAFT

- drive

1шт.

19

72737

KEY - gear

1шт.

20

R12627

COVER ASS'Y. - rear

1шт.

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

21

71435

BEARING

- roller

2шт.

22

71430

TOOL

SEAT - check valve

2шт.

23

O8380AB

X

BALL - check

2шт.

24

71432

TOOL

RETAINER - ball check

2шт.

25

O8380AB

X

SEAL - oil

1шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
