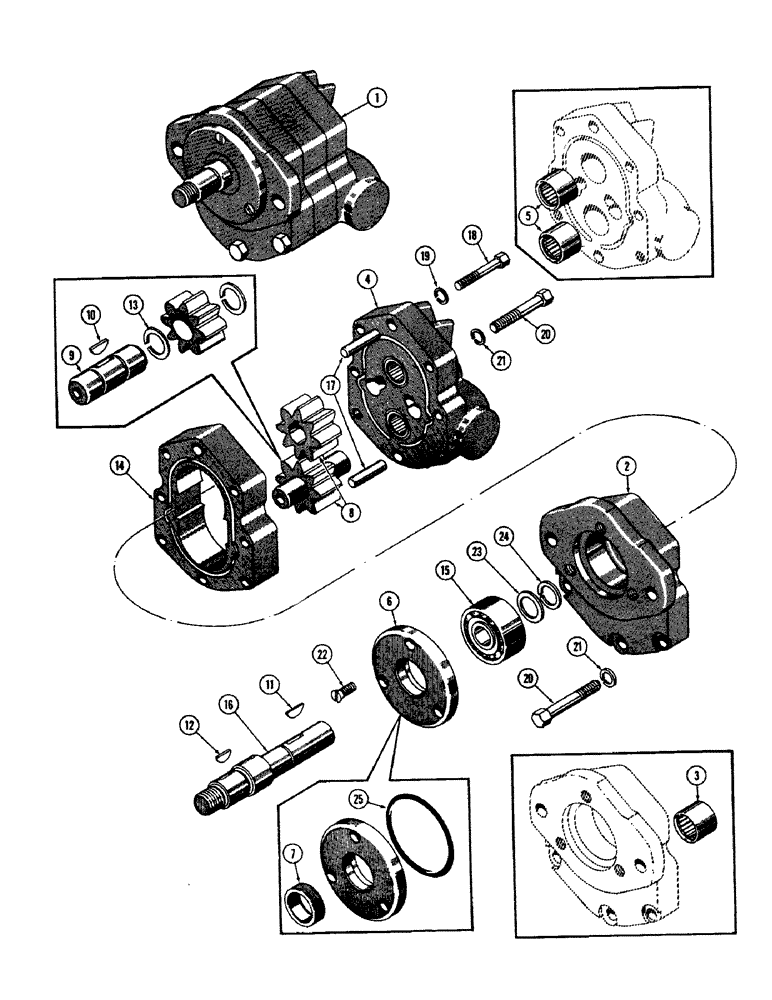

Запчасти Case 1000C (321A) - SERVICE BREAKDOWN OF D29494 PUMP, 10.5 G.P.M. (07) - HYDRAULIC SYSTEM

D29494

PUMP - hydraulic, 10.5 G.P.M. (Webster 2HCS-23R)

1шт.

74566

BODY

- pump, hydraulic (Shaft end)

1шт.

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

D29529

COVER - pump

1шт.

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

D29537

PLATE - pilot

1шт.

R13083

SEAL - oil, driveshaft

1шт.

D29534

GEARS - set of drive and driven

1шт.

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

D29531

SHAFT - idler gear

1шт.

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY - Woodruff, driven gear

1шт.

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

Internal drive gear #7, 1/8" x 3/4", HT

1шт.

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

External drive gear #9, 3/16" x 3/4", HT

1шт.

D27331

RING

SNAP RING - driven gear

2шт.

D29530

PLATE - gear

1шт.

MT2041S

BEARING

- ball, drive shaft

1шт.

D29536

SHAFT - drive, pump

1шт.

D29535

PIN - dowel

2шт.

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

92-5

LOCK WASHER,5/16"

6шт.

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

FHMS - 10 - 24 NF x 5/8"

3шт.

14218

WASHER

WASHER - shim

1шт.

14217

RING

SNAP RING - bearing retaining, drive shaft

1шт.

D28965

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

"O" RING - seal, pilot plate

1шт.
