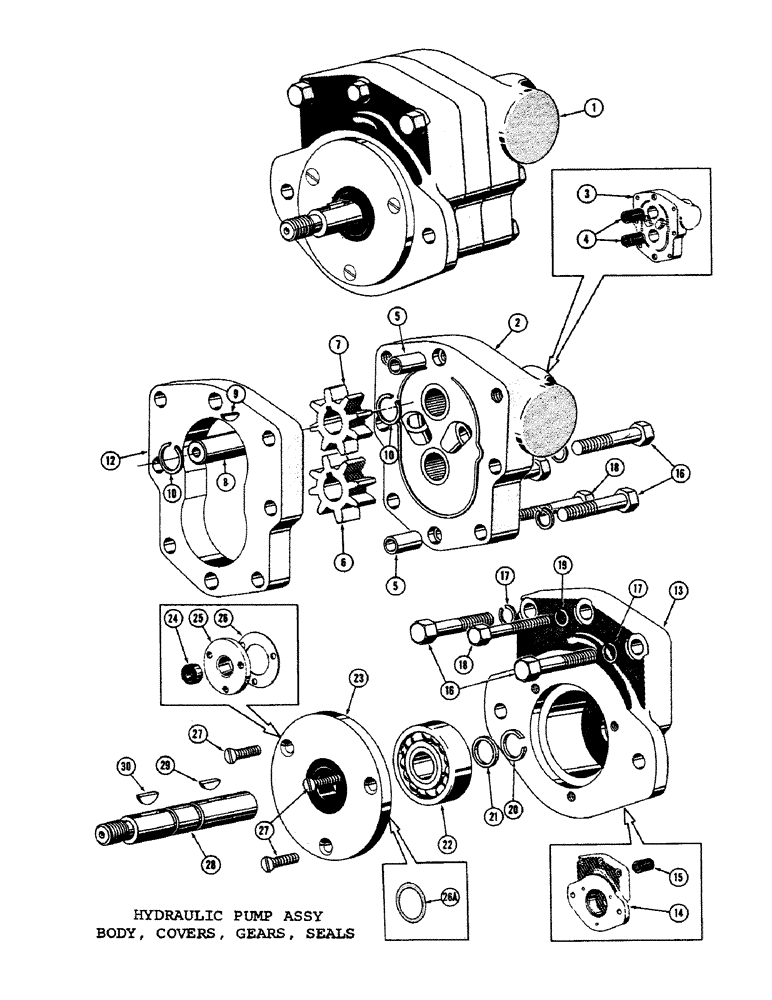

Запчасти Case 1000C (320) - HYDRAULIC PUMP ASSEMBLY, BODY, COVERS, GEARS, SHAFT, SEALS (07) - HYDRAULIC SYSTEM

1

32655

PUMP ASS'Y. - hydraulic

1шт.

2

74567

COVER ASS'Y. - pump

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

4

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

5

33203

BRACKET

PIN - dowel

2шт.

5448

ELECTRICAL GAUGE

KIT - gear (Matched set)

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

8

33195

SHAFT - idler

1шт.

9

34455

HOOK

KEY - Woodruff

1шт.

10

14217

RING

- gear retaining

2шт.

11

RESERVED

1шт.

12

33198

WASHER

PLATE - gear

1шт.

13

74566

BODY

ASS'Y. - pump

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

15

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

16

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - pump

6шт.

17

92-5

LOCK WASHER,5/16"

6шт.

18

13-423

HHCS - pump

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

14217

RING

- retaining

1шт.

21

14218

WASHER

WASHER - shim

1шт.

22

MT2041S

BEARING

- ball

1шт.

23

74570

PLATE ASS'Y. - pilot

1шт.

24

35679

ARM

SEAL - oil

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - pilot

1шт.

26

14221

GASKET

- pilot plate (Used on early model pumps)

1шт.

26a

35680

CAP

GASKET - pilot plate (Used on late model pumps)

1шт.

27

34447

X

FHMS - pump

3шт.

28

35677

SHAFT - pump drive

1шт.

29

33202

KEY - Woodruff

1шт.

30

48777

X

KEY - Woodruff

1шт.
