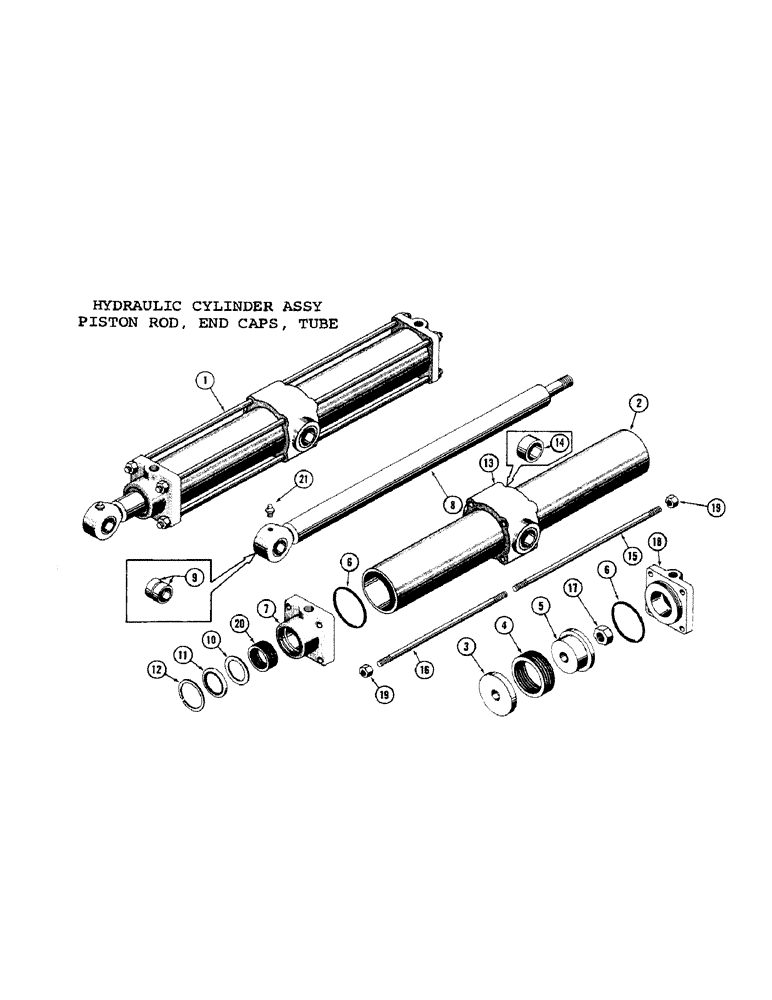

Запчасти Case 1000C (318) - HYDRAULIC CYLINDER ASSEMBLY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

1

R16710

CYLINDER ASS'Y. - hydraulic

1шт.

2

R16706

TUBE - hydraulic cylinder

1шт.

3

31661

WASHER

- retainer

1шт.

4

31662

PACKING

- piston

1шт.

5

R14106

BLOCK ASSY.

BLOCK - piston

1шт.

6

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

7

R16709

CAP - cylinder end

1шт.

8

R17194

END YOKE & PISTON ROD ASS'Y.

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

9

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

10

70740

WASHER

SPACER - retainer

1шт.

11

17583

WIPER SEAL

- wiper

1шт.

12

70742

WASHER

2.50", Int, #250

1шт.

13

R17195

TRUNNION ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

TRUNNION - cylinder

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

15

R16708

ROD - tie, long

4шт.

16

R16707

ROD - tie, short

4шт.

17

344800A1

CRANK

NUT - lock (3/4-16 NF), WASHER - 1/2 in

1шт.

18

36999

CAP COVER

CAP - cylinder end

1шт.

19

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock

8шт.

20

17577

PACKING

- rod

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

1шт.

D30138

KIT

PACKING KIT

1шт.
