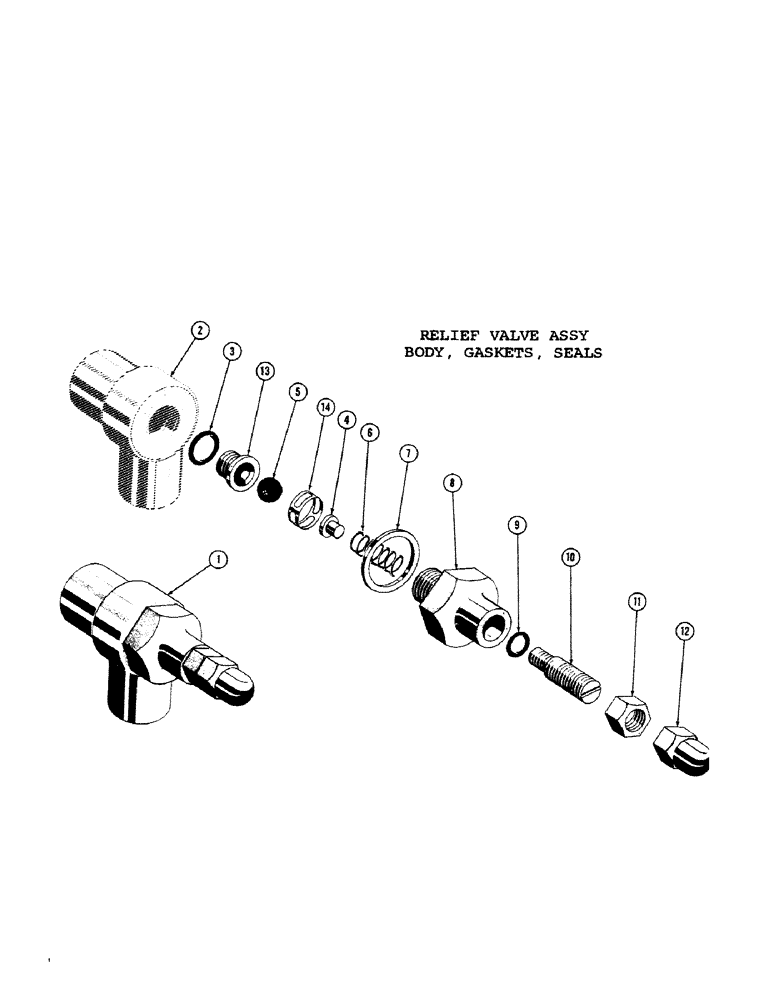

Запчасти Case 1000C (318[1]) - RELIEF VALVE ASSEMBLY, BODY, GASKETS, SEALS (07) - HYDRAULIC SYSTEM

1

R17539

RELIEF VALVE ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

3

D23928

O-RING

1шт.

4

CAS34120

BUSHING

SEAT - spring

1шт.

5

211-1016

BALL,12.7mm OD, Gr 24

1шт.

6

34114

VALVE, PRESSURE RELI

SPRING - elief valve

1шт.

7

34115

GASKET

- body cap

1шт.

8

34113

BODY

CAP - hex, body

1шт.

9

34112

CLIP

O-Ring

1шт.

10

34110

ADJUSTMENT SCREW

- adjusting

1шт.

11

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex jam

1шт.

12

34109

NUT - acorn

1шт.

13

D24406

SEAT

- valve

1шт.

14

D24389

COLLAR - jam

1шт.
