Запчасти Case 1000C (312) - HYDRAULIC CYLINDER ASSEMBLY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

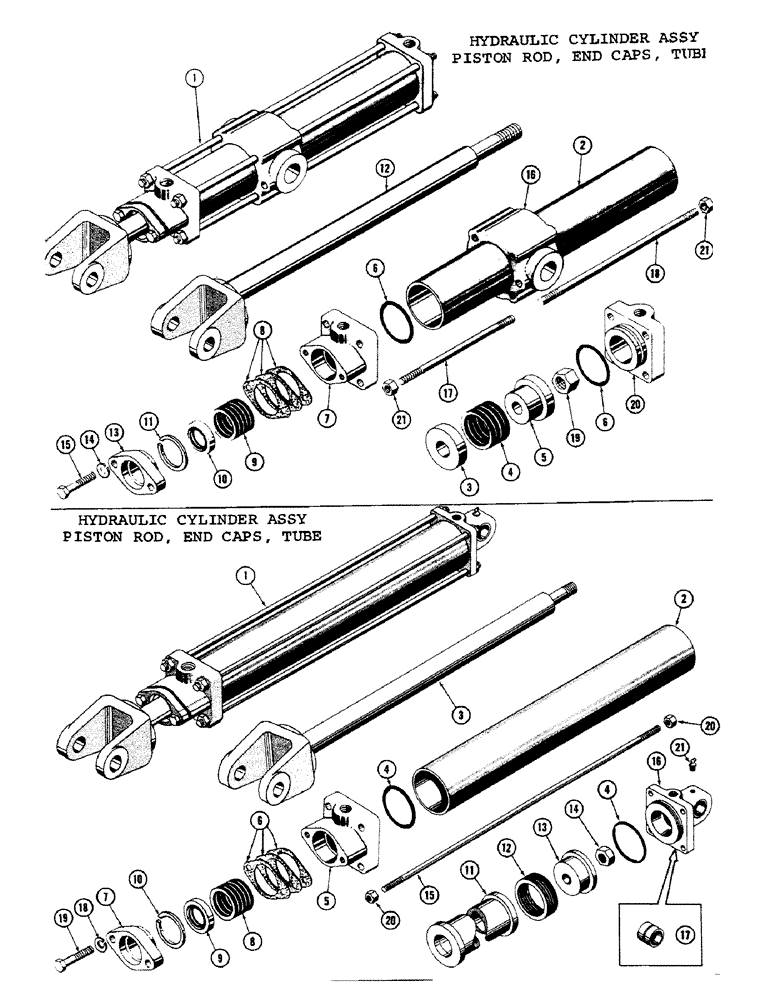

Схема запчастей Case 1000C - (312) - HYDRAULIC CYLINDER ASSEMBLY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

70743

CYLINDER ASS'Y. - R.H. hydraulic

1шт.

70744

CYLINDER ASS'Y. - L.H. hydraulic

1шт.

2

70365

1 LIT CAN PAINT

TUBE - hydraulic cylinder

1шт.

3

NLS

NO LONGER SERVICED

WASHER - retainer

1шт.

4

17578

PACKING

- piston

1шт.

5

R14107

BLOCK - piston

1шт.

6

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

7

70356

CAP - end

1шт.

8

NLS

NO LONGER SERVICED

SHIM - packing retainer

8шт.

9

30568

PACKING

- rod

1шт.

10

70363

WIPER SEAL

- wiper

1шт.

11

70742

WASHER

2.50", Int, #250

1шт.

12

70354

ROD & CLEVIS ASS'Y. - piston

1шт.

13

70366

RETAINER - packing

1шт.

14

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70366 mt'g.) (45110) Hex, 1/2"-13 x 2", G5

2шт.

16

70331

TRUNNION - cylinder

1шт.

17

70362

ROD - short tie

4шт.

18

70361

ROD - long tie

4шт.

19

R12336

LOCK NUT

- lock (1-14 NF)

1шт.

20

70351

END - cylinder

1шт.

21

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF)

8шт.

D30141

KIT

PACKING KIT

1шт.

1

70449

CYLINDER ASS'Y. - hydraulic

1шт.

2

70680

TUBE - hydraulic cylinder

1шт.

3

70448

DRAWBAR

ROD & CLEVIS ASS'Y. - piston

1шт.

4

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

5

70356

CAP - end

1шт.

6

NLS

NO LONGER SERVICED

SHIM - packing retainer

8шт.

7

70366

RETAINER - packing

1шт.

8

30568

PACKING

- rod

1шт.

9

70363

WIPER SEAL

- wiper

1шт.

10

70742

WASHER

2.50", Int, #250

1шт.

11

70446

PISTON ASS'Y

1шт.

12

17578

PACKING

- piston

1шт.

13

R14107

BLOCK - piston

1шт.

14

R12336

LOCK NUT

- lock (1-14 NF)

1шт.

15

71896

ROD - tie

4шт.

16

73236

WASHER

END ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

17

71897

BUSHING

2шт.

18

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70366 mt'g.) (45110) Hex, 1/2"-13 x 2", G5

2шт.

20

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF)

8шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING 45 degree grease, 1/8 NP

1шт.

D30141

KIT

PACKING KIT

1шт.

Выбрано товаров: 46
