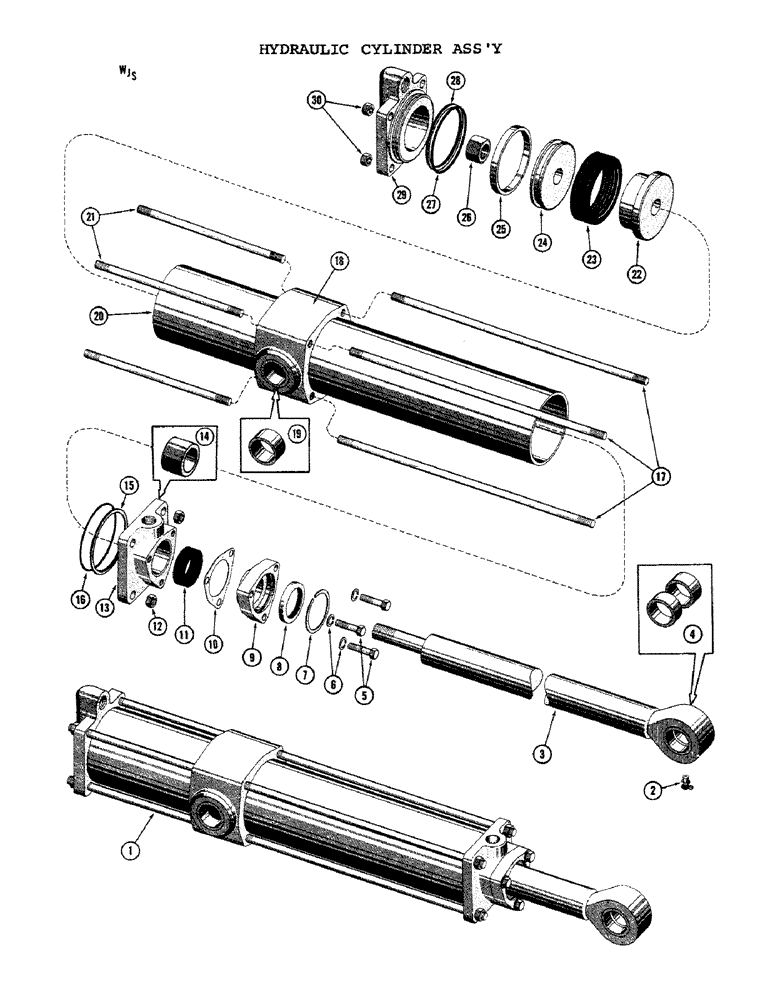

Запчасти Case 1000C (306) - HYDRAULIC CYLINDER ASSEMBLY (07) - HYDRAULIC SYSTEM

1

R13565

CYLINDER ASSY.

CYLINDER ASS'Y. - hydraulic

2шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

74961

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

4

70466

BUSHING

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(72833 mt'g.) Hex, 1/2"-13 x 2", G5

3шт.

6

92-8

LOCK WASHER,1/2"

3шт.

7

72892

SNAP RING,3.25", Int, #325

Ring, Snap, 3.25", Int, #325

1шт.

8

72893

WIPER SEAL

- wiper

1шт.

9

72833

GLAND - packing

1шт.

10

72894

GASKET

SHIM

1шт.

11

31662

PACKING

- rod

1шт.

12

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF)

4шт.

13

NSS

NOT SOLD SEPARAT

CAP ASS'Y. - cylinder (Used up to 10-3-59) (Order (1) R14871 & (4) R14971 for service)

1шт.

R14871

CYLINDER END CAP

CAP ASS'Y - cylinder (Used from 10-3-59)

1шт.

NSS

NOT SOLD SEPARAT

CAP - cylinder

1шт.

14

R11211

BUSHING

1шт.

15

R13073

X

RING - backup

1шт.

16

R12803

O-RING

SEAL - "O" ring

1шт.

17

R14971

ROD - tie, long

4шт.

18

74960

TRUNNION ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

TRUNNION

1шт.

19

72903

BUSHING

2шт.

20

72901

TUBE - hydraulic cylinder 5.5" ID, 5.99" OD, 34.041" Length

1шт.

21

71064

SHAFT

ROD - tie, short

4шт.

22

R14111

BLOCK

- piston

1шт.

23

70578

X

PACKING - piston

1шт.

24

70586

WASHER - retainer

1шт.

25

70579

RING

- wear

1шт.

26

48074

NUT

- lock (1-1/4-12 NF)

1шт.

27

R12803

O-RING

SEAL - "O" ring

1шт.

28

R13073

X

RING - backup

1шт.

29

NSSS

END - cylinder (Used up to 10-3-59) (Order (1) R14869 & (4) 71064 for service)

1шт.

R14869

END - cylinder (Used from 10-3-59)

1шт.

30

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8-18 NF)

4шт.

D30149

CYLINDER

PACKING KIT

1шт.
