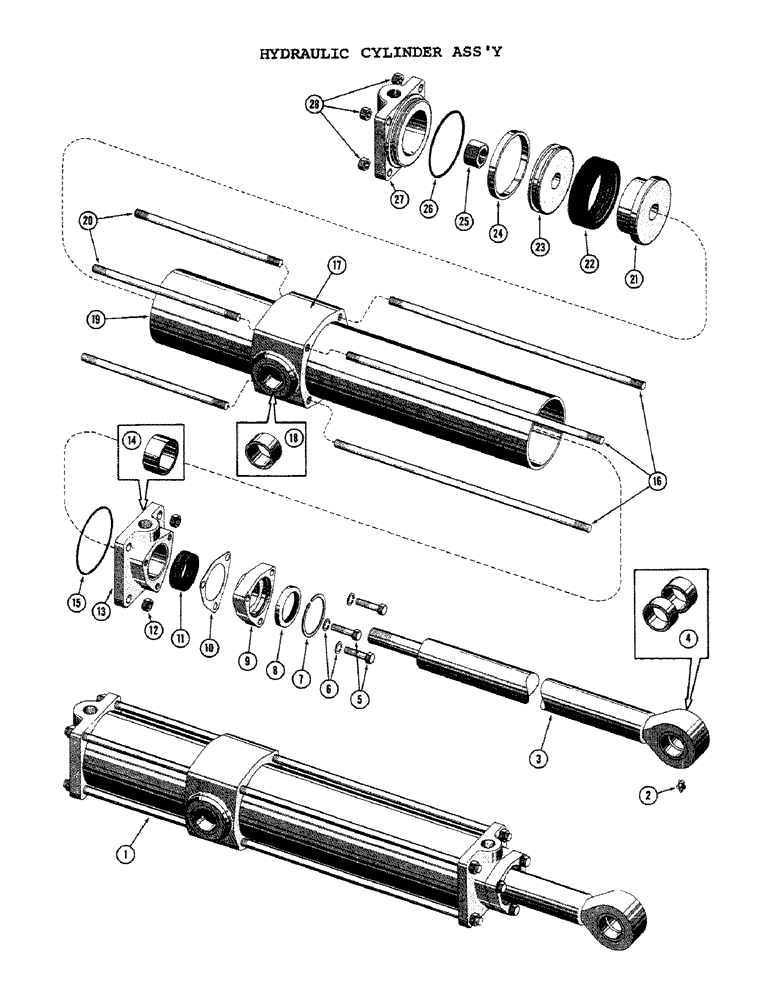

Запчасти Case 1000C (304) - HYDRAULIC CYLINDER ASSEMBLY (07) - HYDRAULIC SYSTEM

1

72891

CYLINDER ASS'Y - hydraulic

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

3

74961

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

4

70466

BUSHING

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(72833 mtg.) Hex, 1/2"-13 x 2", G5

3шт.

6

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

7

72892

SNAP RING,3.25", Int, #325

Ring, Snap, 3.25", Int, #325

1шт.

8

72893

WIPER SEAL

- wiper

1шт.

9

72833

GLAND - packing

1шт.

10

72894

GASKET

SHIM

1шт.

11

31662

PACKING

- rod

1шт.

12

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF)

4шт.

13

R11223

CAP ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

CAP - cylinder

1шт.

14

R11211

BUSHING

1шт.

15

R12803

O-RING

SEAL -"O" ring

1шт.

16

72896

VALVE SEAT

ROD - tie, long

4шт.

17

74960

TRUNNION ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

TRUNNION

1шт.

18

72903

BUSHING

2шт.

19

72901

TUBE - hydraulic cylinder 5.5" ID, 5.99" OD, 34.041" Length

1шт.

20

R13625

ROD - tie short

4шт.

21

70585

BLOCK - piston

1шт.

22

70578

X

PACKING - piston

1шт.

23

70586

WASHER - retainer

1шт.

24

70579

RING

- wear

1шт.

25

48074

NUT

- lock (1-1/4-12 NF)

1шт.

26

R12803

O-RING

SEAL - "O" ring

1шт.

27

NSS

NOT SOLD SEPARAT

END - cylinder (Order kit #R2571 for service)

1шт.

28

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8-18 NF)

4шт.

D30149

CYLINDER

PACKING KIT

1шт.
