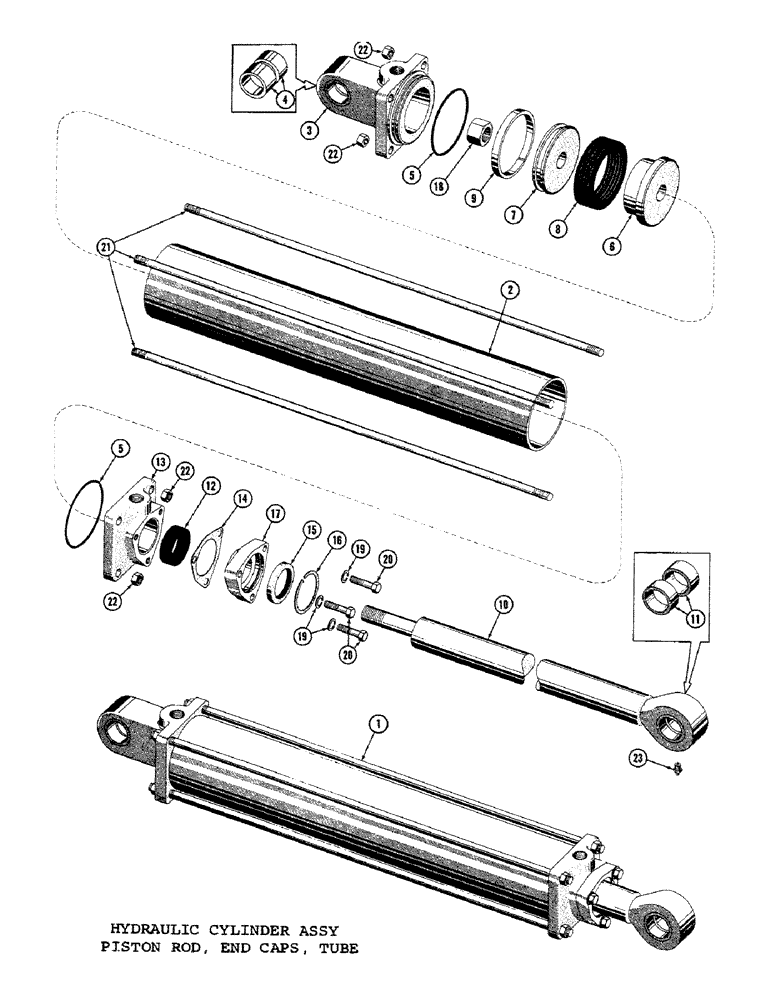

Запчасти Case 1000C (302) - HYDRAULIC CYLINDER ASSEMBLY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

1

70587

CYLINDER ASS'Y. - R.H. hydraulic

1шт.

70588

CYLINDER ASS'Y. - L.H. hydraulic

1шт.

2

70580

TUBE - hyd. cylinder

1шт.

3

74233

END - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

4

70466

BUSHING

2шт.

5

R12803

O-RING

SEAL - "O" ring

2шт.

6

R14111

BLOCK

- piston

1шт.

7

70586

WASHER - retainer

1шт.

8

70578

X

PACKING - piston

1шт.

9

70579

RING

- wear

1шт.

10

74234

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y.

1шт.

11

70466

BUSHING

2шт.

12

17597

PACKING

- rod

1шт.

13

70589

CAP - cylinder

1шт.

14

70468

SHIM

8шт.

15

70459

WIPER SEAL

- wiper

1шт.

16

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

17

70458

GASKET KIT

GLAND - packing

1шт.

18

48074

NUT

- lock (1-1/4-12 NF)

1шт.

19

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 mt'g.) (45110) Hex, 1/2"-13 x 2", G5

3шт.

21

31524

ROD - tie

4шт.

22

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF)

8шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

2шт.

D30148

PACKING KIT

1шт.
