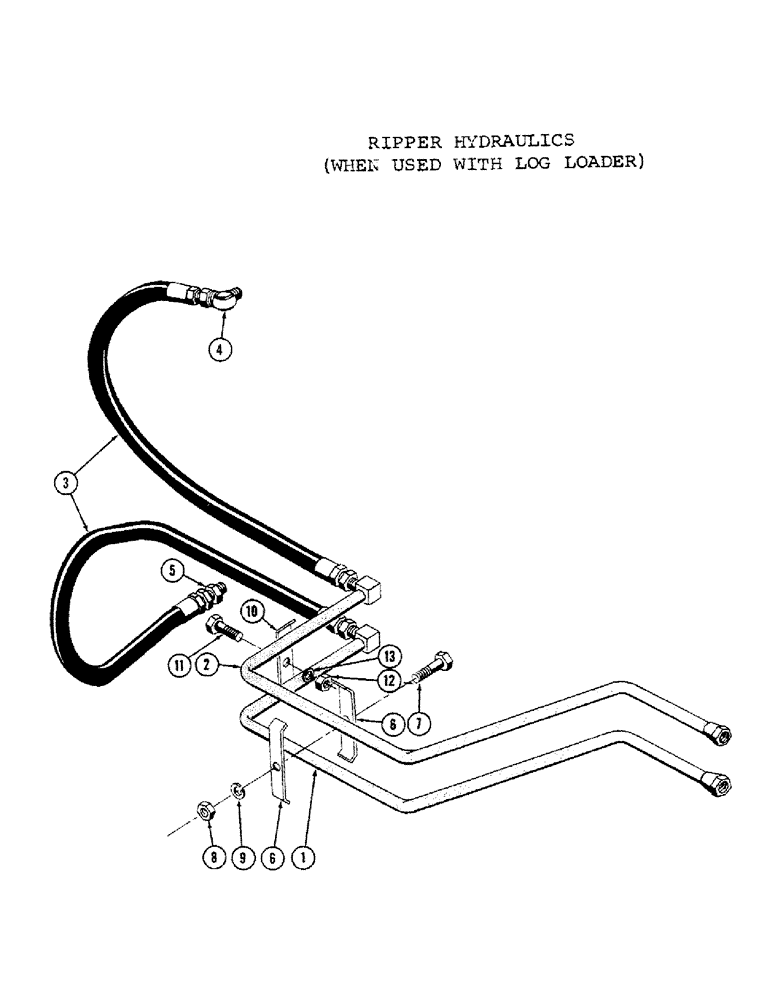

Запчасти Case 1000C (282) - RIPPER HYDRAULICS, WHEN USED WITH LOG LOADER (07) - HYDRAULIC SYSTEM

1

R15551

TUBE ASS'Y.

1шт.

2

R15547

TUBE ASS'Y.

1шт.

3

19207

HOSE ASSY.

HOSE ASS'Y.

2шт.

4

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees, 5/8 tube to 3/4 male pipe

1шт.

5

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - 5/3 tube to 1/2 male pipe

1шт.

6

R16916

PLATE - clamp, side

2шт.

7

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 x 2 long

1шт.

8

25-115

NUT,5/16"-24, G5

- hex 5/16"-24

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

R16916

PLATE - clamp rear

1шт.

11

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 x 1-1/2 long

1шт.

12

25-115

NUT,5/16"-24, G5

- hex 5/16"-24

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.
