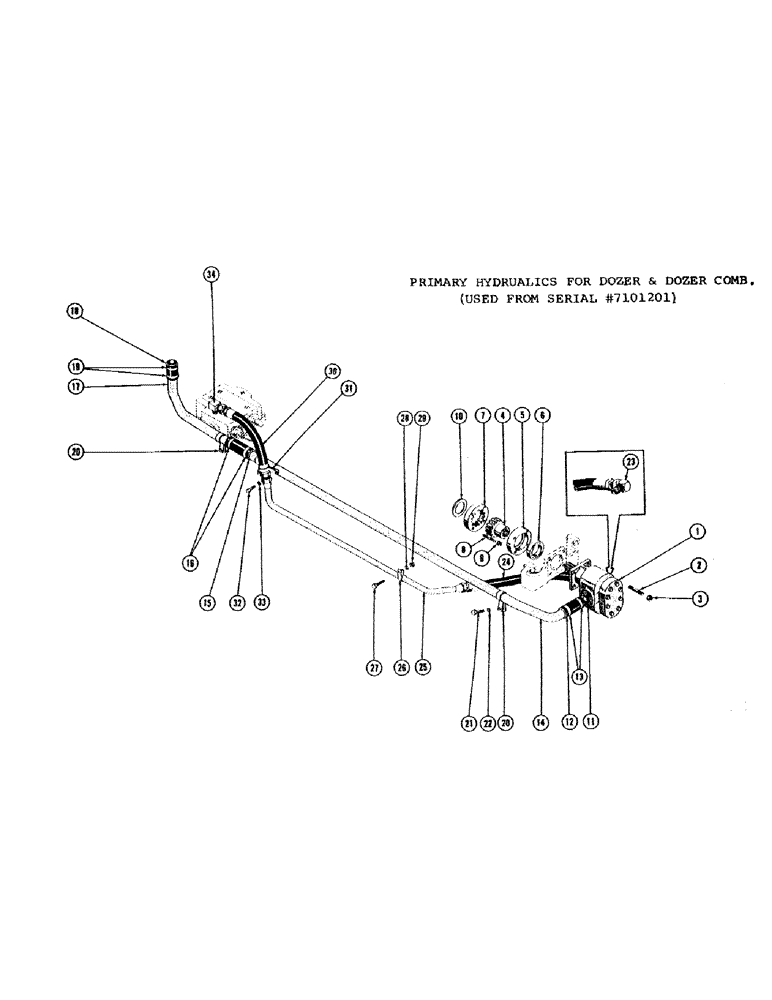

Запчасти Case 1000C (264) - PRIMARY HYDRAULICS FOR DOZER AND DOZER COMBINES, USED FROM SERIAL NUMBER 7101201 (07) - HYDRAULIC SYSTEM

1

R12658

PUMP ASS'Y. - hydraulic (See Figure 326 for breakdown)

1шт.

2

46522

SLEEVE

STUD - 1/2 - 20 NF x 2-1/8 (R12658 mtg.)

4шт.

3

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

4шт.

4

R13927

QUICK MALE COUPLING

COUPLING - male

1шт.

5

72991

RETAINER - seal

1шт.

6

40659

- oil

1шт.

7

R13928

COUPLING

- female

1шт.

8

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 7/16 - 20 NF x 2-5/8 (72991 & 73694 mtg.)

4шт.

9

131-367

LOCK NUT

NUT - lock (7/16 - 20 NF)

4шт.

10

R10830

WASHER

- special

1шт.

11

R14324

STEM - straight barb hose

1шт.

12

R14178

HOSE

1шт.

13

49763

X

CLAMP - hose

2шт.

14

R14176

TUBE ASS'Y

1шт.

15

R14178

HOSE

1шт.

16

49763

X

CLAMP - hose

2шт.

17

R14177

TUBE - suction line

1шт.

18

R14169

HOSE

1шт.

19

49763

X

CLAMP - hose

2шт.

20

49773

CLAMP

- tube

3шт.

21

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (49773 mtg.) (45707)

3шт.

22

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

23

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 1" JIC x 3/4 NPT

1шт.

24

70568

HOSE ASS'Y

1шт.

25

R13714

TUBE ASS'Y.

1шт.

26

R14325

CLAMP - tube

1шт.

27

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4 - 28 NF x 7/8

1шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

1шт.

29

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF)

1шт.

30

R14485

HOSE ASS'Y.

1шт.

31

R14057

CLAMP

- hose (70568 mtg.)

1шт.

32

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (14057 mtg.)

1шт.

33

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

34

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 1" JIC x 3/4 NPT

1шт.
