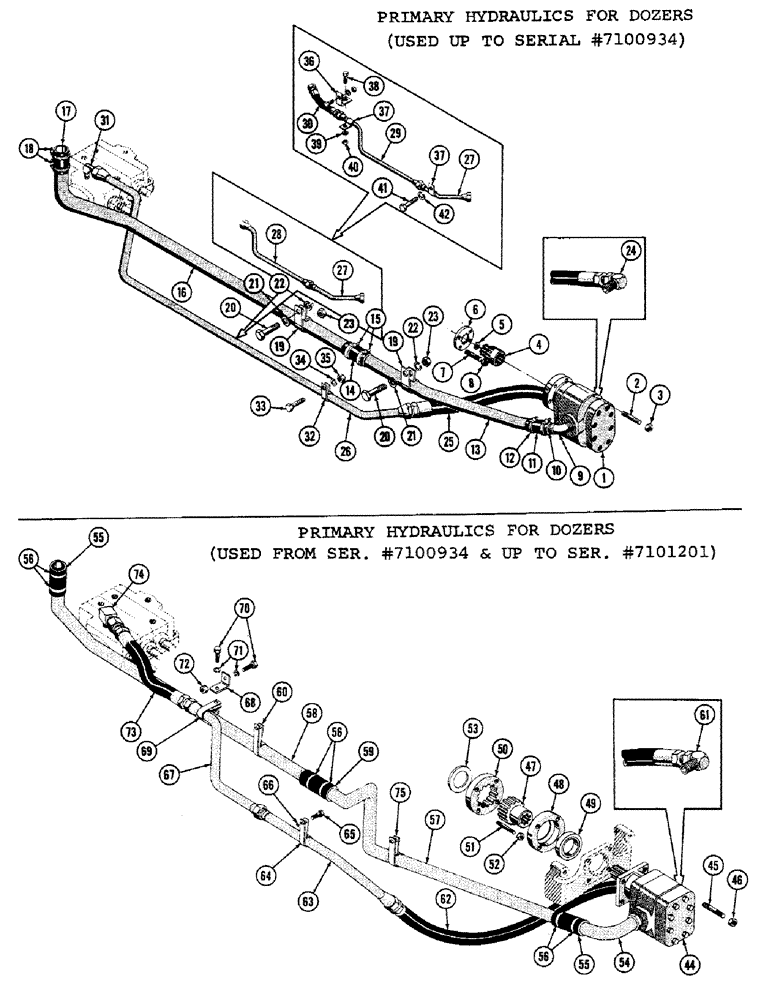

Запчасти Case 1000C (260) - PRIMARY HYDRAULICS FOR DOZER AND DOZER COMBINES, USED UP TO SERIAL NUMBER 7100934 (07) - HYDRAULIC SYSTEM

1

NSS

NOT SOLD SEPARAT

PUMP ASS'Y. - hydraulic (Used up to ser. #7100020) (See Figure 322 for breakdown) (Order #73346)

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASS'Y. - hydraulic (Used from ser. #7100020 and up to ser. #7100220) (See Figure 324 for breakdown) (Order #73346 for ser.)

1шт.

73346

PUMP ASS'Y. - hydraulic (Used from ser. #7100020) (See Figure 324 breakdown)

1шт.

2

46513

ROD

STUD - 3/8-24 NF x 2 (Pump mtg.)

6шт.

3

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

6шт.

4

70120

COUPLING - male

1шт.

5

49480

RING

- snap

1шт.

6

R13930

COUPLING - female

1шт.

7

46512

ROLLER BEARING

STUD - 7/16-20 NF x 1-3/4 (70543 mtg.)

4шт.

8

131-367

LOCK NUT

NUT - lock (7/16-20 NF) (11943)

4шт.

9

221-407

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- 45 degree street, 1-1/4 NP (41691)

1шт.

10

71374

YOKE

NIPPLE - special

1шт.

11

R14169

HOSE

- low pressure

1шт.

12

49763

X

CALMP - hose

2шт.

13

71327

TUBE - pump to tank, front

1шт.

14

R14178

HOSE - low pressure

1шт.

15

49763

X

CLAMP - hose

1шт.

16

70576

TUBE - pump to tank, rear

1шт.

17

R14169

HOSE

- low pressure

1шт.

18

49763

X

CLAMP - hose

2шт.

19

49773

CLAMP

- tube

2шт.

20

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2-20 NF x 1-1/4 (45707)

2шт.

21

195-33

WASHER,1/2"

- plain (48428)

2шт.

22

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

23

25-118

NUT,1/2"-20, G5

- regular SF hex. (1/2-20 NF) (48104)

2шт.

24

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC - 1" NP (50119)

1шт.

25

70568

HOSE ASS'Y. -, Serial Range: pump-valve

1шт.

26

72149

TUBE ASS'Y. - pump to valve (Used up to ser. #7100250)

1шт.

27

74507

TUBE ASS'Y. (Used from serial #7100250)

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. (Used from serial #7100250 up to serial #7100836) (Order kit #R2516 for service)

1шт.

29

R12722

TUBE ASS'Y. (Used from serial #7100836)

1шт.

30

R13206

HOSE ASS'Y. (Used from serial #7100836)

1шт.

31

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 1" JIC - 3/4 NP

1шт.

32

49840

CLAMP

- tube (Used up to ser. #7100836)

1шт.

33

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (Used up to ser. #7100836) (45605)

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used up to S/N 7100836) (48444) 1/4"

1шт.

35

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (Used up to ser. #7100836) (48100)

1шт.

36

71534

BRACKET - (Used from ser. #7100836)

1шт.

37

R13049

CLAMP - hose (Used from ser. #7100836)

2шт.

38

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Used from S/N 7100836) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

39

92-5

LOCK WASHER,5/16"

(Used from S/N 7100836) 5/16"

2шт.

40

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24) (Used from ser. #7100836)

2шт.

41

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (R13049 mtg.) (Used from ser. #7100836)

1шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used from S/N 7100836) 1/4"

1шт.

43

71535

SPACER

BRACKET - tube clamp (Used up to ser. #7100836) (Not shown)

1шт.

44

R12536

PUMP ASS'Y - hydraulic (Used from ser. #71009340) (See Figure 328 for breakdown), used from s/n 7100934, Serial Range: up-7101201

1шт.

45

46522

SLEEVE

STUD - 1/2 - 20 NF x 1/2-13 NC x 2-1/8, used from s/n 7100934, Serial Range: up-7101201

4шт.

46

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF), used from s/n 7100934 up to 7101201

4шт.

47

R13927

QUICK MALE COUPLING

COUPLING - male, used from s/n 7100934, Serial Range: up-7101201

1шт.

48

72991

RETAINER - seal, used from s/n 7100934, Serial Range: up-7101201

1шт.

49

40659

- oil, used from s/n 7100934, Serial Range: up-7101201

1шт.

50

R13928

COUPLING

-female, used from s/n 7100934, Serial Range: up-7101201

1шт.

51

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 7/16 - 20 NF x 7/16 - 14 NC x 2-5/8, used from s/n 7100934, Serial Range: up-7101201

4шт.

52

131-367

LOCK NUT

NUT - lock (7/16 - 20 NF) (11934), used from s/n 7100934, Serial Range: up-7101201

4шт.

53

R10830

WASHER

- special, used from s/n 7100934, Serial Range: up-7101201

1шт.

54

R11863

ELBOW ASS'Y. - pump, used from s/n 7100934, Serial Range: up-7101201

1шт.

55

R14178

HOSE, used from s/n 7100934, Serial Range: up-7101201

2шт.

56

49763

X

CLAMP - hose, used from s/n 7100934, Serial Range: up-7101201

6шт.

57

R11218

TUBE - front, used from s/n 7100934, Serial Range: up-7101201

1шт.

58

R11293

TUBE - rear, used from s/n 7100934, Serial Range: up-7101201

1шт.

59

R14169

HOSE

used from s/n 7100934, Serial Range: up-7101201

2шт.

60

49773

CLAMP

used from s/n 7100934, Serial Range: up-7101201

1шт.

61

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC - 1" NP (50119), used from s/n 7100934 up to 7101201

1шт.

62

70568

HOSE ASS'Y. - pump to valve, used from s/n 7100934, Serial Range: up-7101201

1шт.

63

74507

TUBE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

64

R13049

CLAMP - tube, used from s/n 7100934, Serial Range: up-7101201

1шт.

65

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4 - 20 NF x 7/8, used from s/n 7100934 up to 7101201

1шт.

66

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444), Used from S/N 7100934 up to 7101201 1/4"

1шт.

67

R12722

TUBE ASS'Y, used from s/n 7100934, Serial Range: up-7101201

1шт.

68

71534

BRACKET, used from s/n 7100934, Serial Range: up-7101201

1шт.

69

R13049

CLAMP - tube, used from s/n 7100934, Serial Range: up-7101201

1шт.

70

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Used from S/N 7100934 up to 7101201) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

71

92-5

LOCK WASHER,5/16"

(48445), Used from S/N 7100934 up to 7101201 5/16"

2шт.

72

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), used from s/n 7100934 up to 7101201

2шт.

73

R13206

HOSE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

74

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 1" JIC x 3/4 NPT, used from s/n 7100934 up to 7101201

1шт.

75

R11860

CLAMP

used from s/n 7100934, Serial Range: up-7101201

1шт.
