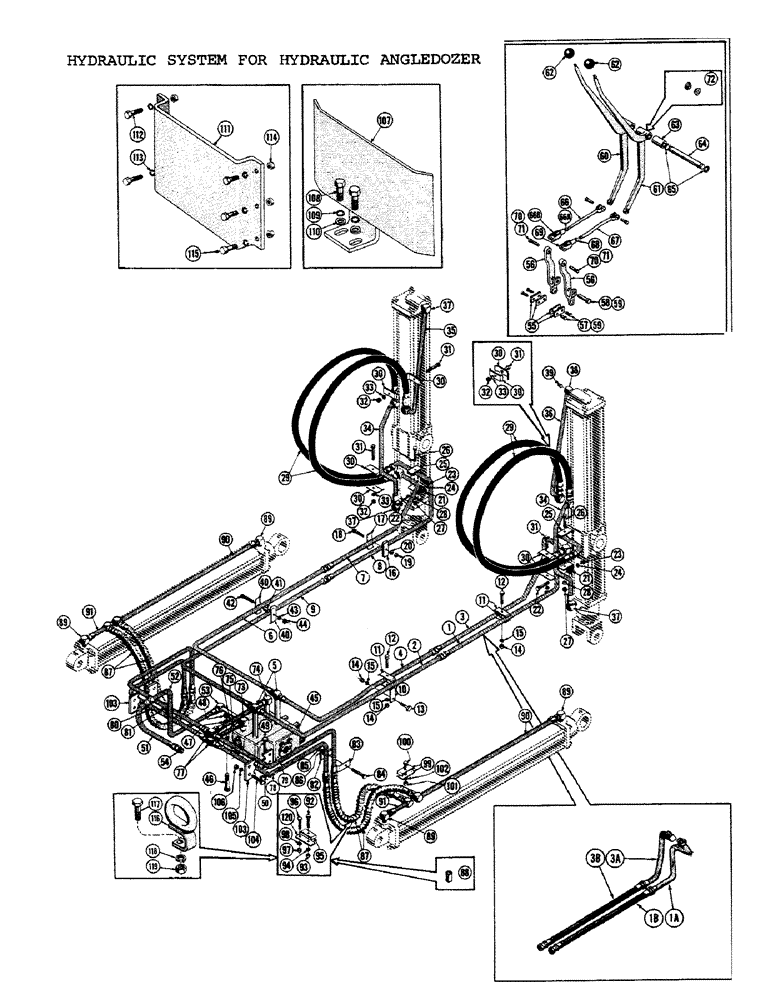

Запчасти Case 1000C (254) - HYDRAULIC SYSTEM FOR HYDRAULIC ANGLEDOZER, DOZER HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. (Used up to 7-1-59) (Order (1) R16762 & (1) 35968 for service)

1шт.

1a

R16762

TUBE ASS'Y. - (Used from 7-1-59)

1шт.

1b

35968

STRAP

HOSE ASS'Y. - (Used from 7-1-59)

1шт.

2

71549

TUBE ASS'Y. - (Used up to serial #7101201)

1шт.

R13505

TUBE ASS'Y. - (Used from serial #7101201)

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. - (Used up to 7-1-59) (Order (1) R16764 & (1) 35968 for service)

1шт.

3a

R16764

TUBE ASS'Y. - (Used from 7-1-59)

1шт.

3b

35968

STRAP

HOSE ASS'Y. - (Used from 7-1-59)

1шт.

4

71555

ARM

TUBE ASS'Y. - (Used up to serial #7101201)

1шт.

R13506

TUBE ASS'Y. - (Used from serial #7101201)

1шт.

5

72119

TEE - special

2шт.

6

72519

TUBE ASS'Y.

1шт.

R13507

TUBE ASS'Y.

1шт.

7

71565

TUBE ASS'Y.

1шт.

8

71563

TUBE ASS'Y.

1шт.

9

72295

EXHAUST MANIFOLD

TUBE ASS'Y. (Used up to serial #7101201)

1шт.

R13508

TUBE ASS'Y. (Used from serial #7101201)

1шт.

10

71534

BRACKET - tube clamp

1шт.

11

32978

PLATE ASSY.

PLATE - clamp

3шт.

12

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2

2шт.

13

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1

1шт.

14

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

3шт.

15

92-5

LOCK WASHER,5/16"

3шт.

16

71603

SPACER

1шт.

17

31665

COLLAR CLAMP

PLATE - clamp

1шт.

18

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

19

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

71573

BRACKET - support

2шт.

22

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

2шт.

23

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

32978

PLATE ASSY.

PLATE - clamp

2шт.

26

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2

2шт.

27

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

35582

HOSE

ASS'Y.

4шт.

30

31665

COLLAR CLAMP

PLATE - clamp

8шт.

31

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2

4шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

71571

BAND,16.875" Length

TUBE ASS'Y.

2шт.

35

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

TUBE ASS'Y. - LH

1шт.

36

71569

TUBE ASS'Y. - RH

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP

3шт.

38

R14845

ELBOW - special (Order with (1) 221-12 for models, Serial Range: prior-4-10-59)

1шт.

39

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. hd. 1/8 NP (Used up to 4-10-59)

1шт.

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, ext. sq. hd. 1/4 NP (Used from 4-10-59)

1шт.

40

38363

PLATE - clamp

2шт.

41

35335

SPACER

1шт.

42

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-24 NF x 2

1шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-24 NF)

1шт.

45

NSS

NOT SOLD SEPARAT

VALVE ASS'Y. - hydraulic (Used up to 12-28-58) (See Figure 338 for breakdown) (Order R14049 for service), lever & valve system

1шт.

R14049

VALVE ASS'Y. - hydraulic (Used from 12-28-58) (See Figure 340 for breakdown), lever & valve system

1шт.

46

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS 1/2-20 NF x 2-1/2, lever & valve system

2шт.

47

92-8

LOCK WASHER,1/2"

lever & valve system 1/2"

2шт.

48

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF), lever & valve system

2шт.

49

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-20 NF x 2, lever & valve system

1шт.

50

92-8

LOCK WASHER,1/2"

(Not shown), lever & valve system 1/2"

1шт.

51

R11754

TUBE ASS'Y. - control valve to tank, lever & valve system

1шт.

52

R11752

TUBE ASS'Y. - control valve to tank (Used up to serial #7101201), lever & valve system

1шт.

R13749

TUBE ASS'Y. - control valve to tank (Use from serial #7101201), lever & valve system

1шт.

53

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree extra long male, 1" JIC to 1" NP, lever & valve system

1шт.

54

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP, lever & valve system

1шт.

55

71316

X

LINK - control valve, lever system

4шт.

56

71301

LEVER - hydraulic valve, lever system

2шт.

57

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever & valve system 3/8" x 1.060"

4шт.

58

71303

PIN - yoke, lever & valve system

2шт.

59

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Lever & valve system 3/32" x 5/8"

6шт.

60

NSS

NOT SOLD SEPARAT

LEVER ASS'Y. - hydraulic control (Used up to serial #7100844) (Order (1) 74889 & (2) 74898 for service), valve system

1шт.

74889

LEVER ASS'Y. - hydraulic control (Used from serial #7100844 and up to serial #7101201), valve system

1шт.

R13757

LEVER ASS'Y. - hydraulic control (Used from serial #7101201), valve system

1шт.

61

NSS

NOT SOLD SEPARAT

LEVER ASS'Y. - hydraulic control (Used up to serial #7100844) (Order (1) 74890 & (2) 74898 for service),valve system

1шт.

74890

LEVER ASS'Y. - hydraulic control (Used from serial #7101201), valve system

1шт.

R13753

LEVER ASS'Y. - hydraulic control (Used from ser. #7101201), valve system

1шт.

62

CAS31375

KNOB

BALL - grip, lever & valve system

2шт.

63

NSS

NOT SOLD SEPARAT

SPACER - lever (Used up to ser. #7100844) (Order (1) 74849 & (2) 74898 for service), lever & valve system

1шт.

64

70148

SHAFT - hydraulic control lever, valve system

1шт.

65

W-10757-S

RING - snap, lever & valve system

2шт.

71308

STUD

ROD ASS'Y. - hydraulic control (Used up to serial #7101201), lever & valve system

1шт.

R13751

ROD ASS'Y. - hydraulic control (Used from serial #7101201), lever & valve system

1шт.

66

70182

ROD (Used up to serial #7101201), lever & valve system

1шт.

R13752

ROD

(Used from serial #7101201), lever & valve system

1шт.

66a

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), lever & valve system

1шт.

66b

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, lever & valve system

1шт.

71307

ROD ASS'Y. - hydraulic control (Used up to ser. #7101201), lever & valve system

1шт.

R13748

ROD ASS'Y. - hydraulic control (Used from ser. #7101201), lever & valve system

1шт.

67

71306

STUD

ROD (Used up to serial #7101201), lever & valve system

1шт.

R13747

ROD (Used from serial #7101201), lever & valve system

1шт.

68

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), lever & valve system

2шт.

69

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, lever & valve system

2шт.

70

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever & valve system 3/8" x 1.060"

4шт.

71

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Lever & valve system 3/32" x 5/8"

4шт.

72

74898

BUSHING - nylon (Used from serial #7100844), lever & valve system

6шт.

73

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP, angling cylinder hyd system

1шт.

74

218-503

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree extra long male, 3/4 JIC to 3/4 NP, angling cylinder hyd system

1шт.

75

71541

TUBE ASS'Y. - valve to manifold (Used up to ser. #7101201), angling cylinder hyd system

1шт.

R14011

TUBE ASS'Y. - valve to manifold (Used from ser. #7101201), angling cylinder hyd system

1шт.

76

71545

TUBE ASS'Y. - valve to manifold (Used up to ser. #7101201), angling cylinder hyd system

1шт.

R14003

TUBE ASS'Y. - valve to manifold (Used from ser. #7101201), angling cylinder hyd system

1шт.

77

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- special, angling cylinder hyd system

2шт.

78

71471

COVER

TUBE ASS'Y. - manifold RH. lower (Used up to ser. #7101201), angling cylinder hyd system

1шт.

R14015

TUBE ASS'Y. - manifold RH. lower (Used from ser. #7101201), angling cylinder hyd system

1шт.

79

71473

TUBE ASS'Y. - manifold RH. upper (Used up to ser. #7101201), angling cylinder hyd system

1шт.

R14017

TUBE ASS'Y. - manifold RH. upper (Used from ser. #7101201), angling cylinder hyd system

1шт.

R14401

TUBE ASS'Y. - manifold RH. upper (Used on pull-behind comb. only), angling cylinder hyd system

1шт.

80

71475

SCREW

TUBE ASS'Y. - manifold LH. lower (Used up to ser. #7101201), angling cylinder hyd system

1шт.

R14013

TUBE ASS'Y. - manifold LH. lower (Used from ser. #7101201), angling cylinder hyd system

1шт.

R14397

TUBE ASS'Y. - manifold LH. lower (Used on pull-behind comb. only), angling cylinder hyd system

1шт.

81

71477

NUT

TUBE ASS'Y. - manifold LH. upper (Used up to ser. #7101201), angling cylinder hyd system

1шт.

R14021

TUBE ASS'Y. - manifold LH. upper (Used from ser. #7101201), angling cylinder hyd system

1шт.

R14399

TUBE ASS'Y. - manifold LH. upper (Used on pull-behind comb. only), angling cylinder hyd system

1шт.

82

74104

SPACER - tube clamp, angling cylinder hyd system

2шт.

83

31665

COLLAR CLAMP

PLATE - clamp (Manifold mt'g.), angling cylinder hyd system

2шт.

84

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS 5/16-24 NF x 2-1/4 (31665 mt'g.), angling cylinder hyd system

2шт.

85

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), angling cylinder hyd system

2шт.

86

92-5

LOCK WASHER,5/16"

angling cylinder hyd system 5/16"

2шт.

87

72211

HOSE

ASS'Y. - manifold to cylinders, angling cylinder hyd system

4шт.

88

R11383

SPACER (Used up to serial #7101201), angling cylinder hyd system

2шт.

89

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP, angling cylinder hyd system

4шт.

90

71547

TUBE ASS'Y. - to cylinder front ports, angling cylinder hyd system

2шт.

91

71543

TUBE ASS'Y. - to cylinder rear ports, angling cylinder hyd system

2шт.

92

14-560

HHCS 5/16-24 NF x 3-1/4 (70724 mt'g.), angling cylinder hyd system

2шт.

93

131-365

LOCK NUT

NUT - lock 5/16-24 NF, angling cylinder hyd system

2шт.

94

195-21

WASHER,5/16"

plain, Angling cylinder hyd system 5/16"

2шт.

95

70724

PLATE - clamp (72211 mt'g.) (Used up to serial #7101201), angling cylinder hyd system

4шт.

96

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS 5/16-24 NF x 2-1/4 (31665 mt'g.) (Used up to serial #7101201), angling cylinder hyd system

2шт.

97

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used up to serial #7101201), angling cylinder hyd system

2шт.

98

92-5

LOCK WASHER,5/16"

(Used up to S/N 7101201), angling cylinder hyd system 5/16"

2шт.

99

31665

COLLAR CLAMP

PLATE - clamp (72211 mt'g.), angling cylinder hyd system

4шт.

100

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mt'g.), angling cylinder hyd system

2шт.

101

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), angling cylinder hyd system

2шт.

102

92-5

LOCK WASHER,5/16"

angling cylinder hyd system 5/16"

2шт.

103

72541

RING

BLOCK - clamp (Used up to serial #7101201), angling cylinder hyd system

4шт.

R13988

BLOCK - clamping (Used from serial #7101201), angling cylinder hyd system

4шт.

104

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(72541 mtg.), Angling cylinder hyd system Hex, 5/16"-24 x 1 1/4", G5

8шт.

105

195-21

WASHER,5/16"

plain, Angling cylinder hyd system 5/16"

8шт.

106

131-365

LOCK NUT

NUT - lock (5/16-24 NF), angling cylinder hyd system

8шт.

107

72878

JET

GUARD ASS'Y. (Used from ser. #7100820 and up to ser. #7101201), angling cylinder hyd system

2шт.

108

14-1632

BOLT,Hex, 1" - 14 x 2", Gr 5, Full Thd

HHCS 1-14 NF x 2 (72878 mt'g.) (Used from serial #7100820 and up to serial #7101201), angling cylinder hyd system

4шт.

109

92-16

LOCK WASHER,1"

WASHER, LOCK, (Used from S/N 7100820 and up to S/N 7101201), Angling cylinder hyd system 1"

4шт.

110

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (Used from serial #7100820 and up to ser. #7101201), angling cylinder hyd system

4шт.

111

R13987

GUARD ASS'Y. (Used from serial #7101201), angling cylinder hyd system

2шт.

112

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8-24 NF x 1-1/4 (R13987 mt'g.) (Used from serial #7101201), angling cylinder hyd system

4шт.

113

92-6

LOCK WASHER,3/8"

(Used from S/N 7101201), angling cylinder hyd system 3/8"

8шт.

114

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (Used from ser. #7101201), angling cylinder hyd system

8шт.

115

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8-24 NF x 1-1/2 (R13987 mt'g.) (Used from ser. #7101201), angling cylinder hyd system

4шт.

116

R13999

GUIDE - hose (Used from serial #7101201), angling cylinder hyd system

2шт.

117

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (R13999 mt'g.), angling cylinder hyd system

2шт.

118

195-21

WASHER,5/16"

plain, Angling cylinder hyd system 5/16"

2шт.

119

131-365

LOCK NUT

NUT - reg. SF hex (5/16-24 NF), angling cylinder hyd system

2шт.

120

72210

SUPPORT - hose clamp (Used up to ser. #7101201), angling cylinder hyd system

2шт.
