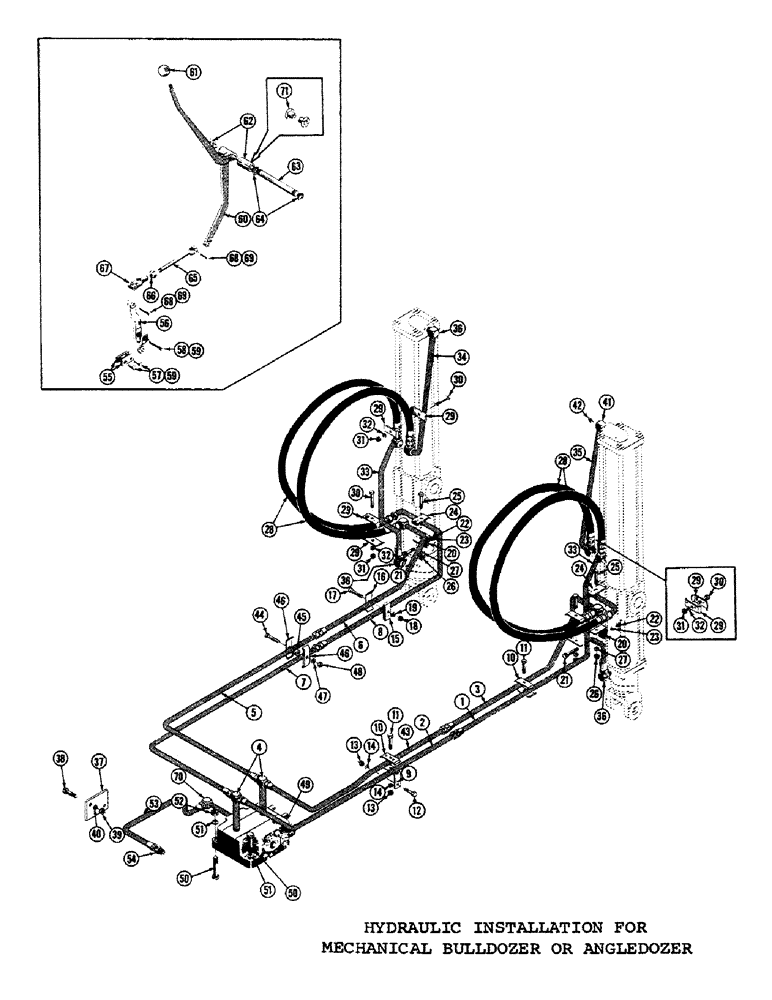

Запчасти Case 1000C (234) - HYDRAULIC INSTALLATION FOR MECHANICAL BULLDOZER OR ANGLEDOZER, DOZER HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

71561

TOOL BOX

TUBE ASS'Y. - valve to RH lift cylinder

1шт.

2

71549

TUBE ASS'Y. - valve to RH lift cylinder

1шт.

3

71559

COIL

TUBE ASS'Y. - valve to RH lift cylinder

1шт.

4

72119

TEE - special

2шт.

5

72519

TUBE ASS'Y. - valve to LH lift cylinder

1шт.

6

71565

TUBE ASS'Y. - valve to LH lift cylinder

1шт.

7

72295

EXHAUST MANIFOLD

TUBE ASS'Y. - valve to LH lift cylinder

1шт.

8

71563

TUBE ASS'Y. - valve to LH lift cylinder

1шт.

9

71534

BRACKET

1шт.

10

32978

PLATE ASSY.

PLATE - clamp

3шт.

11

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32078 mt'g.) (45633)

2шт.

12

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (71534 mt'g.) (45631)

1шт.

13

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

3шт.

14

92-5

LOCK WASHER,5/16"

(48445) 5/16"

3шт.

15

71603

SPACER

1шт.

16

31665

COLLAR CLAMP

PLATE - clamp

1шт.

17

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(17603 & 31665 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

1шт.

18

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

19

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

20

71573

BRACKET - support

2шт.

21

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(71573 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

2шт.

22

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

23

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

24

32978

PLATE ASSY.

PLATE - clamp

2шт.

25

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32978 mt'g.) (45633)

2шт.

26

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

27

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

28

35582

HOSE

ASS'Y. - valve to lift cylinder

4шт.

29

31665

COLLAR CLAMP

PLATE - clamp

8шт.

30

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mt'g.) (45635)

4шт.

31

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

32

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

33

71571

BAND,16.875" Length

TUBE ASS'Y. - valve to lift cylinder front ports

2шт.

34

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

TUBE ASS'Y. - valve to LH lift cylinder rear port

1шт.

35

71569

TUBE ASS'Y. - valve to RH lift cylinder rear ports

1шт.

36

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

3шт.

37

71567

PLATE - cover

2шт.

38

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71567 mt'g.) (45629) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

39

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

40

92-5

LOCK WASHER,5/16"

(48445 5/16"

4шт.

41

R14845

TEE - special (Order with 221-12 for models, Serial Range: prior-4-10-59)

1шт.

42

221-11

PLUG,Sq Hd, 1/8"-27

- ext. sq. hd. pipe, 1/8 NP (Used up to 4-10-59)

1шт.

221-12

PLUG,Sq Hd, 1/4"-18

- ext. sq. head pipe, 1/4 NP (Used from 4-10-50)

1шт.

43

71555

ARM

TUBE ASS'Y. - valve to RH lift cylinder

1шт.

44

14-843

HHCS 1/2-24 NF x 2 (45710)

1шт.

45

35335

SPACER

1шт.

46

38363

CLAMP - tube

2шт.

47

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

48

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.

49

71295

VALVE ASS'Y. - hyd. (See page #338 for breakdown), lever

1шт.

50

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS 1/2-20 NF x 2-1/2 (71295 mt'g.) (45712), lever & valve system

3шт.

51

92-8

LOCK WASHER,1/2"

(48448), lever & valve system 1/2"

3шт.

52

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104), lever & valve system

2шт.

53

71607

TUBE ASS'Y. - control valve to tank, lever & valve system

1шт.

54

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1 JIC to 1 NP (50029), lever & valve system

2шт.

55

71316

X

LINK - hydraulic valve, lever & valve system

2шт.

56

71301

LEVER - valve control

1шт.

57

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever & valve system 3/8" x 1.060"

2шт.

58

71303

PIN - yoke, lever & valve system

1шт.

59

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682), Lever & valve system 3/32" x 5/8"

3шт.

60

NSS

NOT SOLD SEPARAT

LEVER ASS'Y. - valve control (Used up to ser. #7100844) (Order (1) 74889 lever & (2) 74898 bushings)

1шт.

74889

LEVER ASS'Y. - valve control (Used from serial #7100844)

1шт.

61

31375

WASHER

BALL - grip, lever & valve system

1шт.

62

NSS

NOT SOLD SEPARAT

SPACER - lever (Used up to ser. #7100844) (Order (1) 74849 spacer & (2) 74898 bushings), valve system

2шт.

74849

SPACER - lever (Used from serial #7100844), valve system

2шт.

63

70148

SHAFT - hydraulic control lever, valve system

1шт.

64

W-10757-S

RING - snap, lever & valve system

2шт.

71308

STUD

ROD ASS'Y. - hydraulic control, lever & valve system

1шт.

65

70183

RING

ROD - hydraulic control, lever & valve system

1шт.

66

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever & valve system

1шт.

67

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever & valve system

1шт.

68

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever & valve system 3/8" x 1.060"

2шт.

69

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682), Lever & valve system 3/32" x 5/8"

2шт.

70

218-156

ELBOW - 90 degree extra long male, 1 JIC to 1 NP (50574), lever & valve system

1шт.

71

74898

BUSHING - nylon (Used from serial #7100844), lever & valve system

6шт.

62

NSS

NOT SOLD SEPARAT

SPACER - lever (Used up to ser. #7100844) (Order (1) 74849 spacer & (2) 74898 bushings), lever & valve system

2шт.
