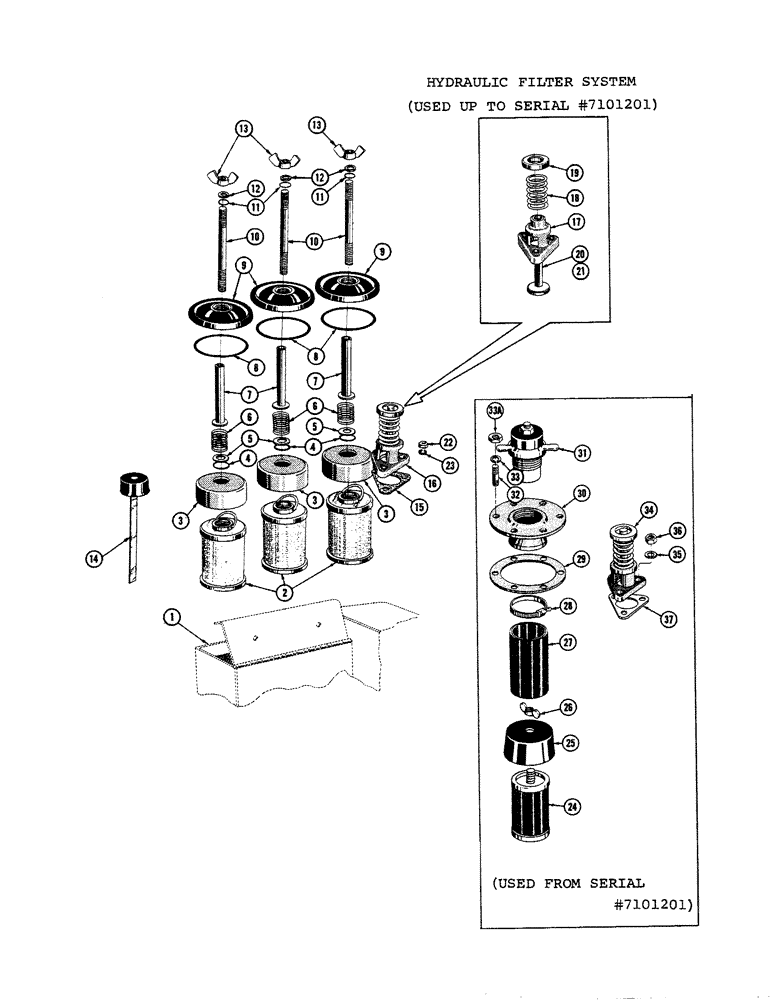

Запчасти Case 1000C (178) - HYDRAULIC FILTER SYSTEM, USED UP TO SERIAL NUMBER 7101201 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

TANK ASSY - hydraulic (See Figure 174, Ref. 12)

1шт.

2

51200336

FILTER, ELEMENT

ELEMENT, FILTER ASSY - hydraulic

3шт.

3

71895

SPARE PART Oil filter

3шт.

4

49398

SEAL

3шт.

5

48559

WASHER

Special

3шт.

6

70615

SPRING

3шт.

7

70605

SPARE PART & WASHER ASSY

3шт.

8

49405

SPARE PART SEAL

3шт.

9

73893

SPARE PART

COVER - oil filter

3шт.

10

70600

STUD - oil filter

3шт.

11

49404

SEAL - "O" ring

3шт.

12

195-25

WASHER,3/8"

3шт.

13

129-410

WING NUT,3/8"-16

3шт.

14

72066

BREATHER FILTER & GAUGE STICK ASSY

1шт.

15

71361

GASKET - relief valve

1шт.

16

71358

LOCK VALVE

ASSY - relief

1шт.

17

71356

STUD

SPARE PART HOUSING - relief valve

1шт.

18

70615

SPRING

Relief valve

1шт.

19

35426

WASHER - relief valve

1шт.

20

71360

VALVE ASSY - relief valve

1шт.

21

132-45

COTTER PIN,1/8" x 5/8"

1шт.

22

25-116

NUT,Hex, 3/8"-24, G5

3шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

R13605

FILTER, ENGINE OIL

FILTER, OIL CARTRIDGE - filter, used from S/N 7101201

1шт.

25

R13608

COVER - filter, used from S/N 7101201

1шт.

26

129-410

WING NUT,3/8"-16

Used from S/N 7101201

1шт.

27

R13607

SPARE PART Filter, used from S/N 7101201

1шт.

28

214-31

X

CLAMP - hose, used from S/N 7101201

1шт.

29

R14032

SPARE PART Used from S/N 7101201

1шт.

R14072

PLATE - hyd. tank cover (Std. tractor only), used from S/N 7101201

1шт.

30

R14159

FLANGE - breather mt'g. (Used with allied equipment), used from S/N 7101201

1шт.

31

R14031

SPARE PART VALVE - breather, used from S/N 7101201

1шт.

32

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

(R14072 mt'g.), used from S/N 7101201

6шт.

74261

SPARE PART (R14159 mt'g.) (Used from 1-17-59), used from S/N 7101201

6шт.

33

R14068

WASHER - fibre (Used up to 1-17-59), used from S/N 7101201

1шт.

92-8

LOCK WASHER,1/2"

(Used from 1-17-59), used from S/N 7101201

6шт.

33a

25-159

JAM NUT,Jam, 9/16"-18, G5

Reg. SF hex (1/2-20 NF) (Used from 1-17-59), used from S/N 7101201

6шт.

34

71358

LOCK VALVE

ASSY - relief (See ref. #16 for breakdown), used from S/N 7101201

1шт.

35

92-6

LOCK WASHER,3/8"

Used from S/N 7101201

3шт.

36

25-116

NUT,Hex, 3/8"-24, G5

Used from S/N 7101201

3шт.

37

71361

GASKET - relief valve, used from S/N 7101201

1шт.
