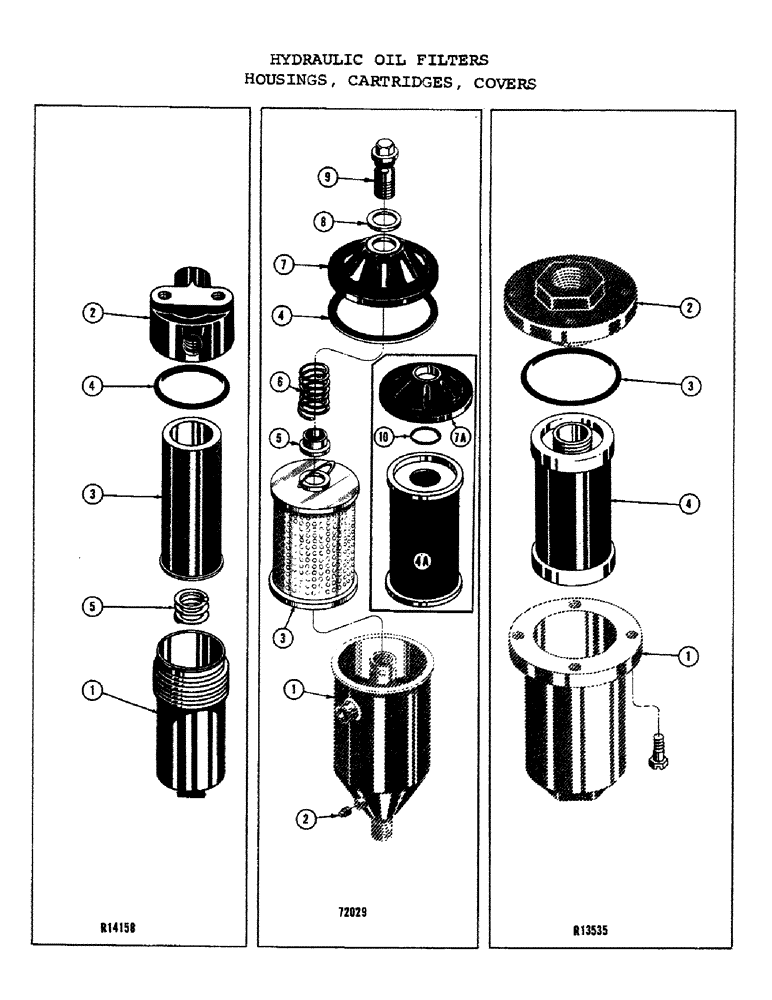

Запчасти Case 1000C (138) - HYDRAULIC OIL FILTERS, HOUSINGS, CARTRIDGES, COVERS (07) - HYDRAULIC SYSTEM

72029

FILTER

ASS'Y. - transmission oil (Used up to ser. #7101201)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - oil filter

1шт.

2

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, ext. sq. hd., 1/2 NP

1шт.

3

5134

SERVICE KIT

KIT - cartridge (Used up to ser. #7100770)

1шт.

NSS

NOT SOLD SEPARAT

CARTRIDGE - filter

1шт.

4

NLS

NO LONGER SERVICED

- cover

1шт.

4a

R11909

FILTER

SCREEN - filter (Used from ser. #7100770)

1шт.

5

35632

CUP - sealing

1шт.

6

R17536

SPRING

- oil filter

1шт.

7

35634

COVER - oil filter (Used up to 7-27-59)

1шт.

7a

R17534

COVER & RETAINER ASS'Y. - filter (Used from 7-27-59)

1шт.

8

35635

GASKET - cover bolt

1шт.

9

R17538

BOLT ASS'Y. - retainer (Relief valve)

1шт.

10

R17537

GASKET - "O" ring (Used from 7-27-59)

1шт.

R14158

FILTER ASS'Y. - hydraulic oil (Used from ser. #7101201)

1шт.

1

R15260

BODY - filter

1шт.

2

R15259

COVER - filter

1шт.

3

R14328

FILTER, ELEMENT

CARTRIDGE - filter

1шт.

4

R14326

O-RING

SEAL - "O" ring

1шт.

5

R14327

SPRING - filter

1шт.

R13535

FILTER ASS'Y. - hydraulic oil (Used from ser. #7101201)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - filter

1шт.

R2799

ELEMENT

KIT - filter cartridge

1шт.

3

R20438

SEAL - "O" ring

1шт.

4

R14482

X

CARTRIDGE - filter

1шт.
