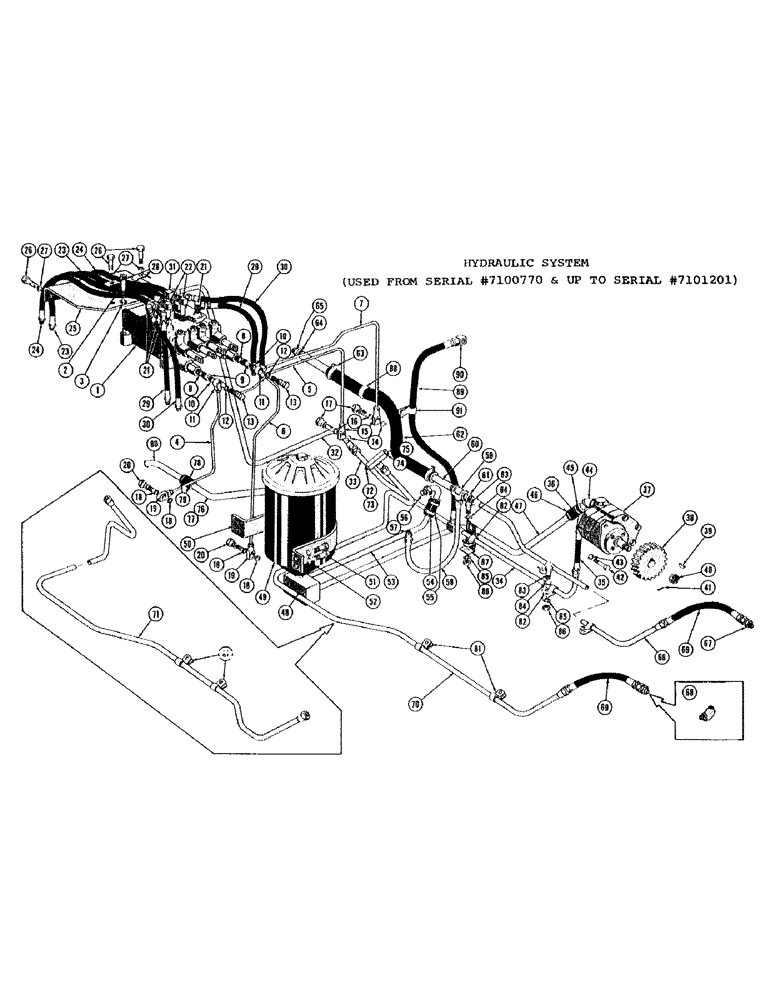

Запчасти Case 1000C (130) - HYDRAULIC SYSTEM, USED FROM SER. NO. 7100770 AND UP TO SER. NO. 7101201, HYDRAULIC BRAKE LINE SYSTEM (07) - HYDRAULIC SYSTEM

1

74907

VALVE ASS'Y. - hydraulic control (See Figure 334 for breakdown)

2шт.

2

62-632

SCREW - soc. hd. cap 3/8-24 NF x 2 (74907 mt'g.) (47552)

4шт.

3

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

4

72078

TUBE ASS'Y. - valve to RH brake 9.125" Length

1шт.

5

72076

TUBE ASS'Y. - valve to trans. RH brake shaft 9.437" Length

1шт.

6

72072

TUBE ASS'Y. - valve to LH brake

1шт.

7

72074

TUBE ASS'Y. - valve to trans. LH brake shaft 0.188" OD, 7.5", 4.875" Length

1шт.

8

49399

X

SEAL - "O" ring

2шт.

9

72125

ADAPTER

- brake tube

2шт.

10

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

11

51200243

FITTING

- brake line

2шт.

12

NLS

NO LONGER SERVICED

- inlet connection

2шт.

13

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake line fitting

2шт.

14

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

15

50861

FITTING

- 3/16 tube

2шт.

16

33260

GASKET

- inlet connection

2шт.

17

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake line fitting

2шт.

18

33257

SPACER

GASKET - copper, special

4шт.

19

33259

FITTING - brake

2шт.

20

33258

KNIFE

BOLT - brake fitting

2шт.

21

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (50106), trans. hyd system

6шт.

22

218-508

ELBOW - 90 degree extra long male, 3/8 JIC to 1/4 NP (50569), trans. hyd system

2шт.

23

73762

HOSE ASS'Y. - valve to trans. clutch, trans. hyd system

2шт.

24

73760

X

HOSE ASS'Y. - valve to trans. clutch, trans. hyd system

2шт.

25

73773

BRACKET - hose support, trans. hyd system

1шт.

26

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(73773 mt'g.) (45654), trans. hyd system Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

(48446), trans. hyd system 3/8"

4шт.

28

49836

CLAMP

- hose mt'g., trans. hyd system

4шт.

29

73758

COIL

HOSE ASS'Y. - valve to trans. clutch shaft, hyd system

2шт.

30

73756

HOSE ASS'Y. - valve to trans. clutch shaft, hyd system

2шт.

31

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571), trans. hyd system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

32

72208

TUBE ASS'Y. - valve to pump, trans. hyd system

1шт.

33

72132

TAPPET,0.625" Diameter, 8, 3.75" Length

TUBE ASS'Y. - valve to pump, trans. hyd system

1шт.

34

71783

SPARE PART,0.625" Diameter, 28.375" Length

TUBE ASS'Y. - valve to pump, trans. hyd system

1шт.

35

71768

HOSE ASS'Y. - valve to pump, trans. hyd system

1шт.

36

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 3/4 NP (50127), trans. hyd system

1шт.

37

32655

PUMP ASS'Y. - hydraulic (See Figure 320 for breakdown), trans. hyd system

1шт.

38

72762

REFLECTOR

GEAR - pump drive, trans. hyd system

1шт.

39

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Transmission hydraulic system #9, 3/16" x 3/4"

1шт.

40

129-267

X

NUT - slotted hex (5/8-18 NF) (48316), trans. hyd system

1шт.

41

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), (48688), trans. hyd system 3/32" x 1 1/2"

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(32655 mt'g.) (45056), Trans. hyd system Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

(48446), trans. hyd system 3/8"

2шт.

44

R11626

CONNECTOR, ELEC

ELBOW - special, trans. hyd system

1шт.

45

R11628

X

HOSE - low pressure, trans. hyd system

1шт.

46

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, trans. hyd system

2шт.

47

R11624

TUBE ASS'Y. - pump to oil filter, trans. hyd system

1шт.

48

R11623

MANIFOLD - oil filter, trans. hyd system

1шт.

49

NSS

NOT SOLD SEPARAT

FILTER ASS'Y. - hydraulic (See Figure 138 for breakdown) (Order (1) 72029 filter ass'y. and (1) R11909 screen for service), trans. system

1шт.

50

71848

OIL SEAL

BRACKET - filter mt'g., trans. hyd system

1шт.

51

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71848 mt'g.) (45708), trans. hyd system

4шт.

52

92-8

LOCK WASHER,1/2"

trans. hyd system 1/2"

4шт.

53

R11911

TUBE ASS'Y. - filter to torque coverter, trans. hyd system

1шт.

54

R12351

LARGE HOSE

HOSE - low pressure, trans. hyd system

1шт.

55

49766

AUGER

CLAMP - hose, trans. hyd system

2шт.

56

R11629

ELBOW - special, trans. hyd system

1шт.

57

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 3/4 NP (50038), trans. hyd system

1шт.

58

R14208

TUBE ASS'Y. - torque converter to tee, trans. hyd system

1шт.

59

221-425

FITTING,3/4" NPT

TEE - pipe, 3/4 NP (41584), trans. hyd system

1шт.

60

R10857

NIPPLE - sepcial, trans. hyd system

1шт.

61

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 3/4 NP (50038), trans. hyd system

1шт.

62

75031

HOSE - low pressure, trans. hyd system

1шт.

63

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, trans. hyd system

2шт.

64

75032

NIPPLE - special, trans. hyd system

1шт.

65

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, 1" NP to 3/4 NP (41644), trans. hyd system

1шт.

66

71777

BOLT

TUBE ASS'Y. - tee to sump, trans. hyd system

1шт.

67

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (Used up to serial #7100934) (50024), trans. hyd system

2шт.

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (Used from serial #7100934) (50024), trans. hyd system

1шт.

68

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8 JIC to 1/2 NP (Used from serial #7100934) (50144), trans. hyd system

1шт.

69

71775

SLEEVE

HOSE ASS'Y. - tee to sump, trans. hyd system

2шт.

70

71773

BALL BEARING

TUBE ASS'Y. - sump to torque converter (Used up to serial #7100594), trans. hyd system

1шт.

71

R11292

TUBE ASS'Y. - sump to torque converter (Used from serial #7100594), trans. hyd system

1шт.

72

R11726

TEE - torque converter, trans. hyd system

1шт.

73

R11652

PLUG - pipe, special, trans. hyd system

1шт.

74

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

trans. hyd system

1шт.

75

R11717

PLUG, trans. hyd system

1шт.

76

R11868

ELBOW - special, trans. hyd system

1шт.

77

R11621

TUBE ASS'Y. - filter to transmission, hyd system

1шт.

78

R11620

HOSE - low pressure, trans. hyd system

1шт.

79

49763

X

CLAMP - hose, trans. hyd system

2шт.

80

R11618

EXTENSION ASS'Y. - suction line, trans. hyd system

1шт.

81

49771

CLAMP

- tube (R11292 & 71777 mt'g.), trans. hyd system

4шт.

82

37874

X

CLAMP - tube (71783 mt'g.), trans. hyd system

2шт.

83

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (37874 mt'g.) (45631), trans. hyd system

2шт.

84

195-21

WASHER,5/16"

plain (48425), Trans. hyd system 5/16"

2шт.

85

92-5

LOCK WASHER,5/16"

(48445), trans. hyd system 5/16"

2шт.

86

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), trans. hyd system

2шт.

87

R12352

ANGLE - clamp mt'g., trans. hyd system

1шт.

88

49773

CLAMP

- hose (75031 mt'g.), trans. hyd system

1шт.

89

33727

HOSE

ASS'Y. - tee to pressure gauge, trans. hyd system

1шт.

90

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

- 90 degree female, 1/8 NP to 1/4 SAE, trans. hyd system

1шт.

91

49836

CLAMP

- hose (33727 mt'g.), trans. hyd system

1шт.
