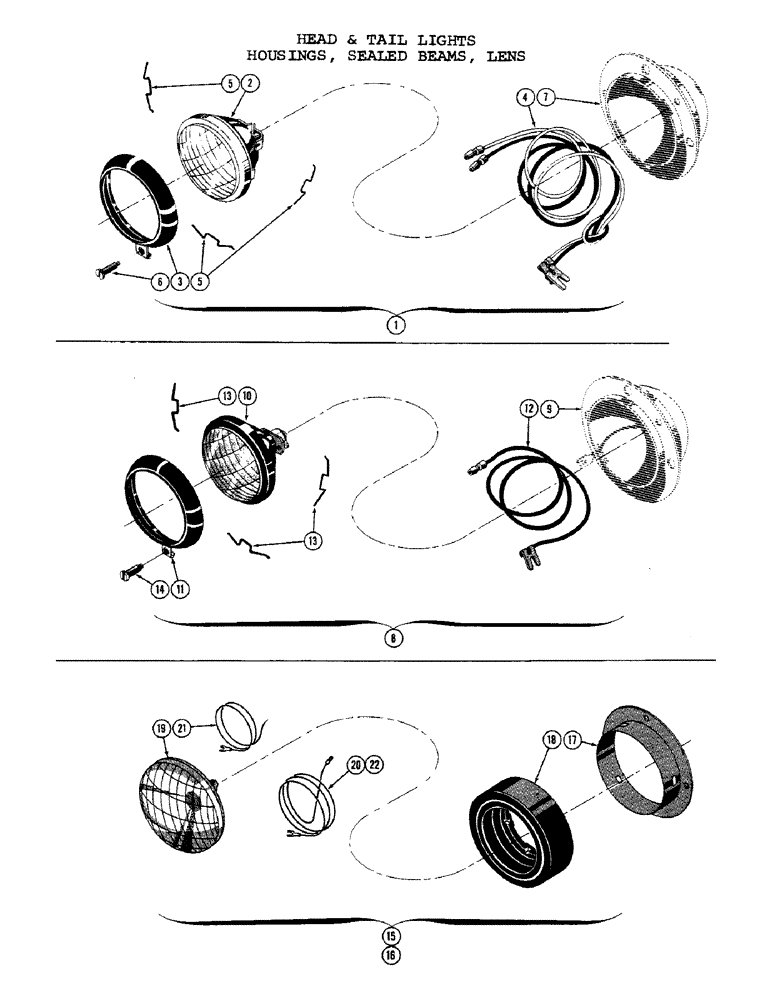

Запчасти Case 1000C (078) - HEAD AND TAIL LIGHTS, HOUSINGS, SEALED BEAMS, LENS (06) - ELECTRICAL SYSTEMS

1

72570

LIGHT ASS'Y. - tail (Used, Serial Range: up-7-24-59)

2шт.

2

R16790

X

UNIT ASS'Y. - 12 V sealed beam

1шт.

3

73765

DOOR ASS'Y. - tail light

1шт.

4

73766

ELECTRIC CABLE

WIRING ASS'Y. - tail light

1шт.

5

73767

GROUND CABLE

SPRING - unit retainer

3шт.

6

73768

SCREW - door retainer

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - tail light

1шт.

8

72343

LIGHT ASS'Y. - head (Used, Serial Range: up-7-24-59)

2шт.

9

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - head light

1шт.

10

R16790

X

UNIT ASS'Y. - 12 V sealed beam

1шт.

11

72772

DOOR ASS'Y. - head light

1шт.

12

72771

CUP

WIRE ASS'Y. - head light

1шт.

13

73767

GROUND CABLE

SPRING - unit retaining

3шт.

14

73768

SCREW - door retaining

1шт.

15

R17308

LAMP

LIGHT ASS'Y. - head (Used from 7-24-59)

1шт.

16

R17309

LAMP

LIGHT ASS'Y. - tail (Used from 7-24-59)

1шт.

17

R17306

FRAME

1шт.

18

A25213

RETAINER

(Replaces R16888)

1шт.

19

R16790

X

LAMP

1шт.

20

R17305

WIRE

1шт.

21

R17303

WIRE - head light only

1шт.

22

R17304

WIRE - tail light only

1шт.
