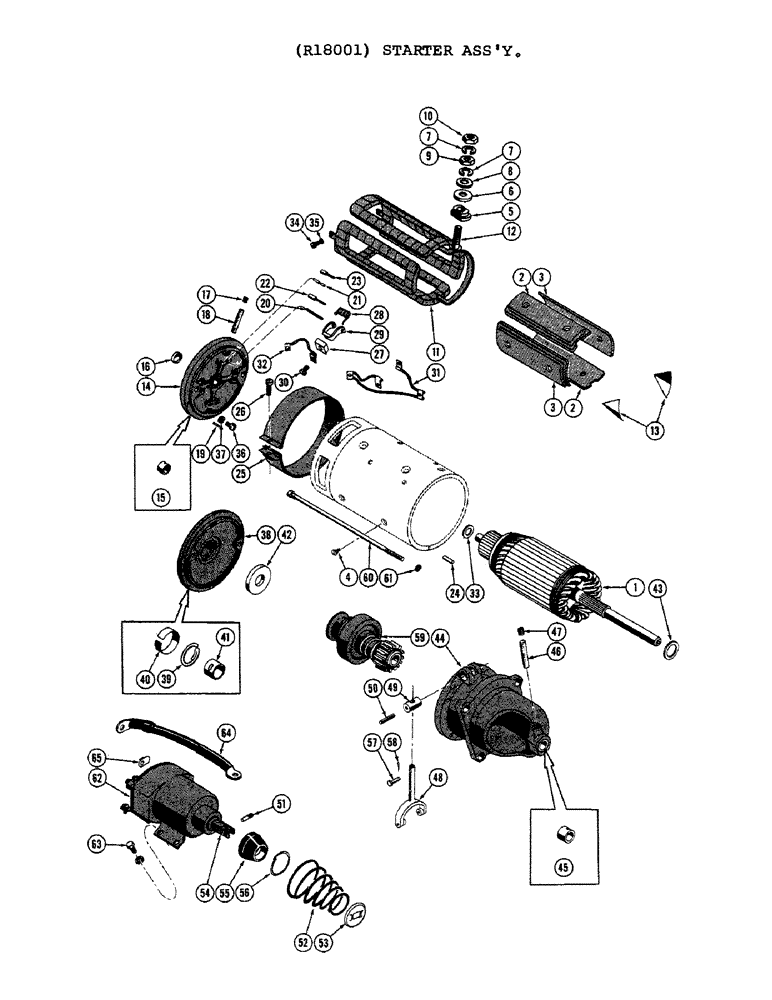

Запчасти Case 1000C (076) - R18001 STARTER ASSEMBLY (06) - ELECTRICAL SYSTEMS

R18001

STARTER ASS'Y.

1шт.

1

R15113

ARMATURE

1шт.

2

R15114

SHOE-POLE

2шт.

3

R15115

SHOE

-POLE

2шт.

4

R15009

SCREW - pole shoe

8шт.

5

R15010

BUSHING

- ins. terminal stud

1шт.

6

R15011

WASHER

- ins. terminal stud

1шт.

7

R15012

WASHER - lock, terminal stud

2шт.

8

R15013

WASHER

- plain, terminal stud

1шт.

9

R15014

NUT

- terminal stud (5/32 thick)

1шт.

10

R15015

X

NUT - terminal stud (1/4 thick)

1шт.

11

R15118

COIL ASS'Y. - field

1шт.

12

R15119

STUD - terminal

1шт.

13

R15018

X

INSULATION - field coil

2шт.

14

R15125

FRAME - commutator end

1шт.

15

R15020

BUSHING

- C.E.

1шт.

16

R15021

PLUG

- end.

1шт.

17

R15022

PLUG - pipe

1шт.

18

R15129

WICK

- C.E.

1шт.

19

R15095

PIN - dowel

1шт.

20

R15130

PIN - brush holder hinge

2шт.

21

R15131

PIN - brush holder stop

2шт.

22

R15132

PIN - brush holder hinge & ins.

2шт.

23

R15133

PIN - brush holder stop & ins.

2шт.

24

R15120

PIN - dowel, D.E.

1шт.

25

R15121

COVER - band

1шт.

26

R15097

SCREW - band cover

1шт.

27

R15134

BRUSH

4шт.

28

R15135

SPRING

- brush

4шт.

29

R15136

HOLDER - brush

4шт.

30

R15137

SCREW - brush attaching

4шт.

31

R15128

LEAD - brush jumper

1шт.

32

R15906

LEAD - ground

2шт.

33

R15139

WASHER

- space, C.E.

1шт.

34

R18194

SCREW - field lead attaching

2шт.

35

R15033

X

WASHER - lock

2шт.

36

R15907

SCREW - ground lead

2шт.

37

R15908

X

WASHER - lock

2шт.

38

R15140

BEARING - center

1шт.

39

R15142

WICK

- center bearing

1шт.

40

R15143

RETAINER - wick ring

1шт.

41

R15144

BUSHING

- center bearing

1шт.

42

R15145

DISC

WASHER - brake

1шт.

43

R15141

WASHER - space

1шт.

44

R15146

HOUSING - drive

1шт.

45

R15147

BUSHING - D.E.

1шт.

46

R15023

WICK

- oil, D.E.

1шт.

47

R15022

PLUG - pipe, D.E.

1шт.

48

R15148

LEVER ASS'Y. - shift

1шт.

49

R15149

SHAFT - shift lever

1шт.

50

R15150

PIN - dowel shift lever

1шт.

51

R15151

PIN - shift lever link spring retainer

1шт.

52

R17424

SPRING - shift lever link

1шт.

53

R15153

RETAINER - shift lever ling spring

1шт.

54

R15154

LINK - shift lever

1шт.

55

R17422

BOOT - shift lever

1шт.

56

R17423

CLAMP - boot

1шт.

57

R15155

PIN - shift lever

1шт.

58

R15059

PIN - cotter, shift lever pin

1шт.

59

R15156

DRIVE ASS'Y. - motor

1шт.

60

R15157

BOLT - thru

2шт.

61

R15052

WASHER - lock

2шт.

62

R15158

SWITCH - solenoid

1шт.

63

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.

64

R15160

CABLE ASS'Y.

1шт.

65

R15161

CONNECTOR, ELEC

CONNECTOR

1шт.

D29575

PLATE - solenoid switch terminal

1шт.

D29576

DISC - solenoid switch contact

1шт.

D29930

X

GASKET - solenoid switch plate

1шт.
