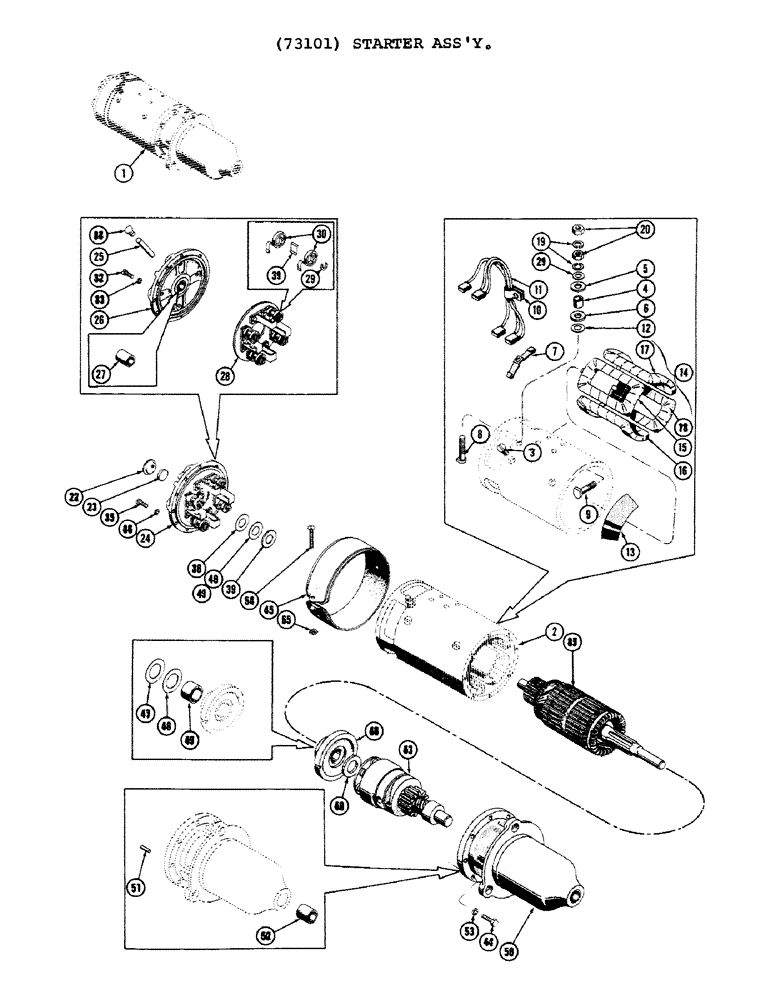

Запчасти Case 1000C (074) - 73101 STARTER ASSEMBLY (06) - ELECTRICAL SYSTEMS

1

73101

ENGINE FLYWHEEL

STARTER ASS'Y.

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME & FIELD ASS'Y.

1шт.

3

GK-38

SCREW - pole shoe

8шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - insulation terminal stud (Order Case p/n A40424)

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - plain terminal stud outer (Order Case p/n A40424)

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - insulation terminal stud (Order Case p/n A40424)

2шт.

7

NSS

NOT SOLD SEPARAT

CONNECTOR - terminal stud (Order Case p/n A40424)

1шт.

8

NSS

NOT SOLD SEPARAT

STUD - terminal (Order Case p/n A40424)

1шт.

9

NSS

NOT SOLD SEPARAT

STUD - terminal (Order Case p/n A40424)

1шт.

10

NSS

NOT SOLD SEPARAT

TERMINAL - brush (Order Case p/n A40424)

1шт.

11

MBD-1012S

BRUSH - set (Case p/n A25703)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal stud inner (Order Case p/n A40424)

1шт.

13

NSS

NOT SOLD SEPARAT

INSULATION - field connection (Order Case p/n A40424)

1шт.

14

MBD-3005S

FIELD COIL PACKAGE (Case p/n A25716)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

15

NSS

NOT SOLD SEPARAT

COIL - field upper left (Order Case p/n A25716)

1шт.

16

NSS

NOT SOLD SEPARAT

COIL - field lower left (Order Case p/n A25716)

1шт.

17

NSS

NOT SOLD SEPARAT

COIL - field upper right (Order Case p/n A25716)

1шт.

18

NSS

NOT SOLD SEPARAT

COIL - field lower right (Order Case p/n A25716)

1шт.

19

12X-201

LOCKWASHER - terminal stud 3/8

3шт.

20

8X-80

NUT - terminal stud hex (3/8-16)

2шт.

21

MN-47A

WASHER - plain, terminal stud 3/8

1шт.

22

GAL-40A

COVER - bearing comm. end

1шт.

23

MAD-110

FELT

1шт.

24

MBD-2236A

HEAD ASS'Y. - comm. end (Case p/n A25729)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

25

MBD-150

WICK - felt

1шт.

26

MBD-1236

HEAD ASS'Y. - partical comm. end

1шт.

27

GBF-79

BEARING - abs. bronze (Case p/n A25791)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

28

MBD-2079

PLATE ASS'Y. - brush (Case p/n A25805)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

29

GG-81

CLIP - brush holder post

4шт.

30

MBD-19S

SPRING - brush (Kit) (Case p/n A40423)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

31

MBD-47

SPACER - spring brush

4шт.

32

8X-120

SCREW - brush plate fill. head 10, 32 x 5/8

4шт.

33

12X-196

LOCKWASHER - brush plate screw #10

4шт.

34

X-1573

OILER

1шт.

35

MBD-258

SCREW - C.E. head, fill. hd. #10-32 x 5/8

12шт.

36

12X-196

LOCKWASHER - C.E. head screw #10

12шт.

37

MBD-2288

ARMATURE ASS'Y (Case p/n A25745)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - thrust comm. end (Order Case p/n A40425)

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - thrust int. 1/32 thick (Order Case p/n A40425)

2шт.

40

NSS

NOT SOLD SEPARAT

WASHER - thrust comm. end 1/32 thick (Order Case p/n A40425)

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - thrust comm. end 3/64 thick (Order Case p/n A40425)

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER - thrust (Order Case p/n A40425)

1шт.

43

EBB-27

BENDIX DRIVE ASS'Y. (Eclipse #A3344) (Case p/n A25637)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

44

MBD-254

SCREW - pinion housing, hex head, #10-32 x 7/8

8шт.

45

MBD-1024K

BAND - cover

1шт.

46

MBD-1315

BEARING ASS'Y. - int. (Case p/n A25660)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

47

MBD-312

RETAINER - felt

1шт.

48

MBD-313

WASHER - felt

1шт.

49

MBD-314

BEARING - abs. bronze (Case p/n A25674)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

50

PS-1228

HOUSING ASS'Y. - pinion (Case p/n A25769)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

51

MAB-88

PIN - dowel

1шт.

52

MBD-257

BEARING - abs. bronze (Case p/n A25811)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

53

12X-196

LOCKWASHER - housing sc. #10

8шт.

54

8X-714

SCREW - cover, band rd. hd. #10-32 x 1-1/2

1шт.

55

8X-794

NUT - cover band, square #10-32

1шт.

A40424

STUD KIT - terminal (Inc. ref. 4, 5, 6, 7, 8, 9, 10, 12 & 13) (Case p/n)

1шт.

A40425

WASHER KIT - thrust (Inc. ref. 38, 39, 40, 41 & 42) (Case p/n)

1шт.
