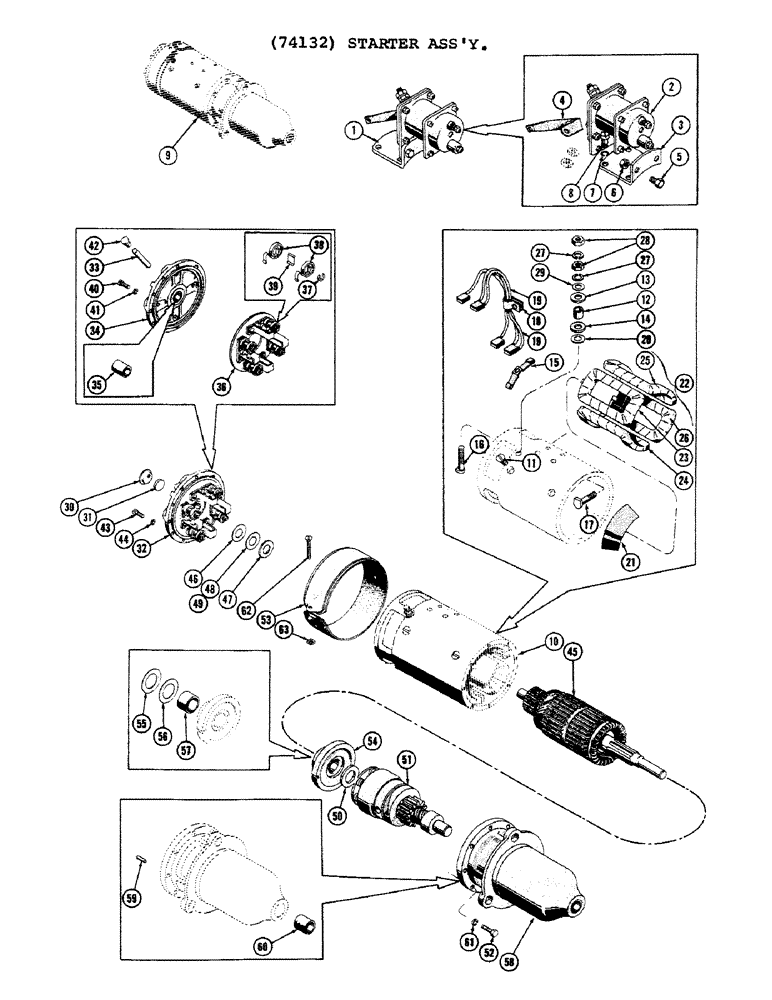

Запчасти Case 1000C (072) - 74132 STARTER ASSEMBLY (06) - ELECTRICAL SYSTEMS

74132

DRAWBAR SUPPORT

STARTER & SOLENOID ASS'Y.

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

1

MBD1252F

SOLENOID & BRACKET ASS'Y

1шт.

2

73433

SOLENOID SWITCH

SOLENOID ASS'Y. (Auto-lite #WSE-4101A)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

3

MBD252

BRACKET (Case p/n A40429)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

4

MBD414

CONNECTOR

1шт.

5

8X-343

SCREW - switch mt'g. hex head (1/4-28-5/8)

2шт.

6

XA-595

NUT - switch mt'g. screw hex (1/4-28)

2шт.

7

12X-199

LOCKWASHER - bracket mt'g. screw 1/4

4шт.

8

8X-905

SCREW - bracket mt'g. fill. hd. 1/4-20 x 7/16

4шт.

9

NSS

NOT SOLD SEPARAT

STARTER ASS'Y.

1шт.

10

NSS

NOT SOLD SEPARAT

FRAME & FIELD ASS'Y

1шт.

11

GK-38

SCREW - pole shoe

8шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - insulation terminal stud (Order Case p/n A40424)

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - plain terminal stud outer (Order Case p/n A40424)

2шт.

14

NSS

NOT SOLD SEPARAT

WASHER - insulation terminal stud (Order Case p/n A40424)

2шт.

15

NSS

NOT SOLD SEPARAT

CONNECTOR - terminal stud (Order Case p/n A40424)

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - terminal (Order Case p/n A40424)

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - terminal (Order Case p/n A40424)

1шт.

18

NSS

NOT SOLD SEPARAT

TERMINAL - brush (Order Case p/n A40424)

1шт.

19

MBD-1012S

BRUSH - set (Case p/n A25703)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal stud inner (Order Case p/n A40424)

1шт.

21

NSS

NOT SOLD SEPARAT

INSULATION - field connection (Order Case p/n A40424)

1шт.

22

MBD-3005S

FIELD COIL PACKAGE (Case p/n A25716)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

23

MBD-1007S

COIL - field upper left (NSS)

1шт.

24

MBD-1008S

COIL - field lower left (NSS)

1шт.

25

MBD-1009S

COIL - field upper right (NSS)

1шт.

26

MBD-1010S

COIL - field lower right (NSS)

1шт.

27

12X-201

LOCKWASHER - terminal stud 3/8

4шт.

28

8X-830

NUT - terminal stud hex (3/8-16)

4шт.

29

MN-47B

WASHER - plain, terminal, stud 3/8

1шт.

30

GAL-40A

COVER - bearing comm. end

1шт.

31

MAD-110

FELT

1шт.

32

MBD-2236A

HEAD ASS'Y. - comm. end (Case p/n A25729)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

33

MBD-150

WICK - felt

1шт.

34

MBD-1236

HEAD ASS'Y. - partial comm. end

1шт.

35

GBF-79

BEARING - abs. bronze (Case p/n A25791)

1шт.

36

MBD-2079

PLATE ASS'Y. - brush (Case p/n A25805)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

37

GG-81

CLIP - brush holder post

4шт.

38

MBD-19S

SPRING - brush (Kit) (Case p/n A40423)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

39

MBD-47

SPACER - spring brush

4шт.

40

8X-120

SCREW - brush plate fill. head 10-32 x 5/8

4шт.

41

12X-196

LOCKWASHER - brush plate screw #10

4шт.

42

X-1573

OILER

1шт.

43

MBD-258

SCREW - C.E. head, fill. hd. #10-32 x 5/8

12шт.

44

12X-196

LOCKWASHER - C.E. head screw #10

12шт.

45

MBD-2288

ARMATURE ASS'Y. (Case p/n A25745)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER - thrust comm. end (Order Case p/n A40425)

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - thrust int. 1/32 thick (Order Case p/n A40425)

2шт.

48

NSS

NOT SOLD SEPARAT

WASHER - thrust comm. end 1/32 thick (Order Case p/n A40425)

1шт.

49

NSS

NOT SOLD SEPARAT

WASHER - thrust comm. end 3/64 thick (Order Case p/n A40425)

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - thrust (Order Case p/n A40425)

1шт.

51

EBB-27

BENDIX DRIVE ASS'Y. (Eclipse #A3344) (Case p/n A25637)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

52

MBD-254

SCREW - pinion housing, hex head #10-32 x 7/8

8шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

53

MBD-1024K

BAND - cover

1шт.

54

MBD-1315

BEARING ASS'Y. - int. (Case p/n A25660)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

55

MBD-312

RETAINER - felt

1шт.

56

MBD-313

WASHER - felt

1шт.

57

MBD-314

BEARING - abs. bronze (Case p/n A25674)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

58

PS-1228

HOUSING ASS'Y. - pinion (Case p/n A25769)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

59

MAB-88

PIN - dowel

1шт.

60

MBD-257

BEARING - abs. bronze (Case p/n A25811)

1шт.

This can be purchased anywhere, does not have to be purchased at Auto-Lite

1шт.

61

12X-196

LOCKWASHER - housing sc. #10

8шт.

62

8X-714

SCREW - cover, band rd. hd. #10-32 x 1-1/2

1шт.

63

8X-794

NUT - cover and, square #10-32

1шт.

A40425

WASHER KIT - thrust (Inc. ref. 46, 47, 48, 49 & 50) (Case p/n)

1шт.

A40424

STUD KIT - terminal (Inc. ref. 12, 13, 14, 16, 17, 18, 20 & 21 ) (Case p/n)

1шт.
