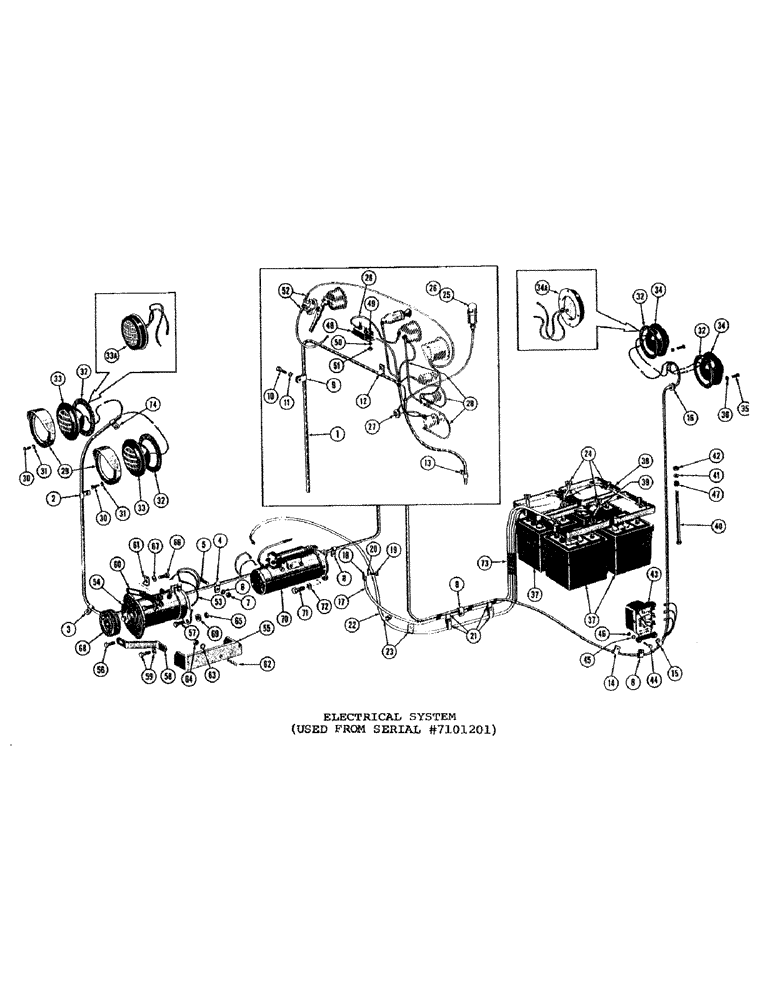

Запчасти Case 1000C (064) - ELECTRICAL SYSTEM, USED FROM SERIAL NUMBER 7101201 (06) - ELECTRICAL SYSTEMS

1

R13794

SPARE PART HARNESS - wiring

1шт.

2

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Wiring, 5/16 T x 13/32 hole (R13794 mtg.)

1шт.

3

49832

CLAMP

Wiring, 5/16 T x 17/32 hole (R13794 mtg.)

1шт.

4

49839

CLAMP

Wiring, 3/8 T x 17/32 hole (R13794 mtg.)

1шт.

5

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

(49839 mtg.)

1шт.

6

92-8

LOCK WASHER,1/2"

1шт.

7

25-118

NUT,1/2"-20, G5

Reg. SF hex

1шт.

8

49836

CLAMP

Wiring 1/2 T x 17/32 hole

3шт.

9

49833

CLAMP

Wiring 1/2 T x 9/32 hole (R13794 mtg.)

1шт.

10

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

(49833 mtg.)

1шт.

11

92-4

LOCK WASHER,1/4"

1шт.

12

49838

CLAMP

Wiring, 1/2 T x 13/32 hole (R13794 mtg.)

1шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

Wiring, 1/2 T x 11/32 hole (R13794 mtg.)

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

Wiring, 3/8 T x 13/32 hole (R13794 mtg.)

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Wiring, 3/8 T x 11/32 hole (R13794 mtg.)

1шт.

16

74089

BLEEDER

GROMMET - rubber

1шт.

17

R13793

CABLE

Battery, (Ground) positive

1шт.

18

74939

SCREW

CLIP - terminal

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(74939 mtg.)

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

49774

CLAMP

Wiring, 1/2 T x 13/32 hole (R13793 & 72175 mtg.)

4шт.

22

R14556

CABLE

Battery (Hot) negative

1шт.

23

49774

CLAMP

Wiring 1/2 T x 13/32 hole (72175 mtg.)

2шт.

24

72176

CABLE

Jumper

3шт.

25

71420

SPARE PART Dash

1шт.

26

74625

NO LONGER SERVICED

BULB - lamp, dash

1шт.

27

49566

GROMMET

Rubber

1шт.

28

51200220

ELECTRICAL WIRE

WIRE Jumper

4шт.

29

R16791

SPARE PART RING - headlight mtg.

2шт.

30

71-416

FHMS - 1/4 - 20 NC x 1 (31136 mtg.)

8шт.

31

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

8шт.

32

NLS

NO LONGER SERVICED

Headlight & tailight (Used, Serial Range: up-7-26-59)

4шт.

33

72343

SPARE PART LIGHT ASSY - head (See Figure 78 for brkdw'n) (Used, Serial Range: up-7-26-59)

2шт.

33a

R17308

LAMP

ASSY - head (Used from 7-26-59) (See Figure 78 for breakdown)

2шт.

34

72570

SPARE PART LIGHT ASSY - tail (See Figure 78 for breakdown) (Used, Serial Range: up-7-26-59)

2шт.

34a

R17309

LAMP

ASSY - tail (Used from 7-26-59) (See Figure 78 for breakdown)

2шт.

35

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/2-20 NC x 1/2 (72570 mtg.)

8шт.

36

193-28

LOCK WASHER,Int Tooth, 1/4"

Shakeproof

8шт.

37

R12765

X

BATTERY - 6V (Dry type)

4шт.

38

R13004

CLAMP

HOLD DOWN ASSY - battery

4шт.

39

R13800

PLATE - hold down

2шт.

40

13-5160

BOLT,Hex, 5/16" - 18 x 10", Gr 5

(R13004 mtg.)

6шт.

41

195-21

WASHER,5/16"

6шт.

42

131-4

LOCK NUT,5/16"-18, GB

6шт.

43

R12764

X

VOLTAGE - regulator

1шт.

44

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R12764 mtg)

4шт.

45

92-5

LOCK WASHER,5/16"

4шт.

46

25-115

NUT,5/16"-24, G5

Reg. SF hex

4шт.

47

G46096

RETAINER

BUSHING - rubber battery frame bolt

6шт.

48

R13981

SPARE PART BREAKER - circuit (12V-30 amp)

1шт.

49

174-77

RHMS - #8-36 x 1/2

2шт.

50

192-6

LOCK WASHER,#8

2шт.

51

225-14208

NUT,#8-36

Hex

2шт.

52

71217

TERMINAL - hour meter

2шт.

53

74937

WIRE - jumper

1шт.

54

R18000

GENERATOR

ASSY (See Figure 70 for breakdown)

1шт.

55

R14421

BRACKET - generator

1шт.

56

11261

HOSE

HHCS 3/8-16 NC x 1-1/2 (Front hole gen. bracket)

1шт.

57

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Rear hole gen. bracket) (45057)

1шт.

58

R14422

SUPPORT - generator bracket

1шт.

59

80680

LOCK WASHER,3/8 0.381 CST ZND

& LOCKWASHER - (Support mtg.)

1шт.

60

R14826

STRAP - generator adj.

1шт.

61

30360

SPARE PART CLIP - gen. adj. strap

1шт.

62

REF

INSTRUCTION

STUD 1/2-13 NC x 1-5/8 (Bracket mtg.)

2шт.
