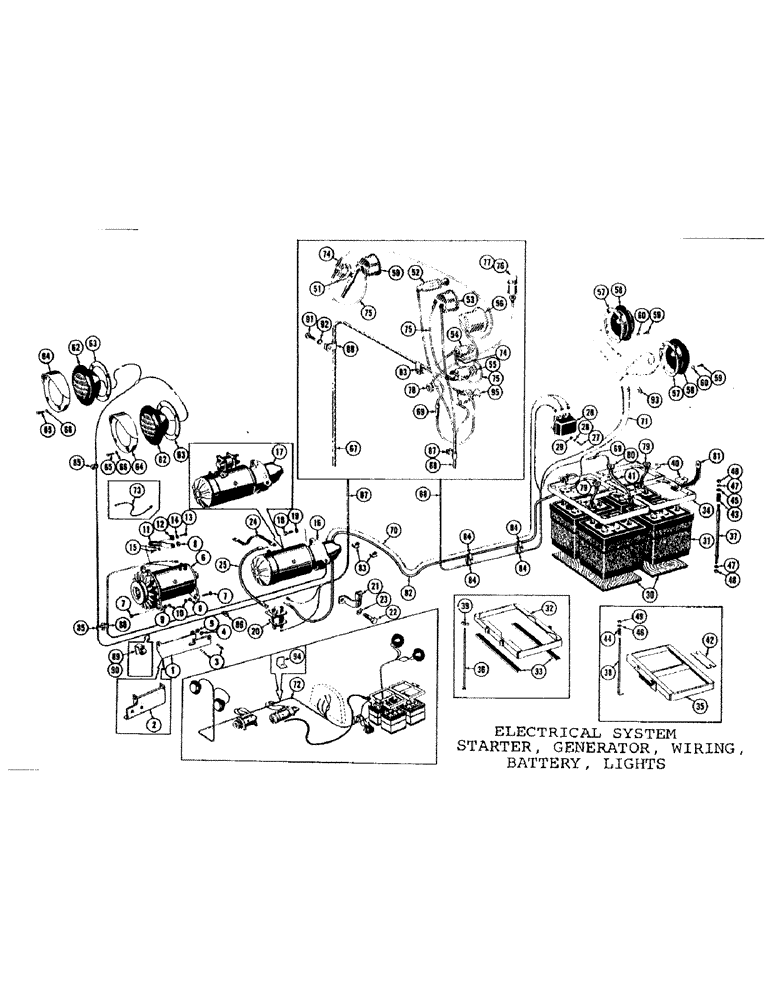

Запчасти Case 1000C (060) - ELECTRICAL SYSTEM, STARTER, GENERATOR, WIRING, BATTERY, LIGHTS, USED UP TO SERIAL NUMBER 7101201 (06) - ELECTRICAL SYSTEMS

1

71825

BRACKET - generator mtg. (Used up to ser. #7100594)

1шт.

2

R-11732

BRACKET - generator mtg. (Used from ser. #7100594)

1шт.

3

REF

INSTRUCTION

STUD - 3/8-16 N.C. x 1-1/4 (71825 or R11732 mtg.) (See Figure 8 ref.21)

2шт.

4

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

5

30438

X

NUT - hex (3/8-16 N.C.)

2шт.

6

73102

GENERATOR ASS'Y

1шт.

7

73437

SCREW - 3/8-24 N.F. x 1-1/4 (73102 mtg.) (Used up to ser. #7100594)

2шт.

11261

HOSE

SCREW - 3/8-16 N.F. x 1-1/2 (73102 mtg.) (Used from ser. #7100594)

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(73102 mtg.) (Used from S/N 7100594) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

73439

SPACER - generator adjusting strap

1шт.

9

10124

PIN

NUT - hex (3/8-24 N.F.) (Used up to serial #7100594)

2шт.

R-11731

NUT - hex (3/8-24 N.F.) (Used from serial #7100594)

2шт.

10

73438

NUT - pal (Used up to serial #7100594)

2шт.

11

73435

GEAR

STRAP - generator adjusting

1шт.

12

30360

CLIP - generator adjusting strap

1шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(73425 mtg.) (45030) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

15

71842

GASKET

SCREW & LOCKWASHER ASS'Y - 3/8-16 N.C. x 2-1/2 (73424 mtg.) (Used up to serial #7100594)

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

SCREW & LOCKWASHER - 3/8-16 N.C. x 1-1/4 (73435 mtg.) (Used from serial #7100594)

1шт.

16

74132

DRAWBAR SUPPORT

STARTER ASS'Y - (Used up to serial #7100594)

1шт.

17

73101

ENGINE FLYWHEEL

STARTER & SOLENOID ASS'Y - (Used from serial #7100594)

1шт.

18

NLS

NO LONGER SERVICED

SCREW - 5/8-11 N.C. x 1-1/2 (74132 mtg.) (Used up to serial #7100594)

3шт.

10129

X

SCREW - 5/8-11 N.C. x 1-1/4 (73101 mtg.) (Used from ser. #7100594)

3шт.

19

73441

X

WASHER - lock

3шт.

20

73433

SOLENOID SWITCH

SWITCH - solenoid starter (Used up to serial #7100594)

1шт.

21

72284

SET,PISTON RINGS+0.4

STRAP - solenoid switch (Used up to serial #7100594)

1шт.

22

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(72284 mtg.) (Used up to S/N 7100594) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

(Used up to ser. #7100594) 3/8"

2шт.

24

72134

SPRING

STRAP - engine ground (Used up to serial #7100594)

1шт.

25

72288

CABLE - jumper (Used up to serial #7100594)

1шт.

26

73436

BEARING CUP

REGULATOR - voltage

1шт.

27

NLS

NO LONGER SERVICED

FHMS - 1/4-28 N.F. x 1 (Used up to serial #7100106)

3шт.

76-410

RHMS - 1/4-28 N.F. x 5/8 (used from serial #7100106)

3шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

29

25-114

NUT,1/4"-28, G5

- reg. S.F. hex (1/4-28 N.F.) (Used up to ser. #7100106)

3шт.

30

72372

INSERT

BOARD - battery bottom

2шт.

31

35780

WASHER

BATTERY - dry type

4шт.

32

72145

SUPPORT

HOLD DOWN ASS'Y - battery (Used up to serial #7100058)

2шт.

33

72811

CLEVIS PIN,5/8" x 1.72" L

BUMPER STRIP - rubber (Used up to serial #7100058)

4шт.

34

72853

HOLD DOWN ASS'Y - battery (Used from ser. #7100058 and up to serial #7100282)

2шт.

35

74271

HOLD DOWN ASS'Y - battery (Used from serial #7100282)

2шт.

36

13-8176

BOLT (MACHINE),Hex, 1/2" - 13 x 11", Gr 5

BOLT, MACHINE, (72145 mounting) (Used up to S/N 7100058) Hex, 1/2"-13 x 11", G5

6шт.

37

72944

GEAR

BOLT ASS'Y - battery hold down (Used from serial #7100058 and up to serial #7100282)

6шт.

38

74270

BOLT - battery hold down (Used from serial #7100282)

6шт.

39

129-400

WING NUT,1/2"-13

NUT - wing (1/2-13 N.C.) (Used up to serial #7100058)

6шт.

40

72848

BRACKET ASS'Y - (Used from ser. #7100058 up to ser. #7100282)

4шт.

41

72849

PLATE - battery hold down (Used from ser. #7100058 up to serial #7100282)

2шт.

42

74338

SPACER - battery hold down (Used from serial #7100282)

1шт.

43

72851

RIM

SPRING - battery hold down (Used from ser. #7100058 up to serial #7100282)

6шт.

44

O4076C

SPRING - battery hold down (Used from ser. #7100282)

6шт.

45

195-33

WASHER,1/2"

- plain (Used from ser. #7100058 up to ser. #7100282)

6шт.

46

195-25

WASHER,3/8"

- plain (Used from serial #7100282)

6шт.

47

92-8

LOCK WASHER,1/2"

(Used from ser. #7100058 up to ser. #7100282) 1/2"

12шт.

48

25-118

NUT,1/2"-20, G5

- reg. S.F. hex (3/8-24 N.F.) (Used from serial #7100058 up to serial #7100282)

12шт.

49

25-116

NUT,Hex, 3/8"-24, G5

- reg. S.F. hex (3/8-24 N.F.) (Used from ser. #7100282)

6шт.

50

REF

INSTRUCTION

GAUGE ASS'Y - engine oil pressure (See Figure 80 ref.2)

1шт.

51

REF

INSTRUCTION

SWITCH ASS'Y - pressure (See Figure 80 ref. 9)

1шт.

52

REF

INSTRUCTION

LIGHTER ASS'Y - cigar (See Figure 80 ref.14)

1шт.

53

REF

INSTRUCTION

AMMETER ASS'Y (See Figure 80 ref. 5)

1шт.

54

REF

INSTRUCTION

SWITCH ASS'Y - push button starter (See Figure 80 ref.13)

1шт.

55

REF

INSTRUCTION

SWITCH ASS'Y - ignition (See Figure 80 ref. 12)

1шт.

56

REF

INSTRUCTION

METER ASS'Y - engine hours (See Figure 80 ref.6)

1шт.

57

NLS

NO LONGER SERVICED

GASKET - tail light

2шт.

58

72570

LIGHT ASS'Y - tail (See Figure 78 for breakdown)

2шт.

59

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS 1/4-20 N.C. x 1/2 (72570 mtg.) (46938)

8шт.

60

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock (48524)

8шт.

61

RESERVED

1шт.

62

72343

LIGHT ASS'Y - head (See Figure 78 for breakdown)

2шт.

63

NLS

NO LONGER SERVICED

GASKET - headlight

2шт.

64

31136

RING - head light mtg.

2шт.

65

73-416

BOLT (MACHINE),Flat, 1/4"

FHMS 1/4 - 20 N.C. x 1 (72343 mtg.) (46912)

8шт.

66

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

8шт.

67

72178

WEDGE

HARNESS ASS'Y - wiring, to front (Used up to ser. #7100650)

1шт.

68

72179

WASHER

HARNESS ASS'Y - wiring, to rear (Used up to ser. #7100650)

1шт.

69

72180

FUSE - wiring (Used up to serial #7100650)

2шт.

70

72290

HARNESS ASS'Y - wiring (Used up to serial #7100650)

1шт.

71

72601

WIRE ASS'Y - tail light (Used up to serial #7100650)

1шт.

72

74626

HARNESS ASS'Y - wiring (Used from serial #7100650)

1шт.

73

74937

WIRE - jumper (Used from serial #7100650)

1шт.

74

NLS

NO LONGER SERVICED

TERMINAL - hour meter wires

2шт.

75

51200220

ELECTRICAL WIRE

WIRE ASS'Y - jumper

3шт.

76

71420

LIGHT ASS'Y - dash

1шт.

77

74625

NO LONGER SERVICED

BULB - light

1шт.

78

49566

GROMMET

- rubber

1шт.

79

72176

CABLE

- jumper

2шт.

80

72177

CABLE - jumper

1шт.

81

71943

COVER

STRAP - battery ground (Used up to serial #7100650)

1шт.

74637

KIT

STRAP - battery ground (Used from serial #7100650)

1шт.

82

72175

CABLE - battery

1шт.

83

49838

CLAMP

- wiring

3шт.

84

49774

CLAMP

- wiring

6шт.

85

51200330

CLAMP

- wiring

2шт.

86

49837

CLAMP

- wiring (Used up to serial #7100650)

2шт.

87

49839

CLAMP

- wiring (Used from serial #7100650)

1шт.

88

49833

CLAMP

- wiring

1шт.

89

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- wiring (Used from serial #7100650)

1шт.

90

49876

BUMPER

CLAMP - wiring (Used from serial #7100650)

1шт.

91

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

(49833 mtg.) (45602) Hex, 1/4"-28 x 1/2", G5, Full Thd

1шт.

92

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

1шт.

93

74089

BLEEDER

GROMMET - tail light casting

1шт.

95

REF

INSTRUCTION

SWITCH ASS'Y - lights (See Figure 80 ref. 11)

1шт.

94

74939

SCREW

CLIP - starter terminal

2шт.
