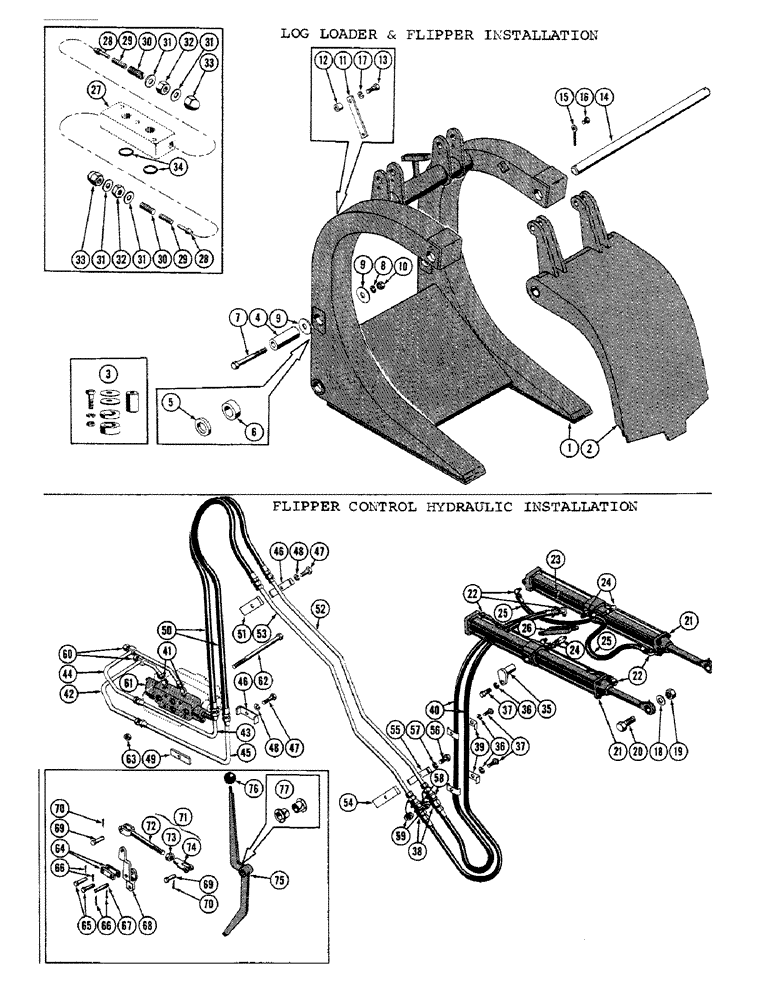

Запчасти Case 1000C (296) - LOG LOADER AND FLIPPER INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

1

R16380

LOG LOADER ASS'Y.

1шт.

2

R16379

FLIPPER ASS'Y.

1шт.

3

R2796

KIT - pin

1шт.

4

R13176

PIN

4шт.

5

R15112

SPACER

4шт.

6

R14481

BUSHING

SPACER

4шт.

7

14-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

HHCS 3/4-16 NF x 8

4шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

72916

PLATE

WASHER - plain

8шт.

10

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF)

4шт.

11

R16776

ANCHOR - hose

1шт.

12

R16777

SPACER

2шт.

13

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 x 1-1/2

2шт.

14

R16378

SHAFT - flipper

1шт.

15

A10615

LOCK ASSY

PIN - lock

2шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

195-53

WASHER,1" x 2" x .134"

- plain 1"

2шт.

19

131-370

LOCK NUT

LOCKNUT (Gripco) 1-14 NF

2шт.

20

14-1672

BOLT,Hex, 1" - 14 x 4-1/2", Gr 5

HHCS 1-14 NF x 4-1/2 lg

2шт.

21

R16710

CYLINDER ASS'Y. (See Figure 318 for breakdown)

2шт.

22

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male 90 degrees

6шт.

23

62-624

CAPSCREW - socket head 3/8-14 NF x 1-1/2

3шт.

24

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees

4шт.

25

R15843

HOSE ASSY.

HOSE ASS'Y.

4шт.

26

23109

HYDRAULIC HOSE

VALVE ASS'Y. - double relief

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

28

16227

HOSE

POPPET - relief valve

2шт.

29

NLS

NO LONGER SERVICED

SPRING

2шт.

30

NLS

NO LONGER SERVICED

SCREW - adjusting

2шт.

31

16219

GASKET

4шт.

32

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex (9/16 NF)

2шт.

33

48355

NUT - cap (9/16 NF)

2шт.

34

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL -"O" ring

2шт.

35

NSS

NOT SOLD SEPARAT

PIN ASS'Y. (Order #35031 & 219-40)

4шт.

36

92-8

LOCK WASHER,1/2"

6шт.

37

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 x 1" lg

6шт.

38

R12204

PLUG -quick disconnect

2шт.

39

49773

CLAMP

- hose

4шт.

40

R15557

HOSE ASS'Y

2шт.

41

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degree male, 5/8 tube to 3/4 male thread, flipper control hyd installation

2шт.

42

R15553

TUBE ASS'Y., flipper control hyd installation

1шт.

43

R16846

TUBE ASS'Y., flipper control hyd installation

1шт.

44

R15555

TUBE ASS'Y., flipper control hyd installation

1шт.

45

R16844

TUBE ASS'Y., flipper control hyd installation

1шт.

46

R16916

PLATE - clamp, flipper control hyd installation

2шт.

47

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 long (R16916 mt'g.), flipper control hyd installation

2шт.

48

92-5

LOCK WASHER,5/16"

(R16916 mt'g.), flipper control hyd installation 5/16"

2шт.

49

72156

BLOCK - weld, flipper control hyd installation

1шт.

50

R15559

HOSE ASS'Y., flipper control hyd installation

2шт.

51

R15920

BLOCK - weld, flipper control hyd installation

1шт.

52

R15543

TUBE ASS'Y., flipper control hyd installation

1шт.

53

R15841

TUBE ASS'Y., flipper control hyd installation

1шт.

54

R15921

BLOCK - weld, flipper control hyd installation

1шт.

55

R16917

CLAMP - plate, flipper control hyd installation

1шт.

56

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2" (R16917 mt'g.), flipper control hyd installation

1шт.

57

92-5

LOCK WASHER,5/16"

(R16917 mt'g.), flipper control hyd installation 5/16"

1шт.

58

R12203

SOCKET - quick disconnect, flipper control hyd installation

2шт.

59

R12205

CAP - quick disconnect, flipper control hyd installation

2шт.

60

218-756

CAP,37 Degree, 7/8"-14

Tube 5/8-14 thread, Flipper control hyd installation 37º, 7/8"-14

2шт.

61

R14272

VALVE - section ass'y. (See Figure 350 for breakdown), flipper control hyd installation

1шт.

62

39032

STUD ASS'Y. - for valve, flipper control hyd installation

4шт.

63

131-13

LOCK NUT,5/8"-18, GB

NUT - elastic stop 5/16-18 UNF, flipper control hyd installation

4шт.

64

70122

LINK, flipper control hyd installation

2шт.

65

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, flipper control hyd installation

2шт.

66

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Flipper control hyd installation 1/8" x 3/4"

4шт.

67

71037

PIN - yoke, flipper control hyd installation

1шт.

68

71300

PIN

LEVER - vlave control, flipper control hyd installation

1шт.

69

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Flipper control hyd installation 3/8" x 1.060"

2шт.

70

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", flipper control hyd installation

2шт.

71

R13770

ROD ASS'Y. - valve control, flipper control hyd installation

1шт.

72

R13752

ROD

- control valve, flipper control hyd installation

1шт.

73

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), flipper control hyd installation

1шт.

74

25-116

NUT,Hex, 3/8"-24, G5

YOKE - adjusting, flipper control hyd installation

1шт.

75

R13755

LEVER - valve control, flipper control hyd installation

1шт.

76

CAS31375

KNOB

BALL - grip, flipper control hyd installation

1шт.

77

74898

BUSHING - nylon, flipper control hyd installation

2шт.
