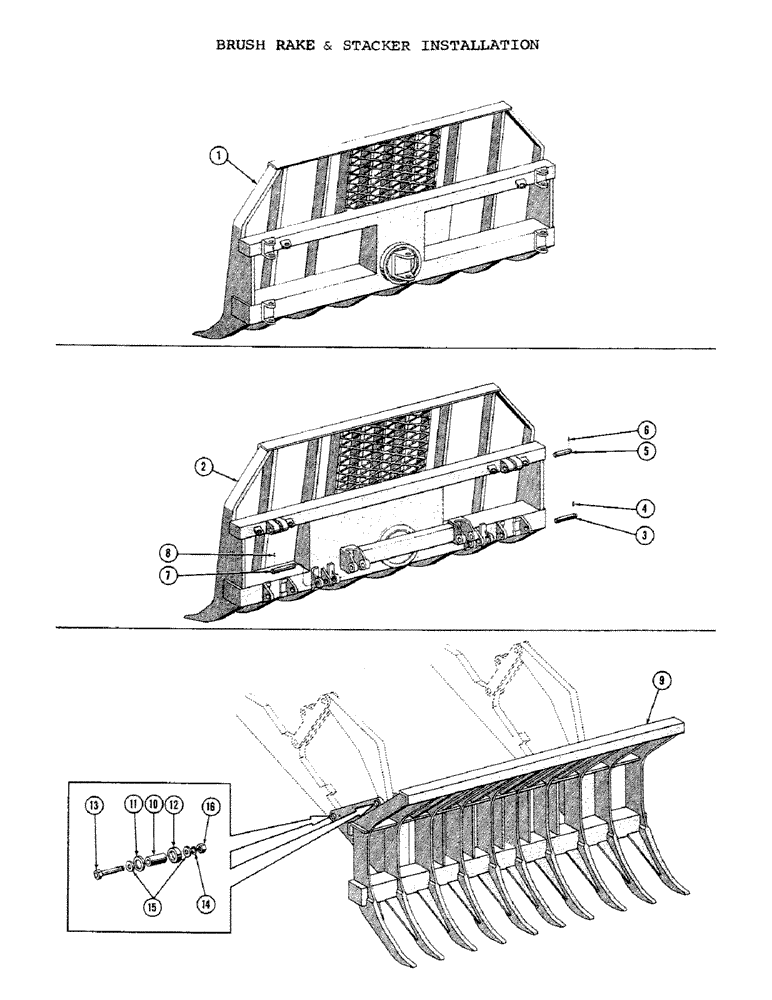

Запчасти Case 1000C (292) - BRUSH RAKE AND STACKER INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

1

R11289

RAKE - brush (For angle dozer)

1шт.

2

R10924

RAKE - brush (For mech. or hyd. dozer)

1шт.

3

R10917

PIN - mounting bracket

2шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

5

R10918

PIN - lift cylinder lug

2шт.

6

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

7

R10916

PIN - push beam

2шт.

8

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

9

R13541

RAKE - brush (For loader tractor)

1шт.

R2796

KIT - pin

1шт.

10

R13165

PIN

4шт.

11

R15112

SPACER

4шт.

12

R14481

BUSHING

SPACER

4шт.

13

14-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

HHCS 3/4-16 NF x 8 (R13541 mt'g.)

4шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

51200331

WASHER

- plain

8шт.

16

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF)

4шт.
