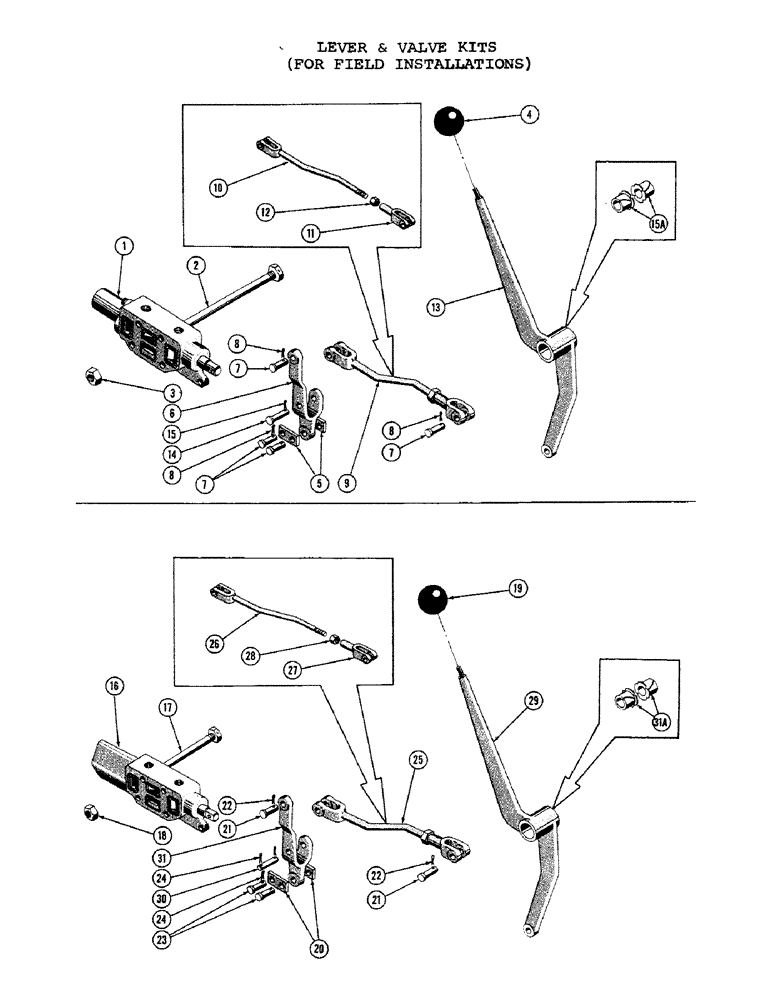

Запчасти Case 1000C (288) - LEVER AND VALVE KITS, FOR FIELD INSTALLATIONS (05) - UPPERSTRUCTURE CHASSIS

R2690

LEVER & VALVE KIT (Hyd bulldozer)

1шт.

1

R14275

SECTION - valve float (See Figure 350 for breakdown)

1шт.

2

38576

KEY

STUD ASS'Y. - valve

4шт.

3

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - elastic stip

1шт.

4

31375

WASHER

BALL - grip

1шт.

5

71316

X

LINK - hyd. valve

2шт.

6

71301

LEVER - hyd. valve

1шт.

7

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

9

R13759

ROD ASS'Y. - hyd. control

1шт.

10

R13760

ROD - hyd. control

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

13

R13772

LEVER ASS'Y - hyd. control

1шт.

14

71303

PIN - yoke

1шт.

15

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

15a

74898

BUSHING - nylon

2шт.

R2691

LEVER & VALVE KIT (Hyd. angledozer)

1шт.

1

R14275

SECTION - valve float (See Figure 350 for breakdown)

1шт.

2

R14275

STUD ASS'Y. - valve

4шт.

3

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - elastic stop

1шт.

4

CAS31375

KNOB

BALL - grip

1шт.

5

71316

X

LINK - hyd. valve

2шт.

6

71301

LEVER - hyd. control

1шт.

7

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

9

R13744

ROD ASS'Y. - valve control

1шт.

10

R13745

ROD - valve control

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

13

R13755

LEVER ASS'Y. - valve control

1шт.

14

71303

PIN - yoke

1шт.

15

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

15a

74898

BUSHING - nylon

2шт.

R2692

KIT

LEVER & VALVE KIT - (Loaders)

1шт.

16

R14272

SECTION - valve float (See Figure 350 for breakdown)

1шт.

17

39032

STUD ASS'Y. - valve

4шт.

18

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - elastic stop

1шт.

19

31375

WASHER

BALL - grip

1шт.

20

70122

LINK - hyd. valve

2шт.

21

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

23

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

24

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

4шт.

25

R13770

ROD ASS'Y. - valve control

1шт.

26

R13752

ROD

- valve control

1шт.

27

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

29

R13755

LEVER ASS'Y. - valve control

1шт.

30

70137

PIN - valve lever

1шт.

31

71300

PIN

LEVER - valve control

1шт.

31a

74898

BUSHING - nylon

2шт.
