Запчасти Case 1000C (278) - SCARIFIER AND RIPPER HYDRAULICS, WHEN USED WITH HYDRAULIC BULLDOZER, LEVER AND VALVE SYSTEM (05) - UPPERSTRUCTURE CHASSIS

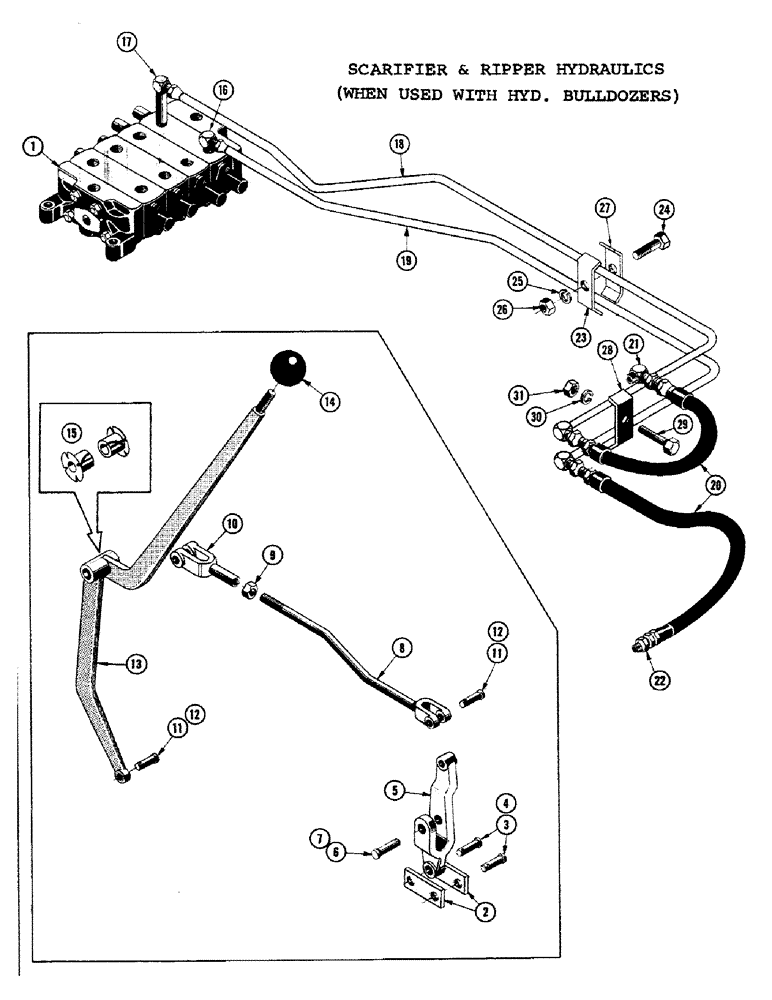

Схема запчастей Case 1000C - (278) - SCARIFIER AND RIPPER HYDRAULICS, WHEN USED WITH HYDRAULIC BULLDOZER, LEVER AND VALVE SYSTEM (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

VALVE ASS'Y. - hydraulic (Used up to 12-28-58) (See Figure 340 for breakdown) (Order #R14053 for service)

1шт.

R14053

VALVE ASS'Y. - hydraulic (Used from 12-28-58) (See Figure 340 for breakdown)

1шт.

2

71316

X

LINK - valve control lever

2шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

4

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

2шт.

5

71301

LEVER - valve control

1шт.

6

71303

PIN - yoke

1шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

1шт.

71515

ROD ASS'Y. - valve control (Used up to ser. #7101201)

1шт.

R13759

ROD ASS'Y. - valve control (Used from ser. #7101201)

1шт.

8

71514

ROD - valve control (Used up to ser. #7101201)

1шт.

R13760

ROD - valve control (use from ser. #7101201)

1шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

2шт.

11

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

1шт.

12

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

2шт.

13

NSS

NOT SOLD SEPARAT

LEVER ASS'Y. - valve control (Used up to ser. #7100844) (Order (1) 74893 & (2) 74898 for service)

1шт.

74893

LEVER ASS'Y. - valve control (Used from ser. #7100844 up to ser. #7101201)

1шт.

R13772

LEVER ASS'Y. - valve control (Used from serial #7101201)

1шт.

14

31375

WASHER

BALL - grip

1шт.

15

74898

BUSHING - nylon (Used from ser. #7100844)

2шт.

16

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 3/4 NP (50127), scarifier hyd system

1шт.

17

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- special (Used up to ser. #7101201), scarifier hyd system

1шт.

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- special (Used from ser. #7101201), scarifier hyd system

1шт.

18

71596

TUBE ASS'Y. - upper valve to cylinder (Used up to ser. #7101201), scarifier hyd system

1шт.

R13712

TUBE ASS'Y. - upper valve to cylinder (Used from ser. #7101201), scarifier hyd system

1шт.

19

71594

TUBE ASS'Y. - lower valve cylinder (Used up to ser. #7101201), scarifier hyd system

1шт.

R13711

TUBE ASS'Y. - lower valve cylinder (Used from ser. #7101201), scarifier hyd system

1шт.

20

19207

HOSE ASSY.

HOSE ASS'Y. - to cylinder, scarifier hyd system

2шт.

21

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC - 1/2 NP (50114), scarifier hyd system

1шт.

22

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024), scarifier hyd system

1шт.

23

31665

COLLAR CLAMP

CLAMP - tube (71594 & 71596 mt'g.), scarifier hyd system

1шт.

24

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2 (31665 & 70723 mt'g.) (45635), scarifier hyd system

1шт.

25

92-5

LOCK WASHER,5/16"

(48445), scarifier hyd system 5/16"

1шт.

26

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), scarifier hyd system

1шт.

27

31665

COLLAR CLAMP

CLAMP - tube (71594 & 71596 mt'g.), scarifier hyd system

1шт.

28

31665

COLLAR CLAMP

CLAMP - tube (71594 & 71596 mt'g.), scarifier hyd system

1шт.

29

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (31665 mt'g.) (45633), scarifier hyd system

1шт.

30

92-5

LOCK WASHER,5/16"

(48445), scarifier hyd system 5/16"

1шт.

31

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), scarifier hyd system

1шт.

Выбрано товаров: 40
