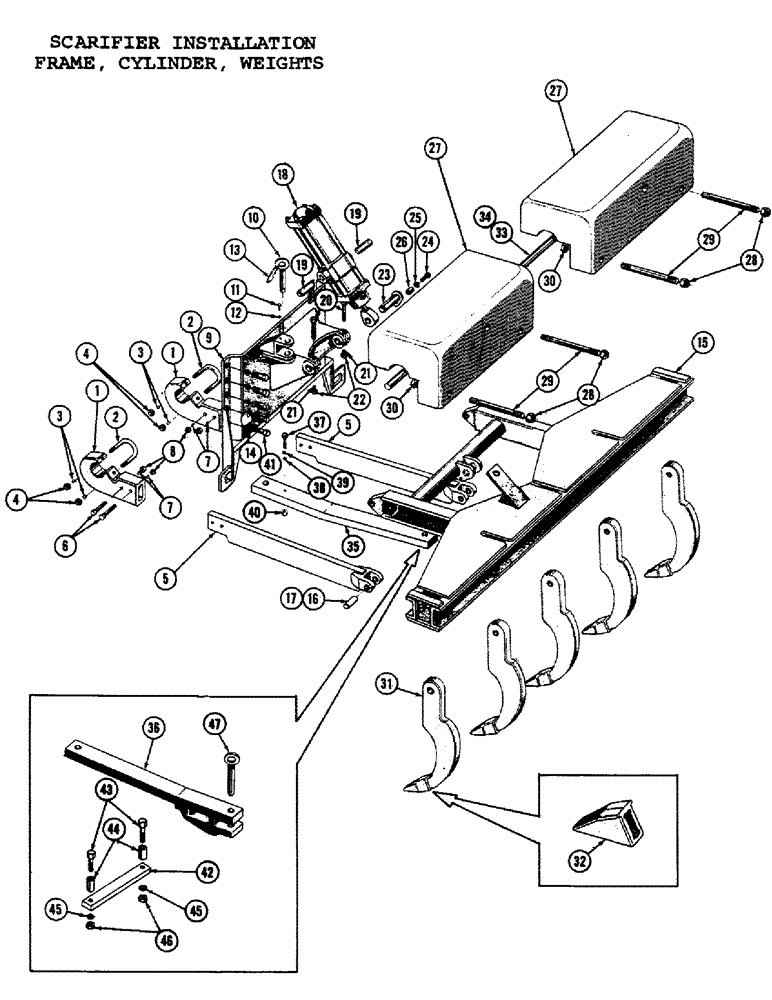

Запчасти Case 1000C (270) - SCARIFIER INSTALLATION, FRAME, CYLINDER, WEIGHTS (05) - UPPERSTRUCTURE CHASSIS

1

70795

X

BRACKET - scarifier attaching

2шт.

2

70884

BOLT

"U" BOLT (70795 mt'g.)

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

4шт.

5

70021

ARM ASS'Y.

2шт.

6

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

HHCS 3/4-16 NF x 3-1/2 (70021 mt'g.) (45791)

4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

8

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

9

74600

PLATE ASS'Y. - backing

1шт.

10

72101

PIN ASS'Y.

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(72101 mounting) (45029) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

12

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

13

35393

AXLE-SHAFT, ARTICULA

CHAIN (72101 mt'g.)

1шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

10шт.

15

70801

FRAME ASS'Y. - scarifier

1шт.

16

71946

DEFLECTOR

PIN (70801 mt'g.)

2шт.

17

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, (71946 mt'g.) (49873) 1/4" x 1 3/4", Slotted

4шт.

18

71070

CYLINDER ASS'Y. - hydraulic (See Figure 316 for breakdown)

1шт.

19

70887

AXLE PIN

PIN (71070 mt'g.)

2шт.

20

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS 5/8-18 NF x 4 (70887 mt'g.) (45768)

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

2шт.

22

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

2шт.

23

31109

PIN ASSY.

PIN ASS'Y. (71070 mt'g.)

1шт.

24

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (31109 mt'g.) (45706)

1шт.

25

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

26

D23740

BUSHING

2шт.

27

70885

WEIGHT

- scarifier

2шт.

28

131-370

LOCK NUT

NUT - reg. SF hex (1-14 NF) (48378)

4шт.

29

R11497

STUD - 1-14 NF x 13-1/2 (70885 mt'g.)

4шт.

30

25-1116

NUT,1"-14, G5

- reg. SF hex (1-14 NF) (48109)

4шт.

31

71196

KEY

TOOTH ASS'Y. - scarifier

5шт.

32

70016

SHOE - scarifier tooth

1шт.

33

70811

SHIM

ROD - teeth holding

1шт.

34

132-152

PIN

- cotter, 1/4 dia. x 2 (48738)

2шт.

35

70997

DRAWBAR - scarifier (Used up to serial #7100757)

1шт.

36

74608

DRAWBAR - scarifier (Used from serial #7100757)

1шт.

37

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS 3/4-16 NF x 3-1/4 (70997 mt'g.) (Used up to serial #7100757)

1шт.

38

195-45

WASHER,3/4"

(Used up S/N 7100757) (48432) 3/4"

1шт.

39

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (Used up to S/N 7100757) (48452) 3/4"

1шт.

40

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (Used up to ser. #7100757)

1шт.

41

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS 3/4-16 NF x 2 (45785)

10шт.

42

74602

GUIDE

- drawbar (Used from serial #7100757)

1шт.

43

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS 3/4-16 NF x 4-1/2 (Used from ser. #7100757) (45974)

2шт.

44

74603

SPACER (Used from serial #7100757)

2шт.

45

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (Used from S/N 7100757) 3/4"

2шт.

46

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (Used from ser. #7100757)

2шт.

47

74607

PIN ASSY.

PIN ASS'Y. - (Used from serial #7100757)

1шт.
