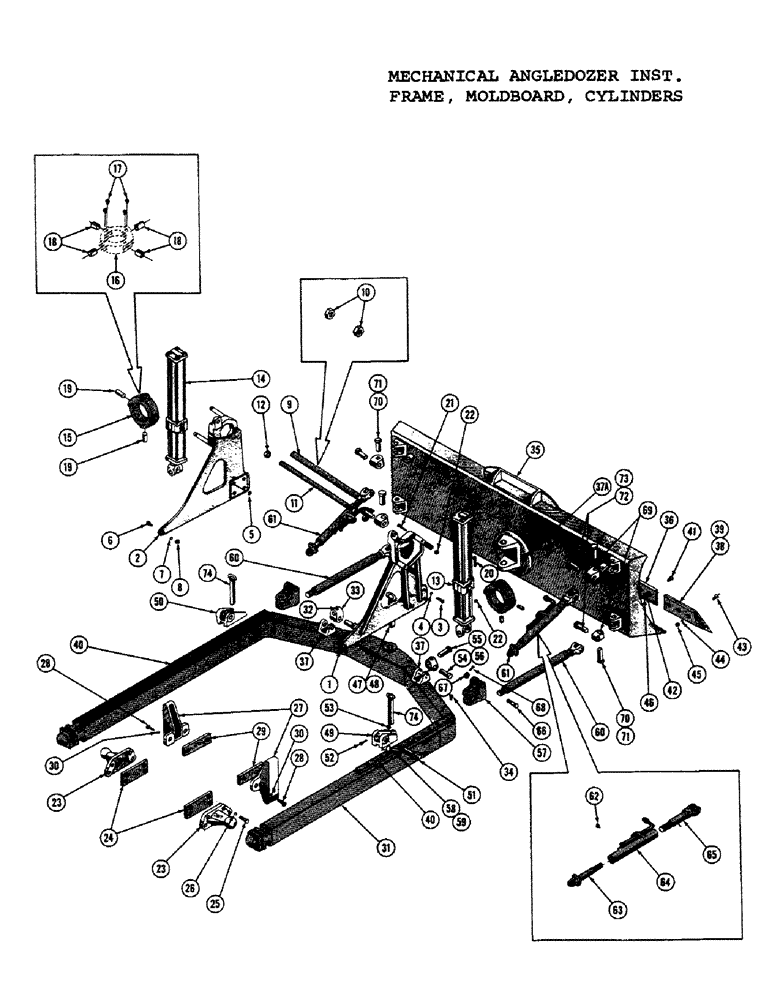

Запчасти Case 1000C (230) - MECHANICAL ANGLEDOZER INSTALLATION, FRAME, MOLDBOARD, CYLINDERS, BRACKETS (05) - UPPERSTRUCTURE CHASSIS

1

R13978

BRACKET ASS'Y. - cylinder

1шт.

2

R13979

BRACKET ASS'Y. - cylinder

1шт.

3

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4-16 NF x 2 (R13978 & 9 mtg.) (45785)

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

6

14-1668

HHCS 1-14 NF x 4 (R13978 & 9 mtg.)

2шт.

7

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456) 1"

2шт.

8

25-1116

NUT,1"-14, G5

- reg. SF hex (1-14 NF) (48109)

2шт.

9

70388

SPACER - tie rod (Used up to serial #7100058)

1шт.

10

25-1116

NUT,1"-14, G5

- reg. SF hex (1-14 NF) (Used from serial #7100058) (48109)

2шт.

11

74102

ROD - tie

1шт.

12

131-370

LOCK NUT

NUT - lock (1-14 NF) (48378)

2шт.

13

70743

CYLINDER ASS'Y. - RH hydraulic (See Figure 312 for breakdown)

1шт.

14

70744

CYLINDER ASS'Y. - LH hydraulic (See Figure 312 for breakdown)

1шт.

15

70411

YOKE ASS'Y. - cylinder

2шт.

16

NSS

NOT SOLD SEPARAT

YOKE - cylinder

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

3шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg

1шт.

18

70332

BUSHING

8шт.

19

70333

PIN (70411 mt'g.)

8шт.

20

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS 3/8-24 NF x 3-1/2 (70333 mt'g.) (45666)

4шт.

21

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS 3/8-24 NF x 4-1/2 (70333 mt'g.) (45671)

4шт.

22

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

8шт.

23

70305

TRUNNION - push

2шт.

24

70385

BLOCK - trunnion (Optional)

2шт.

25

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS 3/4-16 NF x 2-3/4 (70305 mt'g.) (45788)

8шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

27

70377

BRACKET - rub

2шт.

28

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS 3/4-16 NF x 2-1/4 (70377 mt'g.) (45786)

4шт.

29

70734

WASHER

BLOCK - rub bracket (Optional)

2шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

31

70715

WASHER

"C" FRAME ASS'Y

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

2шт.

33

70328

YOKE

UNIVERSAL - piston rod

2шт.

34

164-135

HEX SOC SCREW,Flat Hd, 5/8" - 18 x 1 1/2"

FHCS 5/8-18 NF x 1-1/2 (70357 mt'g.) (46957)

20шт.

35

70730

BOW

MOLDBOARD ASS'Y

1шт.

36

70725

BLADE - center cutting

1шт.

37

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg

2шт.

37a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Used up to 7010201) 90º, 1/8" NPT x .84" lg

1шт.

38

70375

SHARE

BIT - RH end

1шт.

39

70376

BLADE

BIT - LH end (Not shown)

1шт.

40

70357

SCREW

PLATE - slide

2шт.

41

19-832

BOLT

- plow, 1/2-13 NC x 2 (70725 mt'g.) (46711)

22шт.

42

92-8

LOCK WASHER,1/2"

(48448) 1/2"

22шт.

43

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8-11 NC x 2-1/4 (70375 & 70376 mt'g.) (46772)

6шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

6шт.

45

25-1010

NUT,5/8"-11, G5

(47806) 5/8"-11, G5

6шт.

46

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC) (47804)

22шт.

47

70387

PIN

ASS'Y - pivot

1шт.

48

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, (49868) 3/8" x 3", Slotted

1шт.

49

70358

BRACKET - RH slide

1шт.

50

70359

BRACKET - LH slide

1шт.

51

70352

PIN

2шт.

52

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS 3/8-24 NF x 3-1/2 (70352 mt'g.) (45666)

2шт.

53

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

2шт.

54

70382

X

PIN - (70743 & 70744 mt'g.)

2шт.

55

70349

PIN

- (70743 & 70744 mt'g.)

2шт.

56

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (49872) 3/8" x 2 1/4", Slotted

4шт.

D11671

NO LONGER SERVICED

PLATE KIT - moldboard service lace, see parts bulletin #2-62

1шт.

57

70316

BRACKET

- strut

2шт.

58

70390

PIN (70412 mt'g.)

2шт.

59

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (49872) 3/8" x 2 1/4", Slotted

2шт.

60

70343

STRUT ASS'Y. - lower

2шт.

61

70412

STAY

STRUT ASS'Y. - upper

2шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

63

70340

SCREW

ASS'Y. - LH

1шт.

64

70413

TURNBUCKLE ASS'Y

1шт.

65

70337

SCREW

ASS'Y. - top strut

1шт.

66

70378

STAY

BOLT - strut

2шт.

67

25-2316

SLOTTED NUT

- hex castle (1-14 NF) (48349)

2шт.

68

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

69

70315

UNIVERSAL JOINT

UNIVERSAL - dozer

4шт.

70

70382

X

PIN (70315 mt'g.)

4шт.

71

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (49872) 3/8" x 2 1/4", Slotted

4шт.

72

70349

PIN

(70412 & 70343 mt'g.)

4шт.

73

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (49872) 3/8" x 2 1/4", Slotted

4шт.

74

70381

PIN ASS'Y. - slide lock

2шт.
