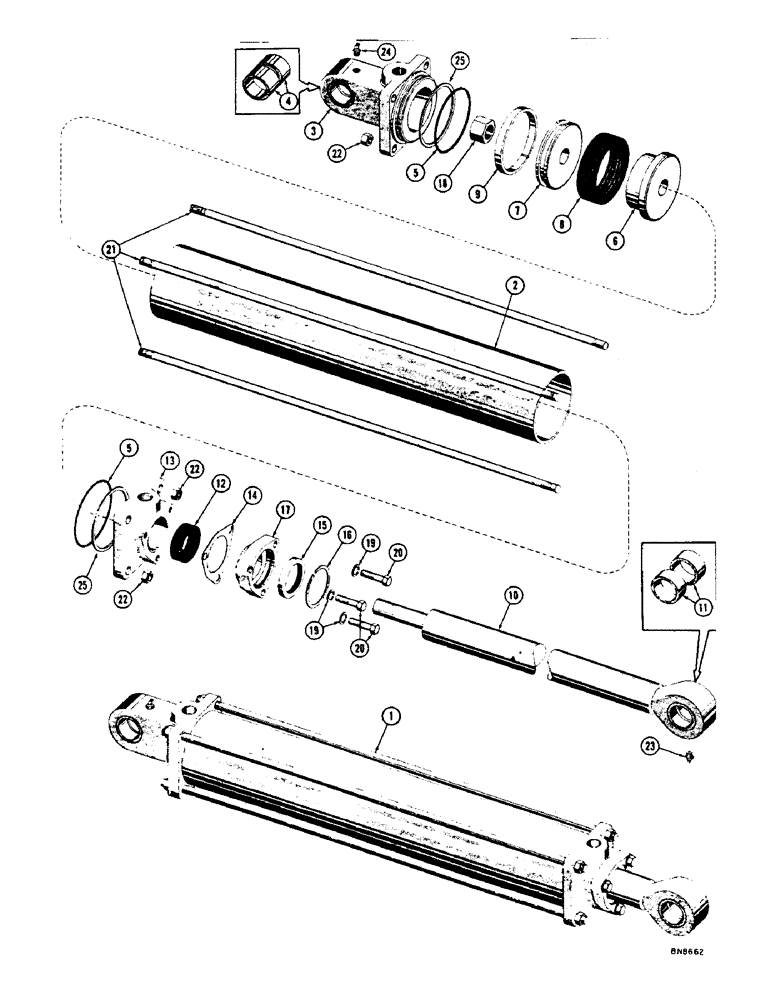

Запчасти Case 1000 (264) - 73046 REAR HINGE LOADER DUMP HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

73046

ROTOR

CYLINDER ASS'Y - hydraulic

2шт.

2

73045

TUBE - hydraulic cylinder

1шт.

3

R17872

END ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

4

72973

BUSHING

2шт.

5

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

6

R14110

BLOCK

- piston

1шт.

7

70461

WASHER - retainer

1шт.

8

R17198

PACKING

- piston

1шт.

9

70462

RING

- wear

1шт.

10

75017

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

11

72973

BUSHING

2шт.

12

17598

PACKING

- rod

1шт.

13

R17527

CAP - cylinder

1шт.

14

70468

SHIM

1шт.

15

70459

WIPER SEAL

- wiper

1шт.

16

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

17

70458

GASKET KIT

GLAND - packing

1шт.

18

48074

NUT

- lock (1-1/4 - 12 NF)

1шт.

19

92-8

LOCK WASHER,1/2"

3шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 mt'g.) Hex, 1/2"-13 x 2", G5

3шт.

21

R11662

ROD - tie

4шт.

22

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF)

8шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

25

R13074

WASHER

- back up

2шт.
