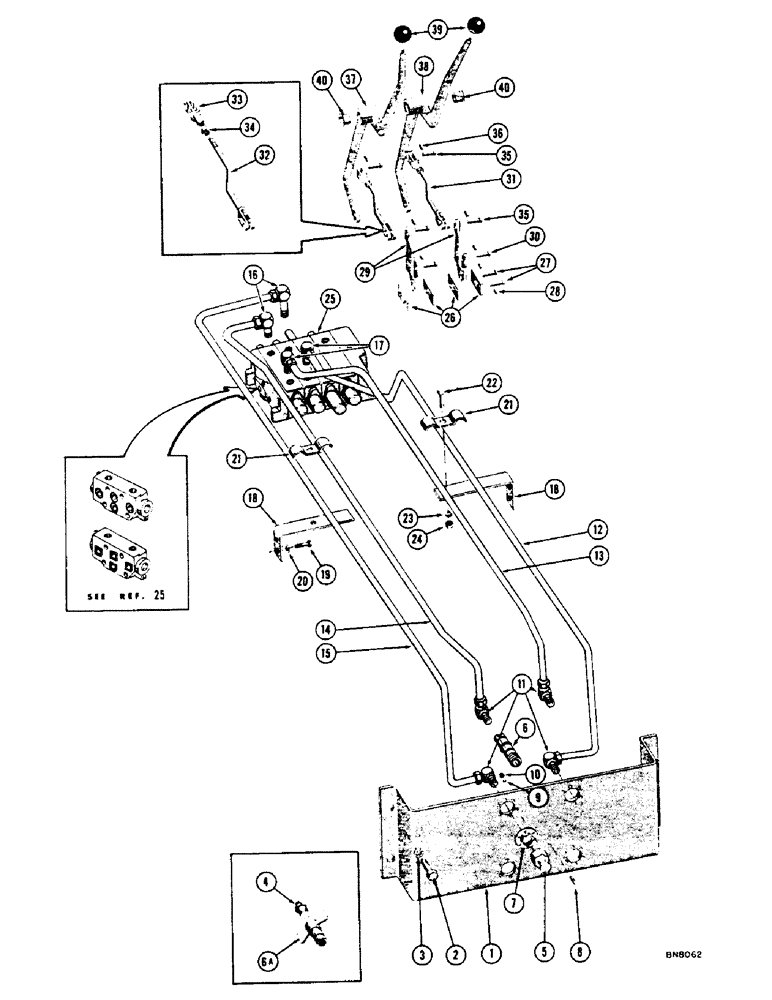

Запчасти Case 1000 (252) - DUAL PULL BEHIND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

72423

PIPE

BRACKET - mt'g.

1шт.

2

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4 - 16 NC x 1-3/4 (72423 mt'g.)

4шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

72363

PLUG - dust

4шт.

5

72364

CAP - dust

4шт.

6

36262

SOCKET - break-away coupling (Male)

4шт.

6a

36263

SOCKET - break-away coupling (Female)

4шт.

7

72362

SWITCH

FLANGE - mt'g

4шт.

8

173-80

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

RHMS - #8 x 3/4 (72362 mt'g.)

24шт.

9

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

24шт.

10

129-6

NUT,#8-32

24шт.

11

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NPT x 3/4" JIC

4шт.

12

72421

GASKET

TUBE ASS'Y - R.H. outer

1шт.

13

72419

GASKET

TUBE ASS'Y - R.H. inner

1шт.

14

72415

TUBE ASS'Y - L.H. inner

1шт.

15

72417

GASKET

TUBE ASS'Y - L.H. outer

1шт.

16

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT x 3/4" JIC

2шт.

17

218-503

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- extra long male, 3/4" NPT x 3/4" JIC

2шт.

18

R14844

BRACKET - mt'g.

2шт.

19

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8 long (R14844 mt'g.)

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

73089

ARMATURE

CLAMP - (Tube mt'g.)

2шт.

22

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (73089 mt'g.)

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

25

72361

DISC

VALVE - hydraulic (Type I - round seal mt'g. between sections) (See figure 292 for breakdown) (Order R14055 for service)

1шт.

R14055

VALVE - hydraulic (Type II - square seal mt'g. between sections) (See figure 292 for breakdown)

1шт.

26

71316

X

LINK - hydraulic valve

4шт.

27

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

29

71301

LEVER - hydraulic valve

2шт.

30

71303

PIN - yoke

2шт.

31

71513

ROD ASS'Y - hydraulic control

2шт.

32

71512

CRANK

ROD

1шт.

33

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - end

1шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

1шт.

35

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

36

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

37

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (For use without bushings) (Order (1) 74893 lever & (2) 74898 bushings)

1шт.

74892

LEVER ASS'Y - hydraulic control (For use with bushings, ref. #40)

1шт.

38

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (For use without bushings) (Order (1) 74898 lever & (2) 74898 bushings)

1шт.

74892

LEVER ASS'Y - hydraulic control (For use with bushings, ref. #40)

1шт.

39

CAS31375

KNOB

BALL - lever grip

2шт.

40

74898

BUSHING - nylon (Optional) (For levers)

4шт.
