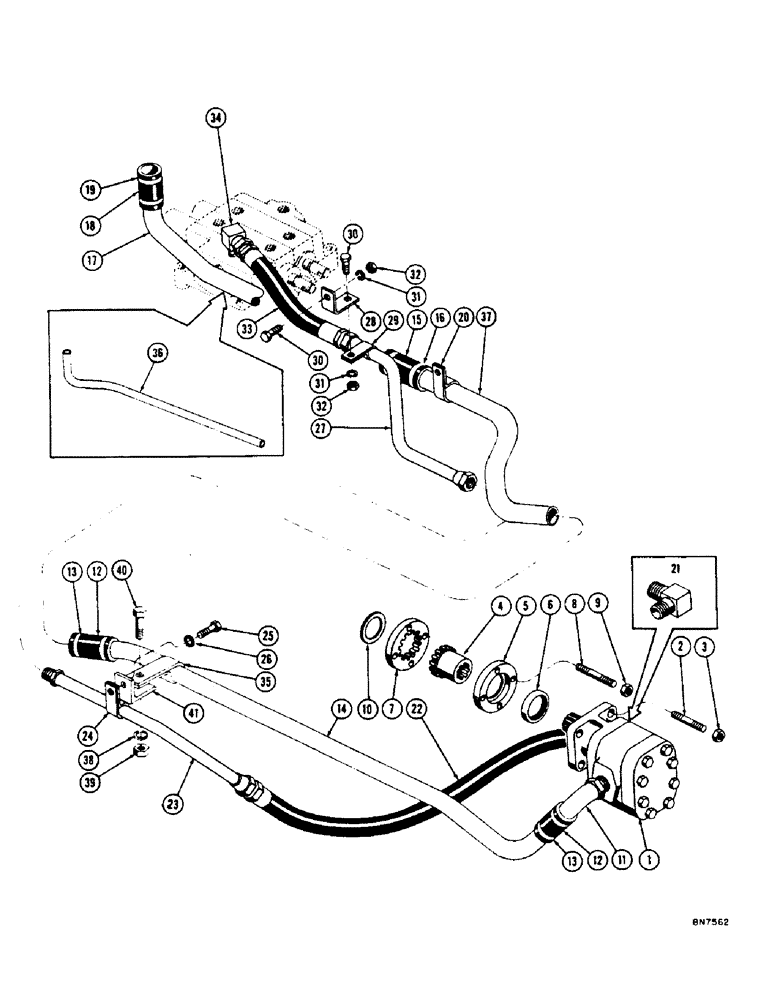

Запчасти Case 1000 (240) - DOZER PRIMARY HYDRAULICS (07) - HYDRAULIC SYSTEM

1

R12536

PUMP ASS'Y - hydraulic (See figure 276 for breakdown)

1шт.

2

46522

SLEEVE

STUD - 1/2 - 20 NF x 2-1/8 (R12536 mt'g.)

4шт.

3

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF)

4шт.

4

R13927

QUICK MALE COUPLING

COUPLING - male

1шт.

5

72991

RETAINER - seal

1шт.

6

40659

- oil

1шт.

7

R13928

COUPLING

- female

1шт.

8

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 7/16 - 20 NF x 2-5/8 (72991 & R13928 mt'g.)

4шт.

9

131-367

LOCK NUT

NUT - lock (7/16 - 20 NF)

4шт.

10

R10830

WASHER

- special

1шт.

11

R11863

ELBOW ASS'Y - pump

1шт.

12

R14169

HOSE

2шт.

13

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

14

R16796

TUBE - suction, front

1шт.

15

R14169

HOSE

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

17

R16798

TUBE - rear (For tractors with shoe type brakes only)

1шт.

18

R14169

HOSE

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

20

49773

CLAMP

- tube

1шт.

21

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" NPT x 1" JIC

1шт.

22

70568

HOSE ASS'Y

1шт.

23

74507

TUBE ASS'Y

1шт.

24

R13049

CLAMP - tube

1шт.

25

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 7/8 (R13049 mt'g.)

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

R12722

TUBE ASS'Y

1шт.

28

71534

BRACKET

1шт.

29

R13049

CLAMP - tube

1шт.

30

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71534 & R13049 mt'g.) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

33

R13206

HOSE ASS'Y

1шт.

34

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" NPT x 1" JIC

1шт.

35

R11860

CLAMP

- tube (R16796 mt'g.)

1шт.

36

R23310

TUBE - rear (For tractors with disc type brakes only)

1шт.

37

R21734

TUBE - suction, center

1шт.

38

92-8

LOCK WASHER,1/2"

1шт.

39

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

1шт.

40

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

41

R16837

BRACKET

1шт.
