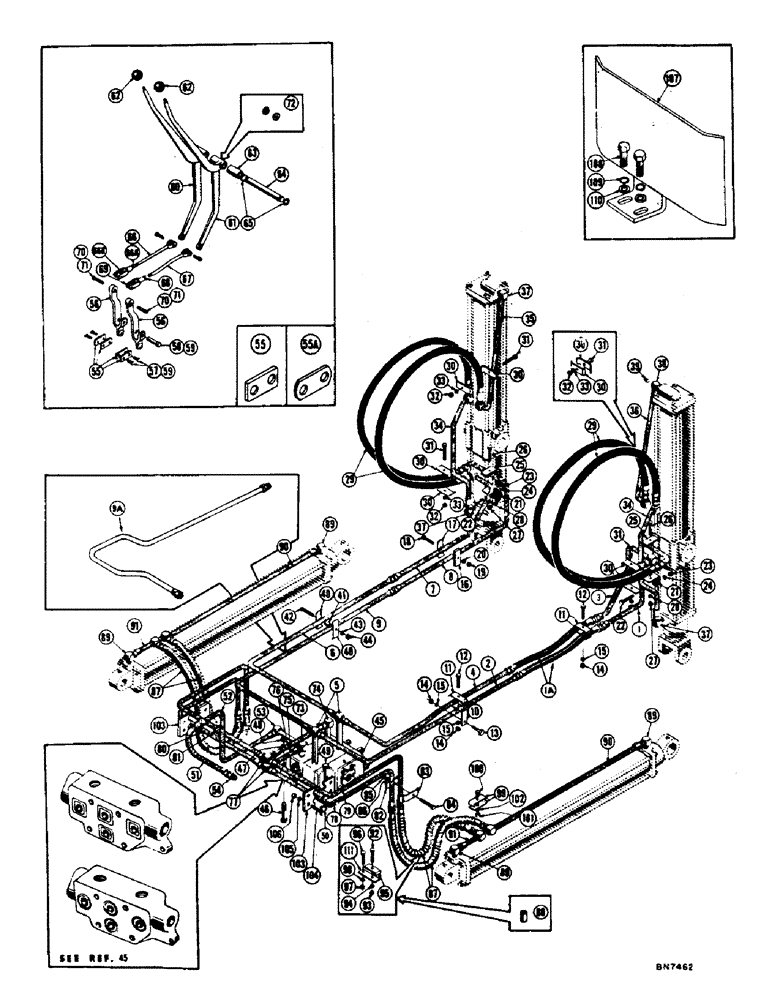

Запчасти Case 1000 (234) - HYDRAULIC ANGLING DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

R16762

TUBE ASS'Y

1шт.

1a

35968

STRAP

HOSE ASS'Y

2шт.

2

71549

TUBE ASS'Y

1шт.

3

R16764

TUBE ASS'Y

1шт.

4

71555

ARM

TUBE ASS'Y

1шт.

5

72119

TEE - special

2шт.

6

72519

TUBE ASS'Y

1шт.

7

71565

TUBE ASS'Y

1шт.

8

71563

TUBE ASS'Y

1шт.

9

72295

EXHAUST MANIFOLD

TUBE ASS'Y - (For tractors with shoe type brakes only)

1шт.

9a

R14628

TUBE ASS'Y - (For tractors with disc type brakes only)

1шт.

10

71534

BRACKET - tube clamp

1шт.

11

32978

PLATE ASSY.

PLATE - clamp

3шт.

12

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

2шт.

13

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1

1шт.

14

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

3шт.

15

92-5

LOCK WASHER,5/16"

3шт.

16

71603

SPACER

1шт.

17

31665

COLLAR CLAMP

PLATE - clamp

1шт.

18

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

19

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

71573

BRACKET - support

2шт.

22

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

2шт.

23

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

32978

PLATE ASSY.

PLATE - clamp

2шт.

26

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2

2шт.

27

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

35582

HOSE

ASS'Y

4шт.

30

31665

COLLAR CLAMP

PLATE - clamp

8шт.

31

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2

4шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

71571

BAND,16.875" Length

TUBE ASS'Y

2шт.

35

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

TUBE ASS'Y - L.H.

1шт.

36

71569

TUBE ASS'Y - R.H.

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" NPT to 5/8" JIC

3шт.

38

R14845

ELBOW - special

1шт.

39

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, extended square head (1/4" NPT)

1шт.

40

31665

COLLAR CLAMP

PLATE - clamp

2шт.

41

35335

SPACER

1шт.

42

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2 - 24 NF x 2

1шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 24 NF)

1шт.

45

71296

VALVE - hydraulic (Type I - round seal mt'g. between sections - see illustration) (See figure 286 for breakdown) (Order R14049 for service)

1шт.

R14049

VALVE - hydraulic (Type II - square seal mt'g. between sections - see illustration) (See figure 286 for breakdown)

1шт.

46

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2 - 20 NF x 2-1/2

2шт.

47

92-8

LOCK WASHER,1/2"

2шт.

48

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

2шт.

49

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2 - 20 NF x 2

1шт.

50

92-8

LOCK WASHER,1/2"

1шт.

51

R11754

TUBE ASS'Y - control, Serial Range: valve-tank

1шт.

52

R11752

TUBE ASS'Y - control, Serial Range: valve-tank

1шт.

53

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree extra long male, 1" NPT to 1" JIC

1шт.

54

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" NPT to 1" JIC

1шт.

55

71316

X

LINK - control valve

4шт.

55a

R22755

LINK

- control valve, used with R22671 spring guide (See figure 294 for breakdown)

2шт.

56

71301

LEVER - hydraulic valve

2шт.

57

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

58

71303

PIN - yoke

2шт.

59

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

60

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Order (1) 74889 & (2) 74898 for service) (For use without bushings, ref. #72)

1шт.

74889

LEVER ASS'Y - hydraulic control (For use with bushing, ref. #72)

1шт.

61

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Order (1) 74890 & (2) 74898 for service) (For use without bushing, ref. #72)

1шт.

74890

LEVER ASS'Y - hydraulic control (For use with bushings, ref. #72)

1шт.

62

CAS31375

KNOB

BALL - grip

2шт.

63

NSS

NOT SOLD SEPARAT

SPACER - lever (Order (1) 74849 & (2) 74898 for service) (For use without bushings, ref. #72)

1шт.

64

70148

SHAFT - hydraulic control lever

1шт.

65

W10757S

X

RING - snap

2шт.

71308

STUD

ROD ASS'Y - hydraulic control (Order 70169 for service) (See figure 194, ref. #14 for breakdown)

1шт.

66

70182

ROD

1шт.

66a

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

1шт.

66b

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

71307

ROD ASS'Y - hydraulic control

1шт.

67

71306

STUD

ROD

1шт.

68

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

2шт.

69

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

2шт.

70

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

71

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

72

74898

BUSHING - nylon (Optional) (For levers)

6шт.

73

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT to 3/4" JIC

1шт.

74

218-503

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree extra long male, 3/4" NPT to 3/4" JIC

1шт.

75

71541

TUBE ASS'Y -, Serial Range: valve-manifold

1шт.

76

71545

TUBE ASS'Y -, Serial Range: valve-manifold

1шт.

77

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- special

2шт.

78

71471

COVER

TUBE ASS'Y - manifold, R.H. lower

1шт.

79

71473

TUBE ASS'Y - manifold, R.H. upper

1шт.

R14401

TUBE ASS'Y - manifold, R.H. upper (Used on pull-behind combinations only)

1шт.

80

71475

SCREW

TUBE ASS'Y - manifold, L.H. lower

1шт.

R14397

TUBE ASS'Y - manifold, L.H. lower (Used on pull-behind combinations only)

1шт.

81

71477

NUT

TUBE ASS'Y - manifold, L.H. upper

1шт.

R14399

TUBE ASS'Y - manifold, L.H. (Used on pull-behind combinations only)

1шт.

82

74104

SPACER - tube clamp

2шт.

83

31665

COLLAR CLAMP

PLATE - clamp (Manifold mt'g.)

2шт.

84

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16 - 24 x 2-1/4 (31665 mt'g.)

2шт.

85

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

86

92-5

LOCK WASHER,5/16"

2шт.

87

72211

HOSE

ASS'Y -, Serial Range: manifold-cylinders

4шт.

88

R11383

SPACER

2шт.

89

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT to 5/8" JIC

4шт.

90

71547

TUBE ASS'Y - to cylinder front ports

2шт.

91

71543

TUBE ASS'Y - to cylinder rear ports

2шт.

92

14-560

HHCS - 5/16 - 24 NF x 3-3/4 (70724 mt'g.)

2шт.

93

131-365

LOCK NUT

NUT - lock, 5/16 - 24 NF

2шт.

94

195-21

WASHER,5/16"

plain 5/16"

2шт.

95

31665

COLLAR CLAMP

PLATE - clamp (72211 mt'g.)

4шт.

96

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16 - 24 NF x 2-1/4 (31665 mt'g.)

2шт.

97

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

98

92-5

LOCK WASHER,5/16"

2шт.

99

31665

COLLAR CLAMP

PLATE - clamp (72211 mt'g.)

4шт.

100

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)

2шт.

101

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

102

92-5

LOCK WASHER,5/16"

2шт.

103

72541

RING

BLOCK - clamp

4шт.

104

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(72541 mtg.) Hex, 5/16"-24 x 1 1/4", G5

8шт.

105

195-21

WASHER,5/16"

plain 5/16"

8шт.

106

131-365

LOCK NUT

NUT - lock (5/16 - 24 NF)

8шт.

107

72878

JET

GUARD ASS'Y

2шт.

108

14-1632

BOLT,Hex, 1" - 14 x 2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2 (72878 mt'g.)

4шт.

109

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

110

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain

4шт.

111

72210

SUPPORT - hose clamp

2шт.
