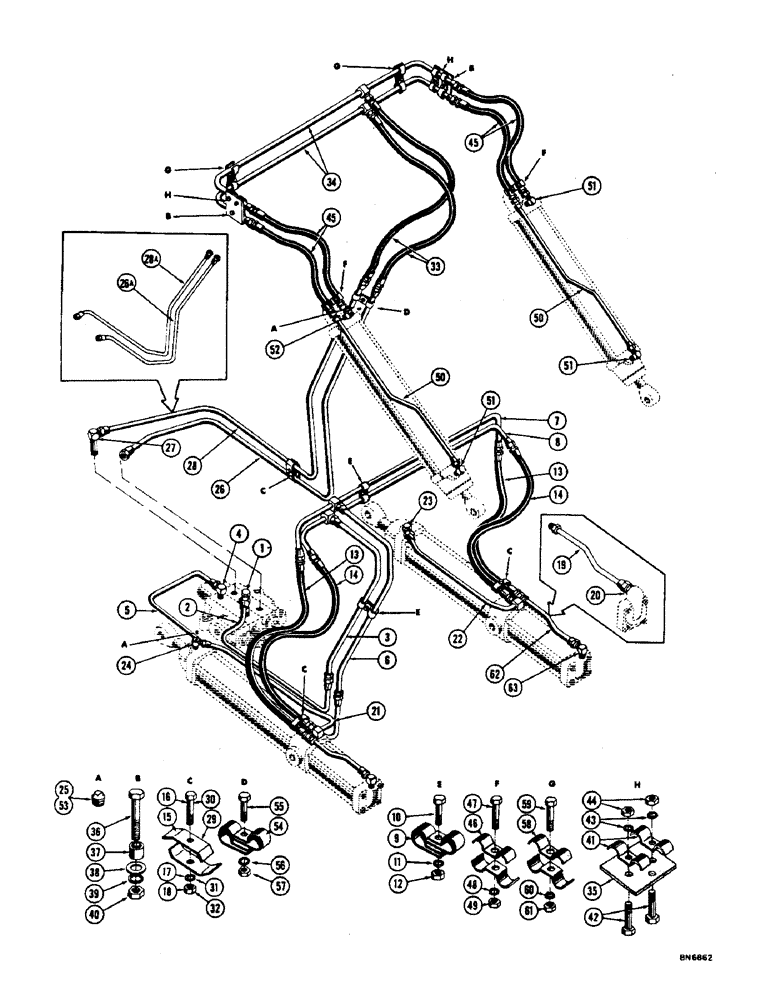

Запчасти Case 1000 (210) - REAR HINGE LOADER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- extra long male (1" NPT x 1" JIC)

1шт.

2

73079

TUBE ASS'Y

1шт.

3

73081

TUBE ASS'Y

1шт.

4

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male (1" NPT x 1" JIC)

1шт.

5

73077

WASHER,30.75" Length

TUBE ASS'Y

1шт.

6

73083

TUBE ASS'Y

1шт.

7

R14351

TUBE ASS'Y

1шт.

8

73066

TUBE ASS'Y

1шт.

9

R11405

CLAMP

- tube (R14351 & 73066 mt'g.)

4шт.

10

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R11405 mtg.) Hex, 5/16"-24 x 1 1/4", G5

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

13

73124

ASS'Y

2шт.

14

73085

HOSE

ASS'Y

2шт.

15

31665

COLLAR CLAMP

CLAMP - hose (73124 & 73085 mt'g.)

4шт.

16

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

19

R13566

TUBE

ASS'Y

2шт.

20

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (3/4" NPT x 3/4" JIC)

2шт.

21

73087

ENGINE FLYWHEEL

TUBE ASS'Y - R.H.

1шт.

22

73088

ENGINE FLYWHEEL

TUBE ASS'Y - L.H.

1шт.

23

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4" NPT x 3/4" JIC)

1шт.

24

R13365

ELBOW - 90 degree special (3/4" NPT x 3/4" JIC)

1шт.

25

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, extended square head

1шт.

26

73071

TUBE ASS'Y - (For tractors with shoe type brakes only)

1шт.

26a

R14649

TUBE ASS'Y - (For tractors with disc type brakes only)

1шт.

27

218-502

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- long, 90 degree male (1" NPT x 1" JIC)

1шт.

28

73072

TUBE ASS'Y - (For tractors with shoe type brakes only)

1шт.

28a

R14647

TUBE ASS'Y - (For tractors with disc type brakes only)

1шт.

29

31665

COLLAR CLAMP

CLAMP - tube (73071 & 73072 mt'g.)

2шт.

30

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)

1шт.

31

92-5

LOCK WASHER,5/16"

1шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

33

73085

HOSE

ASS'Y

2шт.

34

73056

TUBE ASS'Y

2шт.

35

74613

BRACKET - tube support (73056 mt'g.)

2шт.

36

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS - 1/2 - 20 NF x 3 (74613 mt'g.)

2шт.

37

74612

SPACER

2шт.

38

195-33

WASHER,1/2"

- plain

2шт.

39

92-8

LOCK WASHER,1/2"

2шт.

40

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 NF)

2шт.

41

73089

ARMATURE

CLAMP - tube (73056 mt'g.)

4шт.

42

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2 (73089 mt'g.)

4шт.

43

92-5

LOCK WASHER,5/16"

4шт.

44

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

45

74614

HOSE ASS'Y

4шт.

46

73089

ARMATURE

CLAMP - hose (74614 mt'g.)

4шт.

47

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF X 1-1/2 (73089 MT'G.)

2шт.

48

92-5

LOCK WASHER,5/16"

2шт.

49

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

50

73075

TUBE ASS'Y

2шт.

51

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4" NPT x 3/4 " JIC)

3шт.

52

50852

ELBOW - 90 degree special (Order (1) R14846 and (1) 221-11 for service) Flg, USR, 3/4"-10

1шт.

53

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, extended square head

1шт.

54

R11405

CLAMP

- tube (73071 & 73073 mt'g.)

2шт.

55

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R11405 mtg.) Hex, 5/16"-24 x 1 1/4", G5

1шт.

56

92-5

LOCK WASHER,5/16"

1шт.

57

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

58

R15257

CLAMP

- tube (R14723 & R14718 mt'g only)

4шт.

59

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)

2шт.

60

92-5

LOCK WASHER,5/16"

2шт.

61

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

62

73069

TUBE ASS'Y - (Optional) (See ref. #19)

2шт.

63

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4" NPT x 3/4" JIC) (Optional) (See ref. #20)

2шт.
