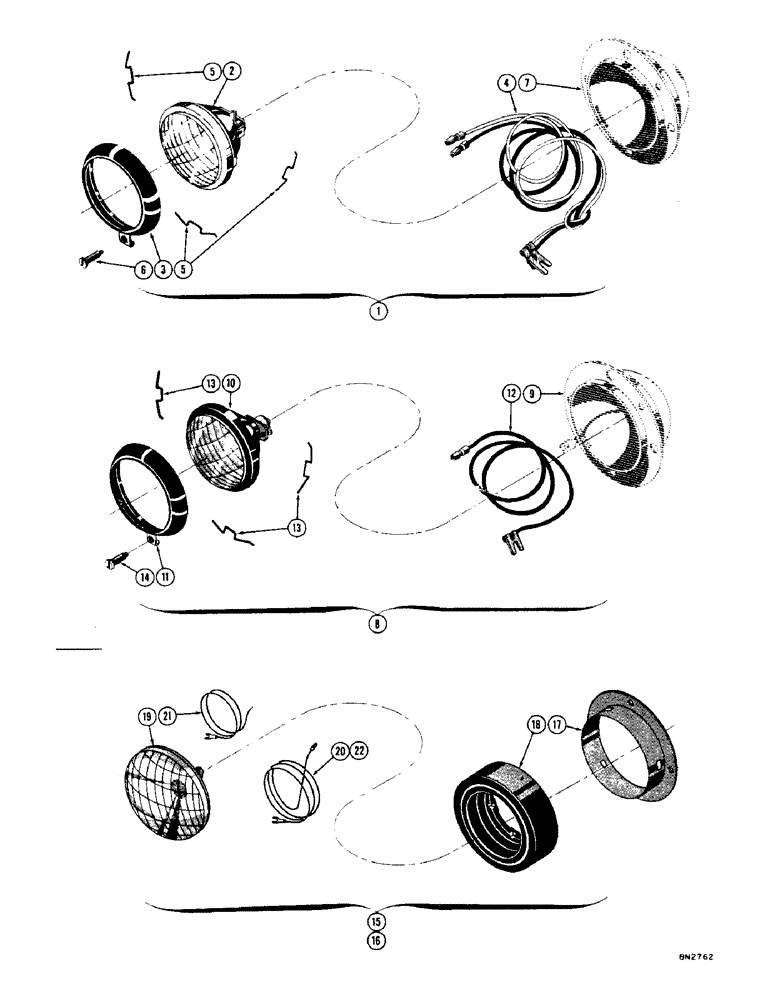

Запчасти Case 1000 (086) - ELECTRIC LIGHTING (06) - ELECTRICAL SYSTEMS

1

72570

LIGHT ASS'Y - tail

2шт.

2

R16790

X

UNIT ASS'Y - 12 volt sealed beam

1шт.

3

73765

DOOR ASS'Y - tail light

1шт.

4

73766

ELECTRIC CABLE

WIRING ASS'Y - tail light

1шт.

5

73767

GROUND CABLE

SPRING - unit retainer

3шт.

6

73768

SCREW - door retainer

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASS'Y - tail light

1шт.

8

72343

LIGHT ASS'Y - head

2шт.

9

NSS

NOT SOLD SEPARAT

BODY ASS'Y - head light

1шт.

10

R16790

X

UNIT ASS'Y - 12 volt sealed beam

1шт.

11

73772

DOOR ASS'Y - head light

1шт.

12

73771

WIRE ASS'Y - head light

1шт.

13

73767

GROUND CABLE

SPRING - unit retaining

3шт.

14

73768

SCREW - door retaining

1шт.

15

R17308

LAMP

LIGHT ASS'Y - (Rubber mt'd.) (Optional)

1шт.

16

R17309

LAMP

LIGHT ASS'Y - TAIL (Rubber mt'd. (Optional)

1шт.

17

R17306

FRAME

1шт.

18

R16888

X

RETAINER - (Rubber)

1шт.

19

R16790

X

LAMP

1шт.

20

R17305

WIRE

1шт.

21

R17303

WIRE - head light only

1шт.

22

R17304

WIRE - tail light only

1шт.
