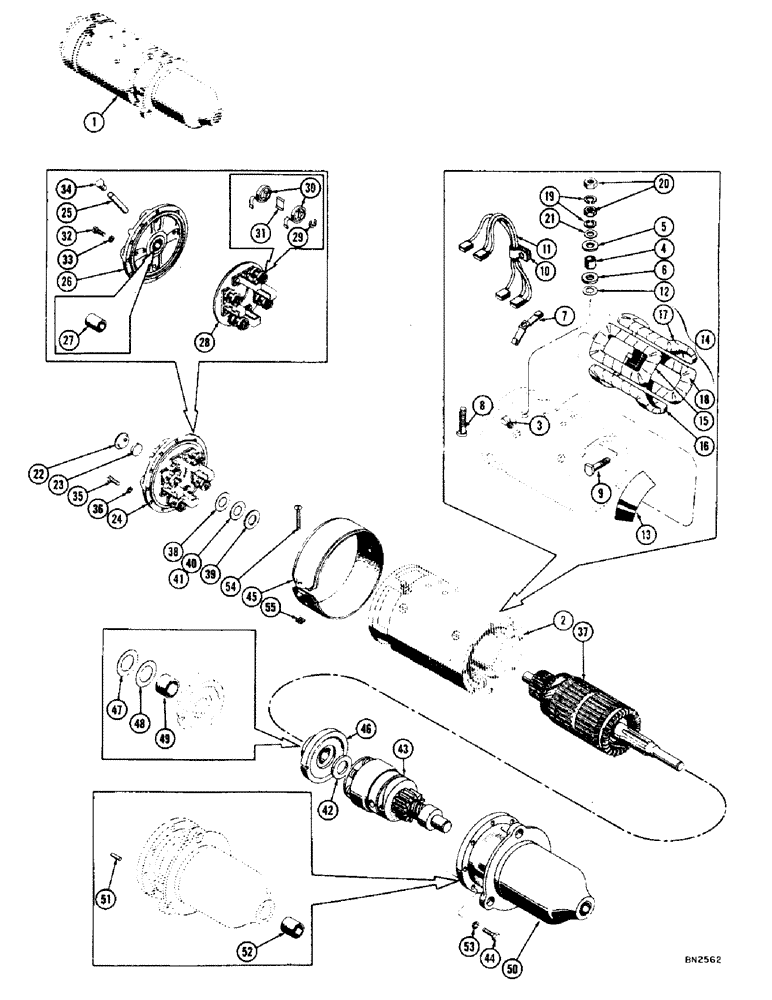

Запчасти Case 1000 (080) - 73101 STARTER (06) - ELECTRICAL SYSTEMS

1

73101

ENGINE FLYWHEEL

STARTER ASS'Y

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME & FIELD ASS'Y

1шт.

3

GK-38

SCREW - pole shoe

8шт.

4

MAW-37

BUSHING - insulation terminal stud

1шт.

5

MAX-44

WASHER - plain terminal stud outer

2шт.

6

MGD-119

WASHER - insulation terminal stud

2шт.

7

MBD-231

CONNECTOR - terminal stud

1шт.

8

MBD-233A

STUD - terminal

1шт.

9

MBD-121

STUD - terminal

1шт.

10

MBD-34

TERMINAL - brush

1шт.

11

MBD-10125

BRUSH - set

1шт.

12

MC-51A

WASHER - plain, terminal stud inner

1шт.

13

MR-32

INSULATION - field connection

1шт.

14

MBD-3005S

FIELD COIL PACKAGE

1шт.

15

MBD-1007S

COIL - field upper left

1шт.

16

MBD-1008S

COIL - field lower left

1шт.

17

MBD-1009S

COIL - field upper right

1шт.

18

MBD-1010S

COIL - field lower right

1шт.

19

12X-201

LOCKWASHER - terminal stud 3/8

3шт.

20

8X-830

NUT - terminal stud hex. (3/8 - 16)

2шт.

21

MN-47A

WASHER - plain, terminal stud 3/8

1шт.

22

GAL-40A

COVER - bearing commutator end

1шт.

23

MAD-110

FELT

1шт.

24

MBD-2236A

HEAD ASS'Y - commutator end

1шт.

25

MBD-150

WICK - felt

1шт.

26

MBD-1236

HEAD ASS'Y - partial commutator end

1шт.

27

GBF-79

BEARING - asbestos bronze

1шт.

28

MBD-2079

PLATE ASS'Y - brush

1шт.

29

GG-81

CLIP - brush holder post

4шт.

30

MBD-19

SPRING - brush

8шт.

31

MBD-47

SPACER - spring brush

4шт.

32

8X-120

SCREW - brush plate fillister head #10 - 32 x 5/8

4шт.

33

12X-196

LOCKWASHER - brush plate screw #10

4шт.

34

X-1573

OILER

1шт.

35

MBD-258

SCREW - commutator end head, fillister head #10 - 32 x 5/8

12шт.

36

12X-196

LOCKWASHER - commutator end head screw #10

12шт.

37

MBD-2288

ARMATURE ASS'Y

1шт.

38

MAK-61

WASHER - thrust commutator end

1шт.

39

MBD-311

WASHER - thrust 1/32" thick

2шт.

40

MU-54

WASHER - thrust commutator end 1/32" thick

1шт.

41

MU-54B

WASHER - thrust commutator end 3/64" thick

1шт.

42

MBD-247A

WASHER - thrust

1шт.

43

EBB-27

BENDIX DRIVE ASS'Y - (Eclipse #A3344)

1шт.

44

MBD-254

SCREW - pinion housing, hex. head, #10 - 32 x 7/8

8шт.

45

MBD-1024K

BAND - cover

1шт.

46

MBD-1315

BEARING ASS'Y

1шт.

47

MBD-312

RETAINER - felt

1шт.

48

MBD-313

WASHER - felt

1шт.

49

MCD-314

BEARING - asbestos bronze

1шт.

50

PS-1228

HOUSING ASS'Y - pinion

1шт.

51

MAB-88

PIN - dowel

1шт.

52

MBD-257

BEARING - asbestos bronze

1шт.

53

12X-196

LOCKWASHER - housing

8шт.

54

8X-714

SCREW - cover, band round head #10 - 32 x 1-1/2

1шт.

55

8X-794

NUT - cover band, square #10 - 32

1шт.
