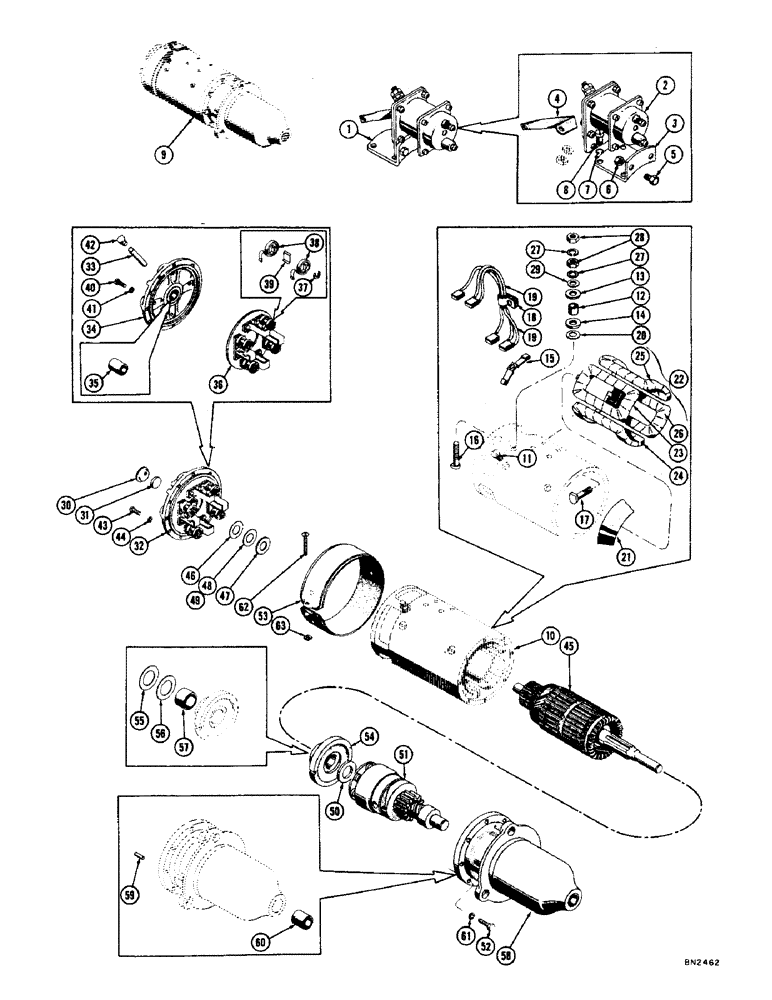

Запчасти Case 1000 (076) - 74132 STARTER (06) - ELECTRICAL SYSTEMS

74132

DRAWBAR SUPPORT

STARTER & SOLENOID ASS'Y

1шт.

1

MBD1252F

SOLENOID & BRACKET ASS'Y

1шт.

2

09867AB

SOLENOID ASS'Y - (Auto-lite #WSM-4101A)

1шт.

3

MBD252

BRACKET

1шт.

4

MBD414

CONNECTOR

1шт.

5

8X-343

SCREW - switch mt'g. hex. head (1/4 - 28 x 5/8)

2шт.

6

XA-595

NUT - switch mt'g. screw hex. (1/4 - 28)

2шт.

7

12X-199

LOCKWASHER - bracket mt'g. screw 1/4

4шт.

8

8X-905

SCREW - bracket mt'g. fillister head 1/4 - 20 x 7/16

4шт.

9

NSS

NOT SOLD SEPARAT

STARTER ASS'Y

1шт.

10

NSS

NOT SOLD SEPARAT

FRAME & FIELD ASS'Y

1шт.

11

GK-38

SCREW - pole shoe

8шт.

12

MAW-37

BUSHING - insulation terminal stud

1шт.

13

MAX-44

WASHER - plain terminal stud outer

2шт.

14

MBD-119

WASHER - insulation terminal stud

2шт.

15

MBD-231

CONNECTOR - terminal stud

1шт.

16

MBD-233A

STUD - terminal

1шт.

17

MBD-413

STUD - terminal

1шт.

18

MBD-34

TERMINAL - brush

1шт.

19

MBD-1012S

BRUSH - set

1шт.

20

MC-51A

WASHER - plain, terminal stud inner

1шт.

21

MR-32

INSULATION - field connection

1шт.

22

MBD-3005S

FIELD COIL PACKAGE

1шт.

23

MBD-1007S

COIL - field upper left

1шт.

24

MBD-1008S

COIL - field lower left

1шт.

25

MBD-1009S

COIL - field upper right

1шт.

26

MBD-1010S

COIL - field lower right

1шт.

27

12X-201

LOCKWASHER - terminal stud 3/8

4шт.

28

8X-830

NUT - terminal stud hex. (3/8 - 16)

4шт.

29

MN-47B

WASHER - plain, terminal stud 3/8

1шт.

30

GAL-40A

COVER - bearing commutator end

1шт.

31

MAD-110

FELT

1шт.

32

MBD-2236A

HEAD ASS'Y - commutator end

1шт.

33

MBD-150

WICK - felt

1шт.

34

MBD-1236

HEAD ASS'Y - partial commutator end

1шт.

35

GBF-79

BEARING - asbestos bronze

1шт.

36

MBD-2079

PLATE ASS'Y - brush

1шт.

37

GG-81

CLIP - brush holder post

4шт.

38

MBD-19

SPRING - brush

8шт.

39

MBD-47

SPACER - spring brush

4шт.

40

8X-120

SCREW - brush plate fillister head #10 - 32 x 5/8

4шт.

41

12X-196

LOCKWASHER - brush plate screw #10

4шт.

42

X-1573

OILER

1шт.

43

MBD-258

SCREW - commutator end head, fillister head #10 - 32 x 5/8

12шт.

44

12X-196

LOCKWASHER - commutator head screw #10

12шт.

45

MBD-2288

ARMATURE ASS'Y

1шт.

46

MAK-61

WASHER - thrust commutator end

1шт.

47

MBD-311

WASHER - thrust, 1/32" thick

2шт.

48

MU-54

WASHER - thrust commutator end, 1/32" thick

1шт.

49

MU-54B

WASHER - thrust commutator end, 3/64" thick

1шт.

50

MBD-247A

WASHER - thrust

1шт.

51

EBB-27

BENDIX DRIVE ASS'Y - (Eclipse #A3344)

1шт.

52

MBD-254

SCREW - pinion housing, hex. head #10 - 32 x 7/8

8шт.

53

MBD-1024K

BAND - cover

1шт.

54

MBD-1315

BEARING ASS'Y

1шт.

55

MBD-312

RETAINER - felt

1шт.

56

MBD-313

WASHER - felt

1шт.

57

MBD-314

BEARING - asbestos bronze

1шт.

58

PS-1228

HOUSING ASS'Y - pinion

1шт.

59

MAB-88

PIN - dowel

1шт.

60

MBD-257

BEARING - asbestos bronze

1шт.

61

12X-196

LOCKWASHER - housing screw #10

8шт.

62

8X-714

SCREW - cover, band round head #10 - 32 x 1-1/2

1шт.

63

8X-794

NUT - cover band, square #10 - 32

1шт.
