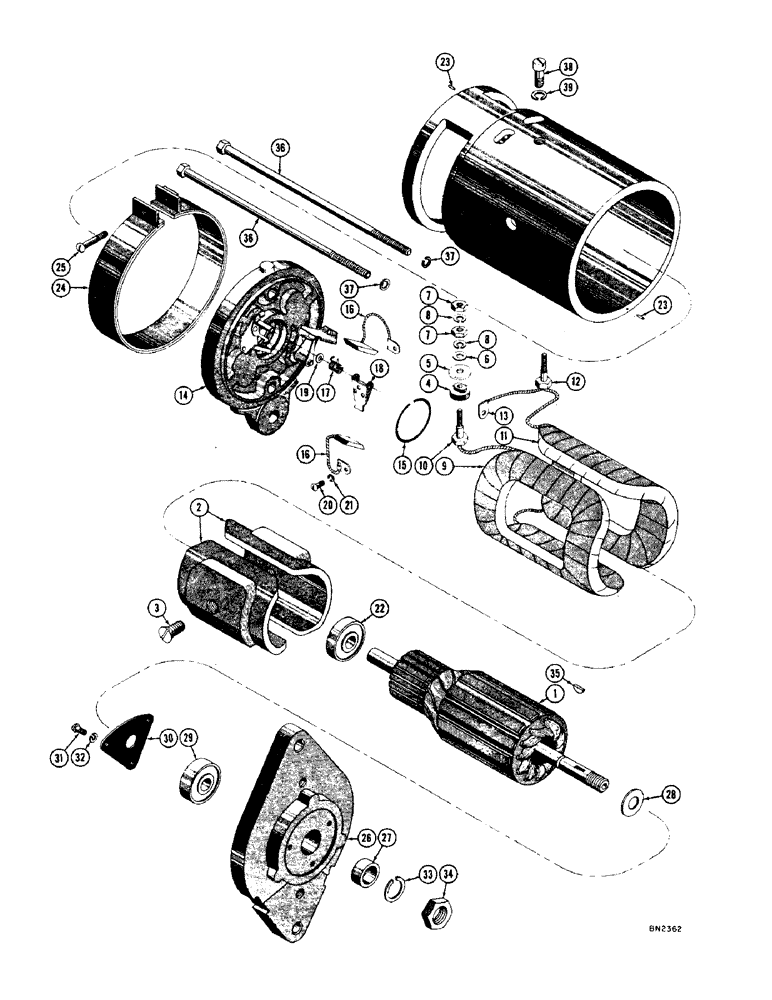

Запчасти Case 1000 (074) - R18000 GENERATOR (06) - ELECTRICAL SYSTEMS

R18000

GENERATOR

ASS'Y

1шт.

1

R15905

ARMATURE

1шт.

2

R15075

SHOE - pole

2шт.

3

R15076

SCREW - pole shoe

2шт.

4

R15077

X

INSULATOR - terminal

2шт.

5

R15078

WASHER - insulation, terminal stud

2шт.

6

R15079

WASHER

- plain, terminal stud

2шт.

7

129-18

NUT,#12-24

- terminal stud

4шт.

8

R15080

TOOTH

WASHER - lock, terminal stud

4шт.

9

R15081

COIL - field, L.H.

1шт.

10

R15084

X

STUD - terminal

1шт.

11

R15083

COIL

- field, R.H.

1шт.

12

R15084

X

STUD - terminal

1шт.

13

R15085

CLIP -, Serial Range: terminal-brush

1шт.

14

R15086

FUNNEL

FRAME - commutator end & brush holder ass'y

1шт.

15

R15087

RING - bearing retainer

1шт.

16

R4286

BRUSH, COMMUTATOR

BRUSH

2шт.

17

R15089

SPRING - brush

2шт.

18

R15090

ARM

- brush

2шт.

19

R15091

WASHER - spacer, brush arm

2шт.

20

R15232

SCREW - brush lead attaching

2шт.

21

R15093

X

WASHER - lock, brush lead attaching

2шт.

22

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, commutator end

1шт.

23

R15095

PIN - dowel, commutator end & drive end

2шт.

24

R15096

BAND - cover

1шт.

25

R15097

SCREW - cover band

1шт.

26

R15098

FRAME - drive end

1шт.

27

R15099

COLLAR - spacer (Outside drive end)

1шт.

28

R15100

COLLAR - spacer (Inside drive end)

1шт.

29

R18193

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

30

R15101

PLATE

- ball bearing retainer, drive end

1шт.

31

R15102

SCREW - bearing retainer plate mt'g.

3шт.

32

R15040

X

WASHER - lock, bearing retainer plate screw

3шт.

33

R15104

WASHER - lock, shaft nut

1шт.

34

R15105

X

NUT - shaft

1шт.

35

R15047

X

KEY - Woodruff

1шт.

36

R15106

BOLT

- thru

2шт.

37

R15070

WASHER - lock, thru bolt

2шт.

38

R15107

SCREW - frame

1шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Frame 1/4"

1шт.
