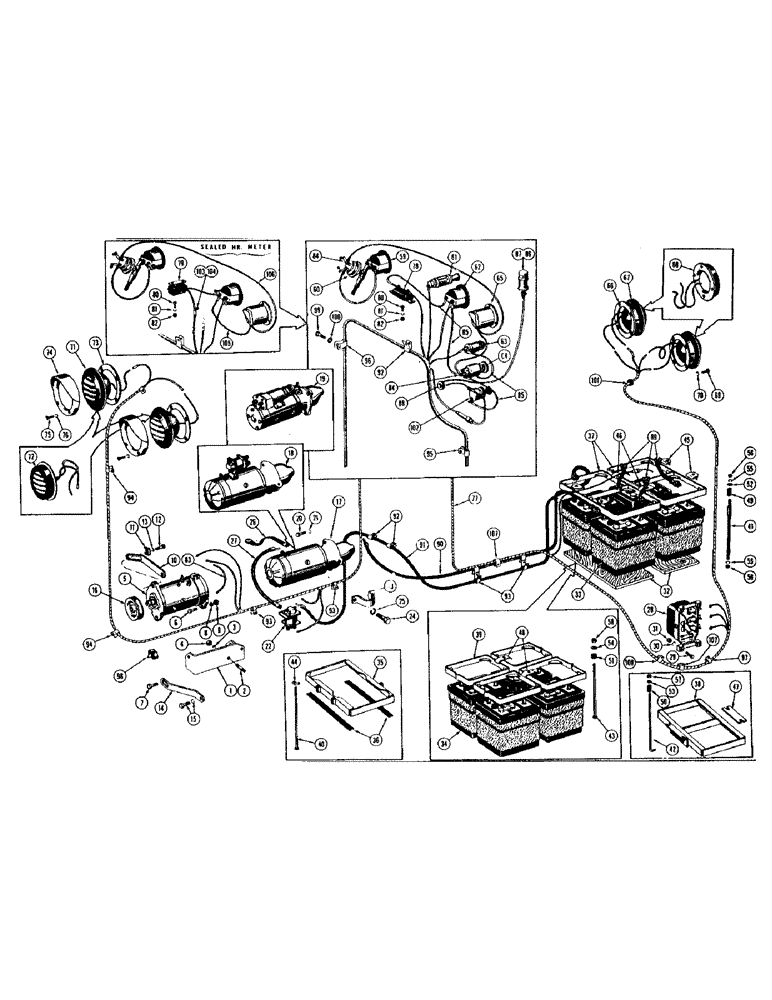

Запчасти Case 1000 (064) - ELECTRICAL SYSTEM, TYPE II (06) - ELECTRICAL SYSTEMS

1

R14421

BRACKET - generator (Used with Type II crankcase only)

1шт.

2

REF

INSTRUCTION

STUD - 1/2 - 13 NC x 1-5/8 (R14421 mt'g.)

2шт.

3

R15762

WASHER - lock 1/2

2шт.

4

131-10

NUT,1/2"-13, GB

2шт.

5

R18000

GENERATOR

ASSY - Delco (See figure 74 for breakdown) (Used with Type II crankcase only)

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Rear hole generator bracket)

1шт.

7

11261

HOSE

HHCS - 3/8 - 16 NC x 1-1/2 (Front hole generator bracket)

1шт.

8

R14424

SPACER - generator to generator bracket rear

1шт.

9

17379

SPARE PART NUT - hex. (3/8 - 24 NF)

2шт.

10

R14826

STRAP - generator adjustment

1шт.

11

30360

SPARE PART CLIP - generator adjustment strap

1шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Adjustment strap to generator)

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

R14422

SUPPORT - generator bracket

1шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

& LOCKWASHER - (Support mt'g.)

1шт.

16

R14423

PULLEY - generator

1шт.

17

74132

DRAWBAR SUPPORT

STARTER ASSY - (Auto-lite - Type I) (See figure 76 for breakdown)

1шт.

18

73101

ENGINE FLYWHEEL

SPARE PART STARTER & SOLENOID ASSY - (Auto-lite - Type II) (See figure 80 for breakdown)

1шт.

19

R18001

SPARE PART STARTER & SOLENOID ASSY - (Delco - Type III) (See figure 82 for breakdown)

1шт.

20

73440

BUMPER

SCREW - 5/8"-11 NC x 1-1/2 (74132 mt'g. only)

3шт.

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

SCREW - 5/8"-11 NC x 1-1/4 (73101 or R18001 mt'g. only)

3шт.

21

92-10

LOCK WASHER,5/8"

3шт.

22

73433

SOLENOID SWITCH

Solenoid starter (Used with 74132 starter only)

1шт.

23

72284

SET,PISTON RINGS+0.4

SPARE PART STRAP - solenoid switch (73433 mt'g. only)

1шт.

24

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(72284 mt'g.)

2шт.

25

92-6

LOCK WASHER,3/8"

(72284 mt'g.)

2шт.

26

72134

SPRING

SPARE PART STRAP - engine ground (Used with 74132 starter only)

1шт.

27

72288

SPARE PART CABLE - jumper (Used with 74132 starter only)

1шт.

28

R14827

SPARE PART REGULATOR - voltage (Delco)

1шт.

29

47105

GASKET

FHMS - 1/4 - 28 NF x 1 (R14827 mt'g.) (Type I)

3шт.

76-410

SPARE PART 1/4-28 NF x 5/8 (R14827 mt'g.) (Type II)

3шт.

30

92-4

LOCK WASHER,1/4"

3шт.

31

25-114

NUT,1/4"-28, G5

Reg. SF hex, (Used with 47105 screw only)

3шт.

32

72372

INSERT

BOARD - battery bottom

2шт.

33

35780

WASHER

BATTERY - dry type (Type I - 8-7/8 inches long)

4шт.

34

R12765

X

BATTERY - dry type (Type II - 10-1/4 inches long)

4шт.

35

72145

SUPPORT

SPARE PART HOLDDOWN ASSY - battery (Type I - used with 35780 battery only)

2шт.

36

72811

CLEVIS PIN,5/8" x 1.72" L

BUMPER STRIP - rubber (Used with 72145 holddown only)

4шт.

37

72853

SPARE PART HOLDDOWN ASSY - battery (Type II - used with 35780 battery only) (Order 74271 for service)

2шт.

38

74271

SPARE PART HOLDDOWN ASSY - battery (Type III - used with 35780 battery only)

2шт.

39

R13004

CLAMP

HOLDDOWN ASSY - battery (Type IV - used with R12765 battery only)

4шт.

40

13-8176

BOLT (MACHINE),Hex, 1/2" - 13 x 11", Gr 5

(72145 mounting only)

6шт.

41

72944

GEAR

SPARE PART BOLT ASSY - battery holddown (72853 mt'g. only) (Order 74270 for service)

6шт.

42

74270

SPARE PART BOLT - battery holddown (74271 mt'g. only)

6шт.

43

13-5160

BOLT,Hex, 5/16" - 18 x 10", Gr 5

(R13004 mt'g. only)

6шт.

44

129-400

WING NUT,1/2"-13

(Used with 13-8176 bolt only)

6шт.

45

72848

BRACKET ASSY - (Used with 72853 holddown only)

4шт.

46

72849

PLATE - battery holddown (Used with 72853 holddown only)

2шт.

47

74338

SPACER - battery holddown (Used with 74271 holddown only)

1шт.

48

R13800

PLATE - holddown (Used with R13004 holddown only)

2шт.

49

72851

RIM

SPRING - battery holddown (Used with 72944 bolt only)

6шт.

50

O4076C

SPRING - battery holddown (Used with 74270 bolt only)

6шт.

51

G46096

RETAINER

BUSHING - rubber, battery frame bolt (Used with 13-5160 bolt only)

6шт.

52

195-33

WASHER,1/2"

(Used with 72944 bolt only)

6шт.

53

195-25

WASHER,3/8"

(Used with 74270 bolt only)

6шт.

54

195-21

WASHER,5/16"

(Used with 13-5160 bolt only)

6шт.

55

92-8

LOCK WASHER,1/2"

(Used with 72944 bolt only)

12шт.

56

25-118

NUT,1/2"-20, G5

Reg. SF hex (Used with 72944 bolt only)

12шт.

57

25-116

NUT,Hex, 3/8"-24, G5

(Used with 74270 bolt only)

6шт.

58

131-4

LOCK NUT,5/16"-18, GB

(Used with 13-5160 bolt only)

6шт.

59

REF

INSTRUCTION

GAUGE ASSY - engine oil pressure (See figure 88, ref #2)

1шт.

60

REF

INSTRUCTION

SWITCH ASSY - pressure (See figure 88, ref. #9)

1шт.

61

REF

INSTRUCTION

LIGHTER ASSY - cigar (See figure 88, ref. #14)

1шт.

62

REF

INSTRUCTION

AMMETER ASSY - (See figure 88, ref. #5)

1шт.

63

REF

INSTRUCTION

SWITCH ASSY - push button starter (See figure 88, ref #13)

1шт.

64

REF

INSTRUCTION

SWITCH ASSY - ignition (See figure 88, ref. #12)

1шт.

65

REF

INSTRUCTION

METER ASSY - engine hours (See figure 88, ref. #6)

1шт.

66

NLS

NO LONGER SERVICED

Taillight (Used with 72570 light only)

2шт.

67

72570

SPARE PART LIGHT ASSY - tail (Type I) (See figure 86 for breakdown)

2шт.

68

R17309

LAMP

ASSY - tail (Type II) (See figure 86 for breakdown)

2шт.

69

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS (72570 or R17309 mt'g.)

8шт.

70

193-28

LOCK WASHER,Int Tooth, 1/4"

8шт.

71

72343

SPARE PART LIGHT ASSY - head (Type I) (See figure 86 for breakdown)

2шт.

72

R17308

LAMP

ASSY - head (Type II) (See figure 86 for breakdown)

2шт.

73

NLS

NO LONGER SERVICED

Headlight (Used with 72343 light only)

2шт.

74

R16791

SPARE PART RING - headlight mt'g.

2шт.

75

73-416

BOLT (MACHINE),Flat, 1/4"

FHMS - 1/4 - 20 NC x 1 (R16791 mt'g)

8шт.

76

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

8шт.

77

R13794

SPARE PART HARNESS ASSY - wiring (Type I - used with R13981 circuit breaker only) (Order R17874 and R19141 for service)

1шт.

R17874

SPARE PART HARNESS ASSY - wiring (Type II - used with R19141 circuit breaker only)

1шт.

78

R13981

SPARE PART BREAKER - circuit (Type I) (Order Kit R3704 for service)

1шт.

79

R19141

BREAKER

Circuit (Type II)

1шт.

80

174-77

RHMS - #8 - 36 x 1/2 (R13981 or R19141 mt'g.)

2шт.

81

192-6

LOCK WASHER,#8

2шт.

82

225-14208

NUT,#8-36

Hex

2шт.

83

74937

WIRE - jumper

1шт.

84

71217

TERMINAL - hour meter wires

4шт.

85

71214

INSERT

WIRE ASSY - jumper

4шт.

86

71420

SPARE PART ASSY - dash

1шт.

87

74625

NO LONGER SERVICED

BULB - light

1шт.

88

49566

GROMMET

Rubber

1шт.

89

72176

CABLE

Jumper

3шт.

90

R13793

CABLE

Battery ground

1шт.

91

R14556

CABLE

Battery

1шт.

92

49838

CLAMP

Wiring

3шт.

93

49774

CLAMP

Wiring

6шт.

94

51200330

CLAMP

Wiring

2шт.

95

49854

CLAMP

Wiring

1шт.

96

49833

CLAMP

Wiring

1шт.

97

49852

PTO SHAFT

Wiring

1шт.

98

49876

BUMPER

CLAMP - WIRING

1шт.

99

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

(49833 mtg.)

1шт.

100

92-4

LOCK WASHER,1/4"

1шт.

101

74089

BLEEDER

GROMMET - taillight casting

1шт.

102

REF

INSTRUCTION

SWITCH ASSY - lights (See figure 88, ref. #11)

1шт.

103

NSS

NOT SOLD SEPARAT

CLIP - tamper-proof

4шт.

104

NSS

NOT SOLD SEPARAT

SEAL - hour meter

7шт.

105

R22835

WIRE ASSY

1шт.

106

R22836

WIRE ASSY

1шт.

107

79836

CLAMP - wiring

2шт.

108

49851

SHIELD

Wiring

1шт.

R3704

SPARE PART KIT - circuit breaker

1шт.

R19141

BREAKER

CIRCUIT, 30 amp.

1шт.

R18653

TERMINAL STRIP

15 amp.

1шт.

R18652

X

CONNECTOR WIRE

1шт.
