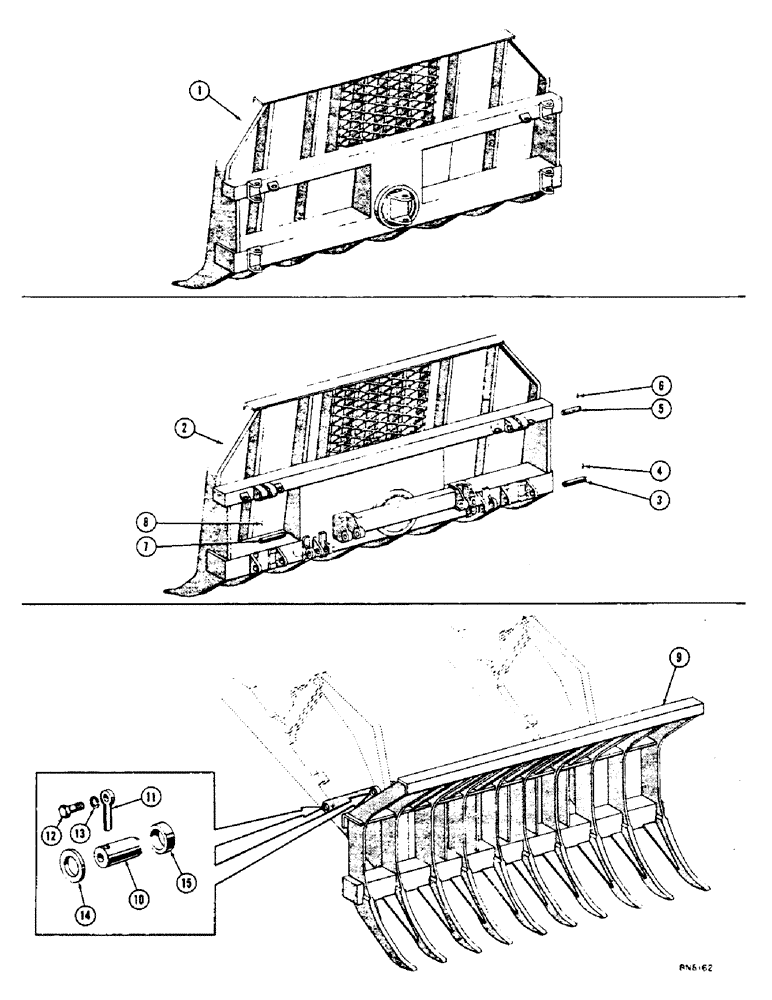

Запчасти Case 1000 (254) - BRUSH RAKE AND STACKER (05) - UPPERSTRUCTURE CHASSIS

1

R11289

RAKE - brush (Angle Dozer only)

1шт.

2

R10924

RAKE - brush (Bull Dozer only)

1шт.

3

R10917

PIN - mt'g. bracket

2шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

5

R10918

PIN - lift cylinder

2шт.

6

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

7

R10916

PIN - push beam

2шт.

8

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

9

R13541

RAKE - brush (Loader only)

1шт.

R2796

KIT - pin

1шт.

10

R16675

AXLE PIN

PIN

4шт.

11

R17756

ROD,12.7mm OD x 109.54mm L

- end

4шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

R15112

SPACER

4шт.

15

R14481

BUSHING

SPACER

4шт.
