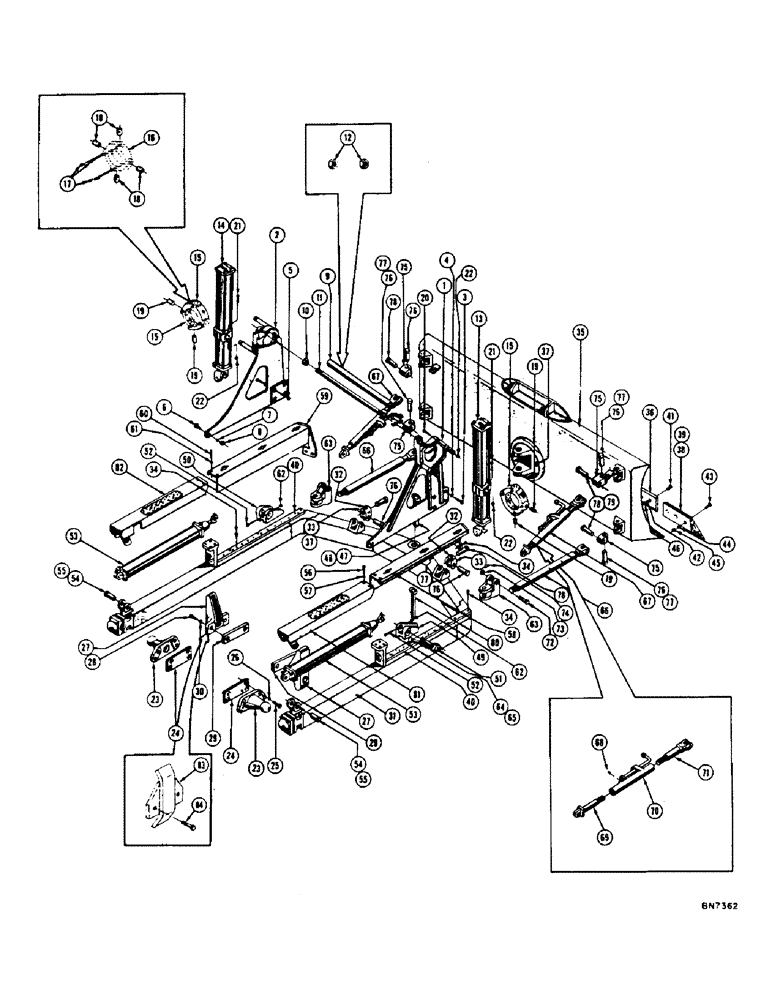

Запчасти Case 1000 (230) - HYDRAULIC ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

R13978

BRACKET ASS'Y - cylinder, R.H.

1шт.

2

R13979

BRACKET ASS'Y - cylinder, L.H.

1шт.

3

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4 - 16 NF x 2 (R13978 & R13979 mt'g.)

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex. (3/4 - 16 NF)

4шт.

6

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-3/4 (R13978 & R13979 mt'g.)

2шт.

7

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

8

25-1116

NUT,1"-14, G5

- reg. SF hex. (1 - 14 NF)

2шт.

9

70388

SPACER - tie rod (Optional)

1шт.

10

25-1116

NUT,1"-14, G5

- reg. SF hex (1 - 14 NF)

2шт.

11

74102

ROD - tie

1шт.

12

131-370

LOCK NUT

NUT - lock (1 - 14 NF)

2шт.

13

70743

CYLINDER ASS'Y - hydraulic, R.H. (See figure 268 for breakdown)

1шт.

14

70744

CYLINDER ASS'Y - hydraulic, L.H. (See figure 268 for breakdown)

1шт.

15

70411

YOKE ASS'Y - cylinder

2шт.

16

NSS

NOT SOLD SEPARAT

YOKE

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

3шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

70332

BUSHING

4шт.

19

70333

PIN - (70411 mt'g.)

8шт.

20

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS - 3/8 - 24 NF x 3-1/2 (70333 mt'g.)

4шт.

21

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS - 3/8 - 24 NF x 4-1/2 (70333 mt'g.)

4шт.

22

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8 - 24 NF

8шт.

23

70305

TRUNNION - push

2шт.

24

70385

BLOCK - trunnion (Optional)

2шт.

25

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4 (70305 mt'g.)

8шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

27

70377

BRACKET - rub (Used with non-reinforced track frames only)

2шт.

28

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4 - 16 NF x 2-1/4 (70377 mt'g.)

4шт.

29

70734

WASHER

BLOCK - rub bracket (Optional)

2шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

31

70714

SCREW

"C" FRAME ASS'Y

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

33

70328

YOKE

UNIVERSAL - piston rod

2шт.

34

164-135

HEX SOC SCREW,Flat Hd, 5/8" - 18 x 1 1/2"

FHCS - 5/8 - 18 NF x 1-1/2 (70357 mt'g.)

24шт.

35

70730

BOW

MOLDBOARD ASS'Y - (Without cutting edges)

1шт.

36

70725

BLADE - center cutting

1шт.

37

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

3шт.

38

70375

SHARE

BIT - end, R.H.

1шт.

39

70376

BLADE

BIT - end, L.H.

1шт.

40

70357

SCREW

PLATE - slide

2шт.

41

19-832

BOLT

- plow, 1/2 - 13 NC x 2 (70391 mt'g.)

22шт.

42

92-8

LOCK WASHER,1/2"

22шт.

43

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8 - 11 NC x 2-1/4 (70375 & 70376 mt'g.)

6шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

45

25-1010

NUT,5/8"-11, G5

6шт.

46

25-108

NUT,1/2"-13, G5

- reg. SF hex. (1/2 - 13 NC)

22шт.

47

70387

PIN

ASS'Y - pivot

1шт.

48

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, 3/8" x 3", Slotted

1шт.

49

70358

BRACKET - slide, R.H.

1шт.

50

70359

BRACKET - slide, L.H.

1шт.

51

70352

PIN - 70316 & 70350 mt'g.)

2шт.

52

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS - 3/8 - 24 NF x 3-1/2

2шт.

53

70350

PIN

CYLINDER ASS'Y - hydraulic (See figure 266(1) for breakdown)

2шт.

54

R18864

PIN

- (70350, 70400, 70401 mt'g.)

2шт.

55

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

56

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (70400 & 70401 mt'g.)

4шт.

REFER TO ILLUSTRATION PAGE,SWIVEL AND RING KIT R2594.

1шт.

57

92-8

LOCK WASHER,1/2"

4шт.

58

70403

GUARD ASS'Y - piston rod, R.H.

1шт.

59

70404

GUARD ASS'Y - piston rod, L.H.

1шт.

60

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (70403 & 70404 mt'g.)

4шт.

61

92-8

LOCK WASHER,1/2"

4шт.

62

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

2шт.

63

70316

BRACKET

- strut

2шт.

64

R18866

PIN

- (70316 mt'g.)

2шт.

65

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70352 mt'g.) 3/8" x 2 1/4", Slotted

2шт.

66

70343

STRUT ASS'Y - lower

2шт.

67

70412

STAY

STRUT ASS'Y - upper

2шт.

68

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

1шт.

69

70340

SCREW

ASS'Y - thread, L.H.

1шт.

70

R16408

TURNBUCKLE

ASS'Y

1шт.

71

70337

SCREW

ASS'Y - top strut

1шт.

72

70378

STAY

BOLT - strut

2шт.

73

25-2316

SLOTTED NUT

- castellated hex., 1 - 14 NF (70412 mt'g.)

2шт.

74

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

75

70315

UNIVERSAL JOINT

UNIVERSAL

4шт.

76

R18864

PIN

- (70315 mt'g.)

6шт.

77

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

6шт.

78

70349

PIN

- (70412, 70343, & 70743 mt'g.)

6шт.

79

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

6шт.

80

70381

PIN ASS'Y - slide bhracket

2шт.

81

70400

GUARD ASS'Y - cylinder, R.H.

1шт.

82

70401

GUARD ASS'Y - cylinder, L.H.

1шт.

83

R19558

BRACKET - rub (Used with reinforced track frames only)

2шт.

84

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4 - 16 NF x 2 (R19558 mt'g.)

4шт.
