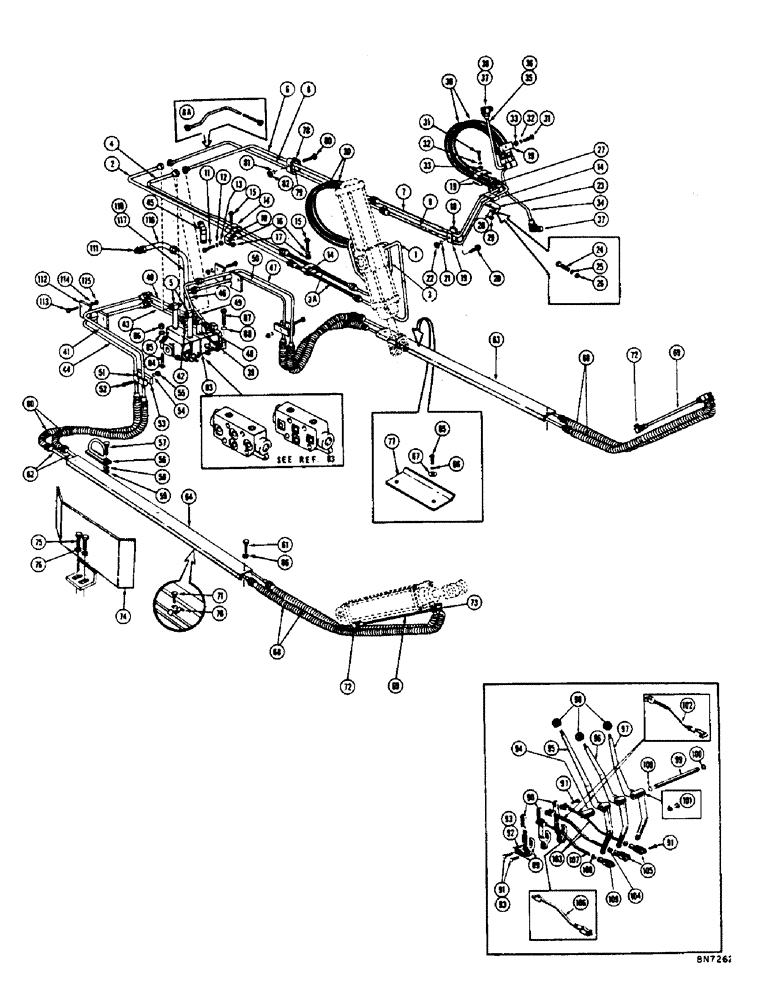

Запчасти Case 1000 (224) - HYDRAULIC CROWN TILT BULLDOZER HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

R16762

TUBE ASS'Y - valve to R.H. lift cylinder

1шт.

2

71549

TUBE ASS'Y - valve to R.H. lift cylinder

1шт.

3

R16764

TUBE ASS'Y - valve to R.H. lift cylinder

1шт.

3a

35968

STRAP

HOSE ASS'Y - valve to R.H. lift cylinder

2шт.

4

71555

ARM

TUBE ASS'Y - valve to R.H. lift cylinder

1шт.

5

72119

TEE - special

2шт.

6

72519

TUBE ASS'Y - valve to L.H. lift cylinder

1шт.

7

71565

TUBE ASS'Y - valve to L.H. lift cylinder

1шт.

8

72295

EXHAUST MANIFOLD

TUBE ASS'Y - valve to L.H. lift cylinder (For tractors with shoe type brakes only)

1шт.

8a

R14628

TUBE ASS'Y - valve to L.H. lift cylinder (For tractors with disc type brakes only)

1шт.

9

71563

TUBE ASS'Y - valve to L.H. lift cylinder

1шт.

10

71534

BRACKET

1шт.

11

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16 - 24 NF x 1 (71534 mt'g.)

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

14

32978

PLATE ASSY.

PLATE - clamp

5шт.

15

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2 (32978 mt'g.)

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

18

71603

SPACER

1шт.

19

31665

COLLAR CLAMP

PLATE - clamp

9шт.

20

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(71603 & 31665 mtg.) Hex, 5/16"-24 x 1 3/4", G5

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

23

71573

BRACKET - support

2шт.

24

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(71573 mtg.) Hex, 5/16"-24 x 1 1/4", G5

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

27

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24 NF x 1-1/2 (32978 mt'g.)

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

30

35582

HOSE

ASS'Y - tube to lift cylinders

4шт.

31

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 mt'g.)

4шт.

32

92-5

LOCK WASHER,5/16"

4шт.

33

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

34

71571

BAND,16.875" Length

TUBE ASS'Y - valve to lift cylinder, front ports

2шт.

35

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

TUBE ASS'Y - valve to lift cylinder, L.H. rear ports

1шт.

36

71569

TUBE ASS'Y - valve to lift cylinder, R.H. rear ports

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT to 5/8" JIC

3шт.

38

R14845

ELBOW - special (R.H. only)

1шт.

38

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, extended square head (Used with R14845)

1шт.

39

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- special, 3/4" NPT to 5/8" JIC

1шт.

40

72358

SET OF RINGS,0.625" OD, 10.125" Length

TUBE ASS'Y - valve to R.H. push beam cylinder, upper

1шт.

41

71473

TUBE ASS'Y - valve to R.H. push beam cylinder, upper

1шт.

R14401

TUBE ASS'Y - valve to R.H. push beam cylinder (Used on bull dozer pull behind combination)

1шт.

42

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT to 5/8" JIC

1шт.

43

71609

TUBE ASS'Y - valve to R.H. push beam cylinder, lower

1шт.

44

71471

COVER

TUBE ASS'Y - valve to R.H. push beam cylinder, lower

1шт.

R14395

TUBE ASS'Y - valve to R.H. push beam cylinder, lower (Used with bull dozer pull behind combination)

1шт.

45

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- special, 3/4" NPT to 5/8" JIC

1шт.

46

71623

WASHER

TUBE ASS'Y - valve to L.H. push beam cylinder, upper

1шт.

47

71619

TUBE ASS'Y - valve to L.H. push beam cylinder, upper

1шт.

48

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT to 5/8" JIC

1шт.

49

71621

TUBE ASS'Y - valve to L.H. push beam cylinder, lower

1шт.

50

71617

TUBE ASS'Y - valve to L.H. push beam cylinder, lower

1шт.

51

31665

COLLAR CLAMP

PLATE - clamp

2шт.

52

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16 - 24 NF x 2 (31665 & 74104 mt'g.)

2шт.

53

74104

SPACER

2шт.

54

92-5

LOCK WASHER,5/16"

2шт.

55

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

56

74262

SUPPORT - hose clamp

2шт.

57

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(74262 mtg.) Hex, 5/16"-24 x 1 1/4", G5

2шт.

58

195-21

WASHER,5/16"

plain 5/16"

2шт.

59

131-365

LOCK NUT

NUT - lock (5/16 - 24 NF)

2шт.

60

74724

HOSE ASS'Y

4шт.

61

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

2шт.

62

74748

TUBE ASS'Y

4шт.

63

74755

GUARD ASS'Y - tube, L.H.

1шт.

64

74756

GUARD ASS'Y - tube, R.H.

1шт.

65

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

8шт.

66

92-8

LOCK WASHER,1/2"

8шт.

67

95-8

WASHER,1/2"

- plain 1/2"

4шт.

68

39882

FLEXIBLE HOSE

HOSE ASS'Y

4шт.

69

39897

TUBE ASS'Y

2шт.

70

17179

CLAMP - tube

2шт.

71

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

72

D20168

RESTRICTOR ASS'Y - flow

2шт.

73

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male

2шт.

74

72878

JET

GUARD ASS'Y

2шт.

75

14-1632

BOLT,Hex, 1" - 14 x 2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2

2шт.

76

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

77

74751

PLATE - step

2шт.

78

31665

COLLAR CLAMP

PLATE - clamp

2шт.

79

35335

SPACER

1шт.

80

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2 - 24 NF x 2

1шт.

81

92-8

LOCK WASHER,1/2"

1шт.

82

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF)

1шт.

83

71343

BRACKET

VALVE ASS'Y - hydraulic (Type I - round seal mt'g. between sections - see illustration) (See figure 286 for breakdown) (Order R14052 for service), lever

1шт.

R14052

VALVE ASS'Y - hydraulic (Type II - square seal mt'g. between sections - see illustration) (See figure 286 for breakdown), lever

1шт.

84

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2 - 20 NF x 2-1/2 (71343 mt'g.), lever & valve system

2шт.

85

92-8

LOCK WASHER,1/2"

lever & valve system 1/2"

2шт.

86

25-118

NUT,1/2"-20, G5

- reg. SF hex. (1/2 - 20 NF), lever & valve system

2шт.

87

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2 - 20 NF x 2 (71343 mt'g.), lever & valve system

1шт.

88

92-8

LOCK WASHER,1/2"

lever & valve system 1/2"

1шт.

89

71316

X

LINK - hydraulic valve, lever system

6шт.

89a

R22755

LINK

- control valve, used with R22671 spring guide (See page 288), lever system

2шт.

90

71301

LEVER - hydraulic valve, system

3шт.

91

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever & valve system 3/8" x 1.060"

12шт.

92

71303

PIN - yoke, lever & valve system

3шт.

93

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", lever & valve system

15шт.

94

NSS

NOT SOLD SEPARAT

SPACER - control lever (Order (1) 74849 & (2) 74898 for service) (For use with bushings, ref. #101), valve system

1шт.

74849

SPACER - control lever (For use with bushings, ref. #101), valve system

1шт.

95

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Dozer) (Order (1) 74888 & (2) 74898 for service) (For use without bushings, ref. #101), valve system

1шт.

74888

LEVER ASS'Y - hydraulic control (Dozer) (For use with bushings, ref. #101), valve system

1шт.

96

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Right tilt) (Order (1) 74887 & (2) 74898 for service) (For use without bushings, ref. #101), valve system

1шт.

74887

LEVER ASS'Y - hydraulic control (Right tilt) (For use with bushings, ref. #101), valve system

1шт.

97

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Left tilt) (Order (1) 74892 & (2) 74898 for service) (For use without bushings, ref. #101), valve system

1шт.

74892

LEVER ASS'Y - hydraulic control (Left tilt) (For use with bushings, ref. #101), l valve system

1шт.

98

31375

WASHER

BALL - grip, lever & valve system

3шт.

99

70148

SHAFT - hydraulic control lever, valve system

1шт.

100

W10757S

X

RING - snap, lever & valve system

2шт.

101

74898

BUSHING - nylon (Optional) (For levers), lever & valve system

8шт.

102

71513

ROD ASS'Y - hydraulic control, lever & valve system

2шт.

103

71512

CRANK

ROD - hydraulic control, lever & valve system

1шт.

104

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF), lever & valve system

1шт.

105

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, lever & valve system

1шт.

106

71515

ROD ASS'Y - hydraulic control, lever & valve system

1шт.

107

71514

ROD - hydraulic control, lever & valve system

1шт.

108

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF), lever & valve system

1шт.

109

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, lever & valve system

1шт.

110

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" NPT to 1" JIC, lever & valve system

1шт.

111

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" NPT to 1" JIC, lever & valve system

1шт.

112

72541

RING

BLOCK - clamping, lever & valve system

2шт.

113

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(72541 mtg.), Lever & valve system Hex, 5/16"-24 x 1 1/4", G5

8шт.

114

195-21

WASHER,5/16"

plain, Lever & valve system 5/16"

10шт.

115

131-365

LOCK NUT

NUT - lock (5/16 - 24 NF), lever & valve system

10шт.

116

R11754

TUBE ASS'Y, lever & valve system

1шт.

117

R11752

TUBE ASS'Y, lever & valve system

1шт.

118

R22623

WASHER - special (For float section) (Not illustrated), lever & valve system

2шт.

119

R22624

PIN - clevis (For float section) (Not illustrated), lever & valve system

1шт.
