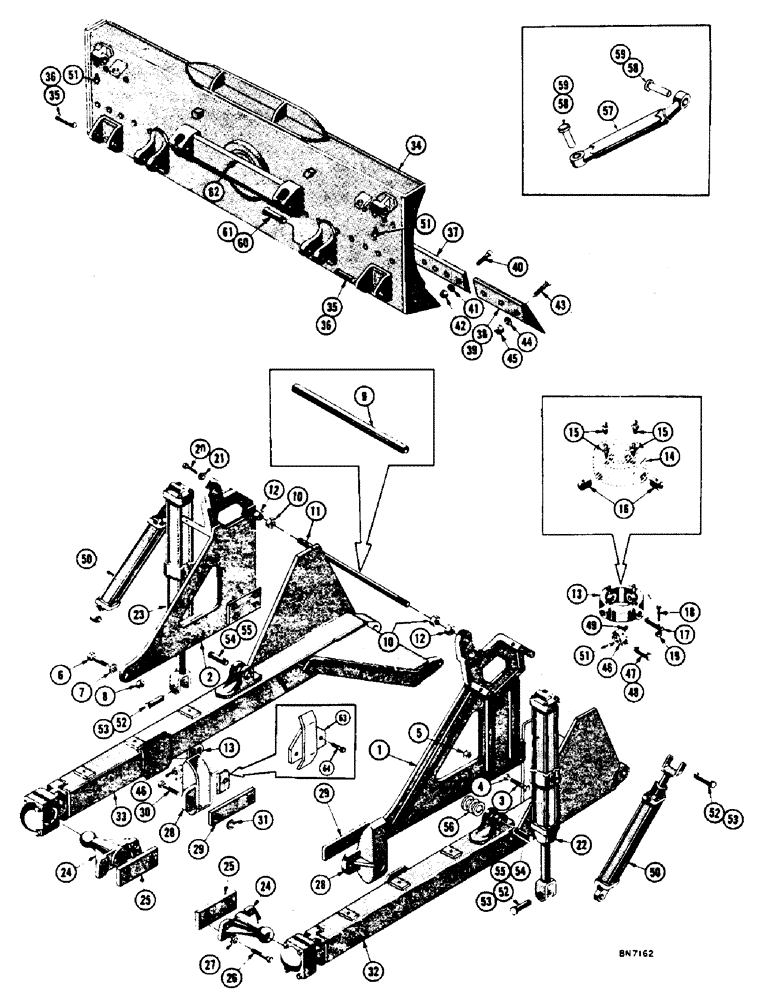

Запчасти Case 1000 (220) - HYDRAULIC CROWN TILT BULLDOZER (05) - UPPERSTRUCTURE CHASSIS

1

R13978

BRACKET ASS'Y - cylinder, R.H

1шт.

2

R13979

BRACKET ASS'Y - cylinder, L.H.

1шт.

3

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4 - 16 NF x 2 (R13978 & R13979 mt'g.)

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex. (3/4 - 16 NF)

4шт.

6

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-3/4 (R13978 & R13979 mt'g.)

2шт.

7

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

8

25-1116

NUT,1"-14, G5

- reg. SF hex. (1 - 14 NF)

2шт.

9

70388

SPACER - tie rod (Optional)

1шт.

10

25-1116

NUT,1"-14, G5

- reg. SF hex. (1 - 14 NF)

2шт.

11

74102

ROD - tie

1шт.

12

131-370

LOCK NUT

NUT - lock (1 - 14 NF)

2шт.

13

70411

YOKE ASS'Y - cylinder

2шт.

14

NSS

NOT SOLD SEPARAT

YOKE - cylinder

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

3шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

16

70332

BUSHING

4шт.

17

70333

PIN - (70411 mt'g.)

8шт.

18

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS - 3/8 - 24 NF x 3-1/2 (70333 mt'g.)

4шт.

19

230-4616

LOCK NUT,3/8"-24, GA

NUT - (3/8 - 24 NF)

4шт.

20

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS - 3/8 - 24 NF x 4-1/2 (70333 mt'g)

4шт.

21

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

4шт.

22

70743

CYLINDER ASS'Y - hydraulic, R.H. (See figure 268 for breakdown)

1шт.

23

70744

CYLINDER ASS'Y - hydraulic, L.H. (See figure 268 for breakdown)

1шт.

24

70305

TRUNNION - push

2шт.

25

70385

BLOCK - trunnion (Optional)

2шт.

26

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4 (70305 & 70385 mt'g.)

8шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

28

70377

BRACKET - rub (Used with non-reinforced track frames only)

2шт.

29

70734

WASHER

BLOCK - rub bracket (Optional)

2шт.

30

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4 - 16 NF x 2-1/4 (70377 & 70734 mt'g.)

4шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

32

R14516

BEAM ASS'Y - push, R.H.

1шт.

33

R14515

BEAM ASS'Y - push, L.H.

1шт.

34

R18990

MOLDBOARD ASS'Y - (Without cutting edges)

1шт.

39719

MOLDBOARD ASS'Y - 8 ft. (Optional)

1шт.

35

34102

WHEEL DISC

PIN - (R18990 mt'g.)

2шт.

36

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (34102 mt'g.) 3/8" x 2 1/4", Slotted

2шт.

37

70391

GEAR SET

BLADE - center cutting

1шт.

16792

EDGE, CUTTING

BLADE - center cutting (8 ft. blade only)

1шт.

38

70441

BLADE

- end, R.H.

1шт.

39

70442

BLADE

- end, L.H.

1шт.

40

19-832

BOLT

- plow, 1/2 - 13 NC x 2

20шт.

41

92-8

LOCK WASHER,1/2"

20шт.

42

25-108

NUT,1/2"-13, G5

- reg. SF hex. (1/2 - 13 NC)

20шт.

43

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8 - 11 NC x 2-1/4 (70441 & 70442 mt'g.)

6шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

45

25-1010

NUT,5/8"-11, G5

6шт.

46

70328

YOKE

UNIVERSAL - piston rod

2шт.

47

R18864

PIN

- (70328 mt'g.)

2шт.

48

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70382 mt'g.) 3/8" x 2 1/4", Slotted

2шт.

49

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

50

70449

CYLINDER ASS'Y - strut (See figure 268(1) for breakdown)

2шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

4шт.

52

70349

PIN

- (70449, 70743, & 70744 mt'g.)

4шт.

53

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mt'g.) 3/8" x 2 1/4", Slotted

4шт.

54

R18864

PIN

- (70449 mt'g.)

2шт.

55

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70382 mt'g.) 3/8" x 2 1/4", Slotted

2шт.

56

32625

WASHER - plain

6шт.

57

70424

BRACE ASS'Y - diagonal (Optional)

2шт.

58

70349

PIN

- (70424 mt'g.)

4шт.

59

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mt'g.) 3/8" x 2 1/4", Slotted

4шт.

60

70349

PIN

- (R14515 & R14516 mt'g.)

2шт.

61

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mt'g.) 3/8" x 2 1/4", Slotted

2шт.

62

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree grease, 1/8" NPT (Optional)

1шт.

63

R19558

BRACKET - rub (Used with reinforced track frames only)

2шт.

64

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4 - 16 NF x 2 (R19558 mt'g.)

4шт.
