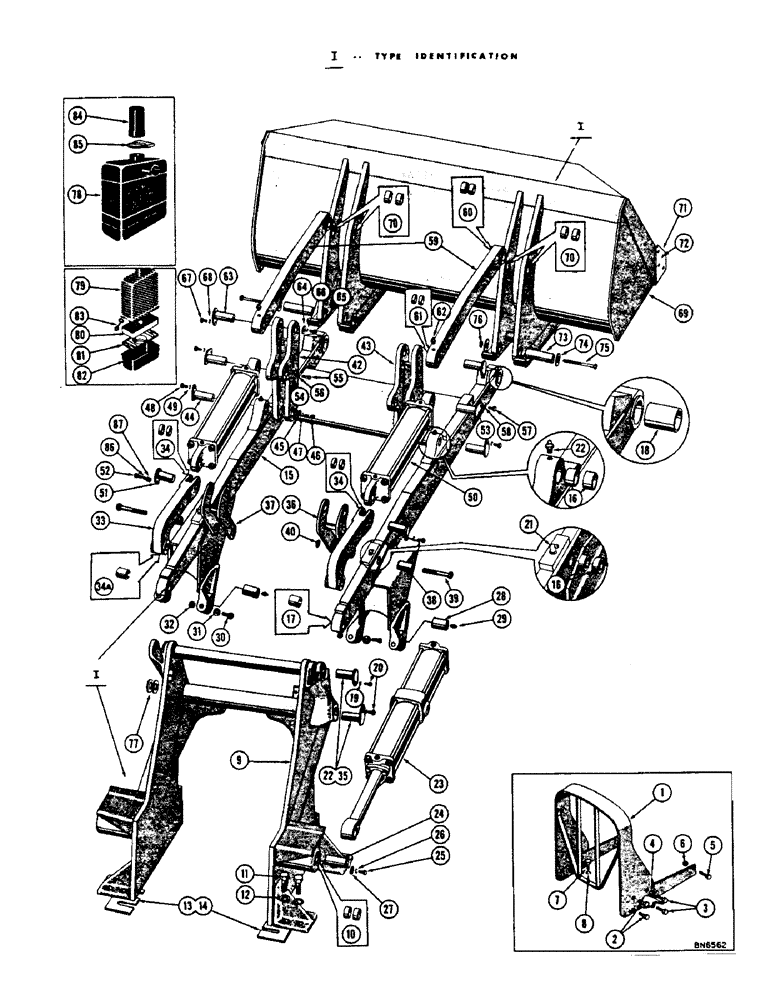

Запчасти Case 1000 (198) - REAR HINGE LOADER, TYPE I (05) - UPPERSTRUCTURE CHASSIS

1

R13976

GUARD ASS'Y - front

1шт.

2

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4 - 16 NF x 2-3/4 (R13976 mt'g)

4шт.

3

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4 - 16 NF x 3 (R13976 mt'g.)

4шт.

4

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4 - 16 NF)

4шт.

5

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-3/4 (R13976 mt'g.)

2шт.

6

131-370

LOCK NUT

NUT - lock (1 - 14 NF)

2шт.

7

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/2 (R13976 mt'g.)

1шт.

8

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

9

R16580

FRAME ASS'Y - upright

1шт.

10

70466

BUSHING

4шт.

11

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-3/4 (R13292 mt'g.)

16шт.

12

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

16шт.

13

73169

SHIM

1шт.

14

73170

SHIM

1шт.

15

R14321

FRAME ASS'Y - lift

1шт.

16

72936

BUSHING

8шт.

17

R13421

BUSHING

2шт.

18

R14259

BUSHING

2шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

6шт.

23

72891

CYLINDER ASS'Y - hydraulic (See figure 260 for breakdown) (Order R13565 for service)

2шт.

24

70524

PIN

- (72891 mt'g.)

2шт.

25

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (70524 mt'g.)

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

28

72972

PIN - cylinder bracket (72891 & R13565 mt'g.)

4шт.

29

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - straight grease, 1/4" NPT

4шт.

30

14-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 5

HHCS - 3/4 - 16 NF x 5-1/2 (72972 mt'g.)

4шт.

31

73092

WASHER - special

4шт.

32

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4 - 16 NF)

4шт.

33

R19835

ARM ASS'Y - leveling

2шт.

34

72973

BUSHING

2шт.

34a

R14259

BUSHING

1шт.

35

R14702

PIN ASS'Y

4шт.

36

R19778

LEVER ASS'Y - R.H.

1шт.

37

R19777

LEVER ASS'Y - L.H.

1шт.

38

74733

SPACER

2шт.

39

14-1696

HHCS - 1 - 14 NF x 6 (R19777 & 19778 mt'g.) Hex, 1"-14 x 6, G5

2шт.

40

131-370

LOCK NUT

NUT - lock (1 - 14 NF)

2шт.

41

RESERVED

1шт.

42

R13198

LEVER - L.H. (Order kit R2731 for service)

1шт.

43

R13199

LEVER - R.H. (Order kit R2737 for service)

1шт.

44

R13200

PIN ASS'Y - (R13198 & R13199 mt'g.) (Order R14705 for service)

2шт.

45

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

46

14-1016

BOLT,Hex, 5/8" - 18 x 1"

HHCS - 5/8 - 18 NF x 1 (R13200 mt'g.)

2шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

48

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (R13200 mt'g.)

2шт.

49

92-8

LOCK WASHER,1/2"

2шт.

50

73046

ROTOR

CYLINDER ASS'Y - hydraulic (See figure 264 for breakdown)

2шт.

51

R15288

PIN ASS'Y

2шт.

52

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

2шт.

53

R13200

PIN ASS'Y - (73046 mt'g.) (Order R14705 for service)

2шт.

54

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

55

14-1016

BOLT,Hex, 5/8" - 18 x 1"

HHCS - 5/8 - 18 NF x 1 (R13200 mt'g.)

2шт.

56

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

57

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (R13200 mt'g.)

2шт.

58

92-8

LOCK WASHER,1/2"

2шт.

59

R11209

ARM ASS'Y - dump

2шт.

60

70466

BUSHING

2шт.

61

72973

BUSHING

2шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

63

R13200

PIN ASS'Y - (72942 or R11209 mt'g.) (Order R14705 for service)

2шт.

64

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

65

14-1016

BOLT,Hex, 5/8" - 18 x 1"

HHCS - 5/8 - 18 NF x 1 (R13200 mt'g.)

2шт.

66

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

67

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (R13200 mt'g.)

2шт.

68

92-8

LOCK WASHER,1/2"

2шт.

69

39708

X

BUCKET ASS'Y

1шт.

70

70466

BUSHING

8шт.

71

72855

BLADE

EDGE - cutting

1шт.

72

46-840

RIVET,Pop, 1/2" x 2 1/2"

- ctsk. head (72855 mt'g.)

27шт.

73

72912

PIN - (39708 mt'g.) (5" long) (Optional)

4шт.

74731

PIN - (39708 mt'g.) (5-7/8" long) (Optional)

4шт.

74

72915

GASKET

- special

8шт.

75

14-12120

HHCS - 3/4 - 16 NF x 7-1/2 (72912 or 74731 mt'g.)

4шт.

76

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4 - 16 NF)

4шт.

77

74298

WASHER

SPACER

1шт.

78

74761

CLEANER ASS'Y - air

1шт.

79

NSS

NOT SOLD SEPARAT

BODY ASS'Y - air cleaner

1шт.

80

73564

VALVE

SCREEN ASS'Y

1шт.

81

73567

CUP & BAFFLE ASS'Y

1шт.

82

73565

COUPLING

CUP ASS'Y

1шт.

83

73566

ELBOW

ROD ASS'Y

2шт.

84

74767

ARTICULATION

STACK - air cleaner

1шт.

85

74768

X,2-1/2" ID

CLAMP ASS'Y

1шт.

86

92-8

LOCK WASHER,1/2"

2шт.

87

D23740

BUSHING

2шт.
