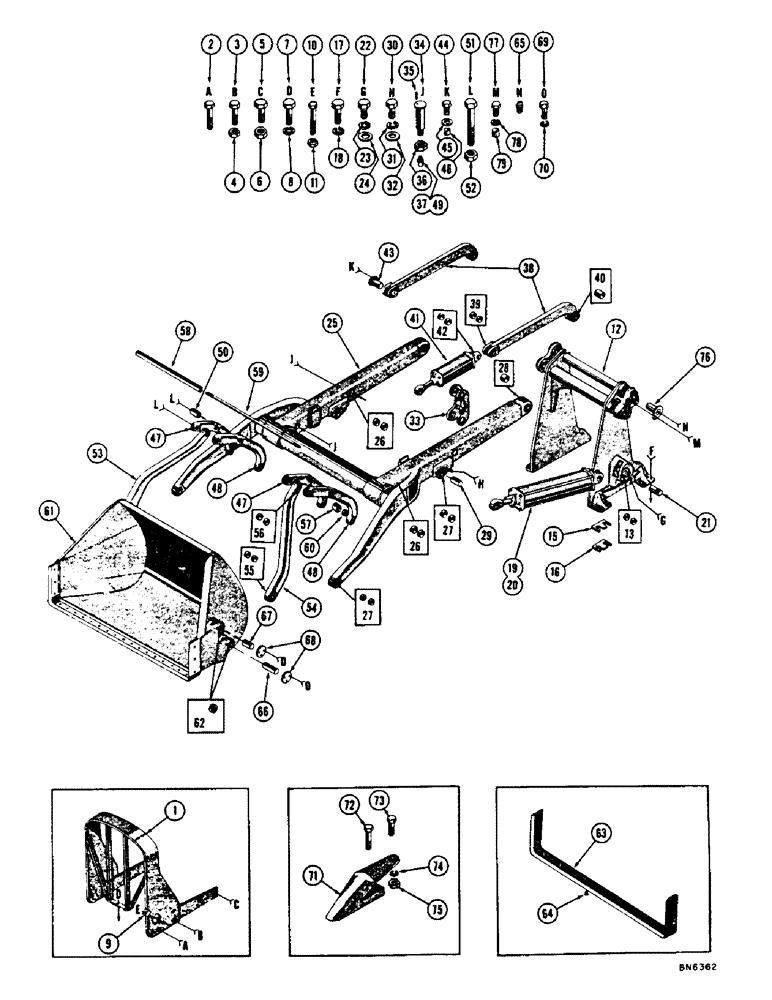

Запчасти Case 1000 (190) - END HINGE LOADER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
72221
BUMPER ASS'Y
1шт.
2
14-1248
BOLT,Hex, 3/4" - 16 x 3", Gr 5
HHCS - 3/4 - 16 NF x 3 (72221 mt'g.)
4шт.
3
14-1244
BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5
HHCS - 3/4 - 16 NF x 2-3/4 (72221 mt'g.)
4шт.
4
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock (3/4 - 16 NF)
4шт.
5
14-1668
HHCS - 1 - 14 x 4-1/4 (72221 mt'g.)
2шт.
6
131-370
LOCK NUT
NUT - lock (1 - 14 NF)
2шт.
7
14-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd
HHCS - 1 - 14 NF x 2-1/2 (72221 mt'g.)
1шт.
8
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
1шт.
9
31636
BLOCK - stop
2шт.
10
14-856
BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5
HHCS - 1/2 - 20 NF x 3-1/2 (31636 mt'g.)
2шт.
11
230-4618
LOCK NUT,1/2"-20, GA
NUT - lock (1/2 - 20 NF)
2шт.
12
R20199
FRAME ASS'Y - main
1шт.
13
70466
BUSHING
4шт.
14
RESERVED
1шт.
15
73169
SHIM - loader
1шт.
16
73170
SHIM
- loader
1шт.
17
14-1644
BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd
HHCS - 1 - 14 NF x 2-3/4 (R20199 mt'g.)
16шт.
18
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
16шт.
19
70587
CYLINDER ASS'Y - R.H. hydraulic (See figure 258 for breakdown)
1шт.
20
70588
CYLINDER ASS'Y - L.H. hydraulic (See figure 258 for breakdown)
1шт.
21
70524
PIN
- (70587 & 70588 mt'g. bottom)
2шт.
22
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
Hex, 5/8"-18 x 1 1/4 (70524 mt'g.)
2шт.
24
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- special
2шт.
25
R17296
ARM ASS'Y - main lift
1шт.
26
70476
BUSHING
8шт.
27
70466
BUSHING
8шт.
28
R14259
BUSHING
2шт.
29
72104
SHROUD
PIN - (70587 & 70588 mt'g.)
2шт.
30
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
Hex, 5/8"-18 x 1 1/4 (72104 mt'g.)
4шт.
32
95-10
WASHER,5/8"
- plain
4шт.
33
R15499
LEVER ASS'Y
2шт.
34
72659
PIN ASS'Y - lever (R14599 mt'g.)
4шт.
35
138-170
LOCK PIN,3/8" x 1", Slotted
Pin, , drive lock 3/8" x 1", Slotted
4шт.
36
131-370
LOCK NUT
NUT - lock (1 - 14 NF)
4шт.
37
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8" NPT (For rear pivot pins)
2шт.
38
R15307
ARM ASS'Y - bucket leveling
2шт.
39
72973
BUSHING
2шт.
40
R14259
BUSHING
1шт.
41
72257
CYLINDER ASS'Y - hydraulic (See figure 266 for breakdown) (Order with ref. #42 for service)
2шт.
42
72973
BUSHING
- (Used with 72257 cylinder, for rear pin)
2шт.
43
R15493
PIN ASS'Y
2шт.
44
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2 - 20 NF x 1
2шт.
45
92-8
LOCK WASHER,1/2"
2шт.
46
D23740
BUSHING
2шт.
47
72098
LEVER ASS'Y - R.H.
2шт.
48
NLS
NO LONGER SERVICED
LEVER ASS'Y - L.H.
2шт.
49
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, (For front pivot pins) 90º, 1/8" NPT x .84" lg
2шт.
50
70512
SPACER
2шт.
51
14-16122
HHCS - 1 - 14 NF x 7-5/8 (72257 mt'g.)
4шт.
52
131-370
LOCK NUT
NUT - lock (1 - 14 NF)
4шт.
53
70721
KIT
ARM ASS'Y - R.H. dump
1шт.
54
70722
O-RING
ARM ASS'Y - L.H. dump
1шт.
55
70466
BUSHING
2шт.
56
70476
BUSHING
2шт.
57
70512
SPACER
2шт.
58
72117
SPACER - tie rod
1шт.
59
72118
TAPPET
ROD - tie
1шт.
60
131-370
LOCK NUT
NUT - lock (1 - 14 NF)
2шт.
61
70590
BUCKET ASS'Y
1шт.
62
70466
BUSHING
8шт.
63
70592
EDGE - cutting
1шт.
64
46-836
RIVET,Csk, 1/2" x 2 1/4"
- 1/2 - 2-1/4
25шт.
65
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8" NPT
6шт.
66
70525
PIN - (70590 mt'g.)
2шт.
67
70526
PIN - (70590 mt'g.)
2шт.
68
70531
PIN
PLATE - end cover
4шт.
69
14-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5
HHCS - 3/8 - 24 NF x 1-1/4
12шт.
70
193-10
LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 3/8"
12шт.
8553
SPARE PART
TEETH INSTALLATION - digging (Optional equipment)
1шт.
71
70544
X
TOOTH - digging (Order R18502 for service)
7шт.
72
14-852
BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5
HHCS - 1/2 - 20 NF x 3-1/4 (70544 mt'g.)
7шт.
73
14-836
BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5
HHCS - 1/2 - 20 NF x 2-1/4 (70544 mt'g.)
7шт.
74
92-8
LOCK WASHER,1/2"
14шт.
75
25-118
NUT,1/2"-20, G5
- reg. SF hex. (1/2 - 20 NF)
14шт.
76
R14702
PIN ASS'Y
4шт.
79
D23740
BUSHING
2шт.
Выбрано товаров: 80
