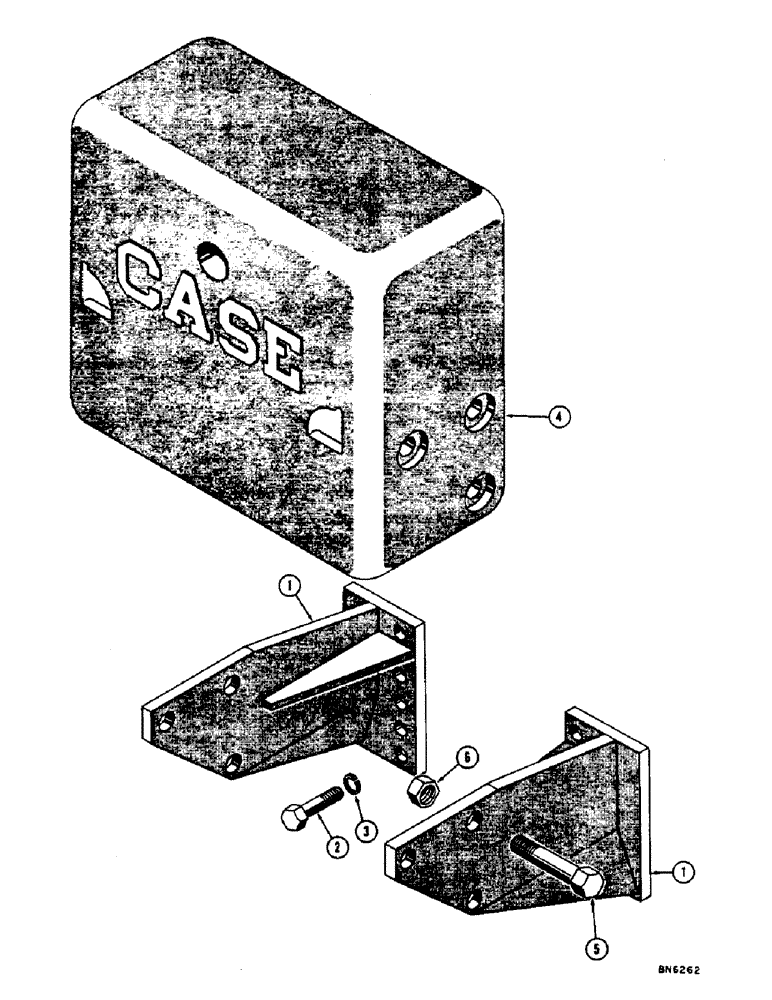

Запчасти Case 1000 (186) - REAR COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS

6261

SHAFT

COUNTERWEIGHT INSTALLATION - (Optional equipment)

1шт.

1

70980

BRACKET ASS'Y - counterweight attaching (R.H.)

1шт.

70981

BRACKET ASS'Y - counterweight attaching (L.H.)

1шт.

2

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4 - 16 NF x 2-1/4 (70980 & 70981 mt'g.)

6шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

4

70982

COUNTERWEIGHT

1шт.

5

14-1696

HHCS - 1" - 14 NF x 6 (70982 mt'g.) Hex, 1"-14 x 6, G5

6шт.

6

131-370

LOCK NUT

NUT - lock 1" - 14 NF

6шт.
