(184) - TOOLS, GREASE GUN, AND DECALS

Запчасти Case 1000 (184) - TOOLS, GREASE GUN, AND DECALS (05) - UPPERSTRUCTURE CHASSIS

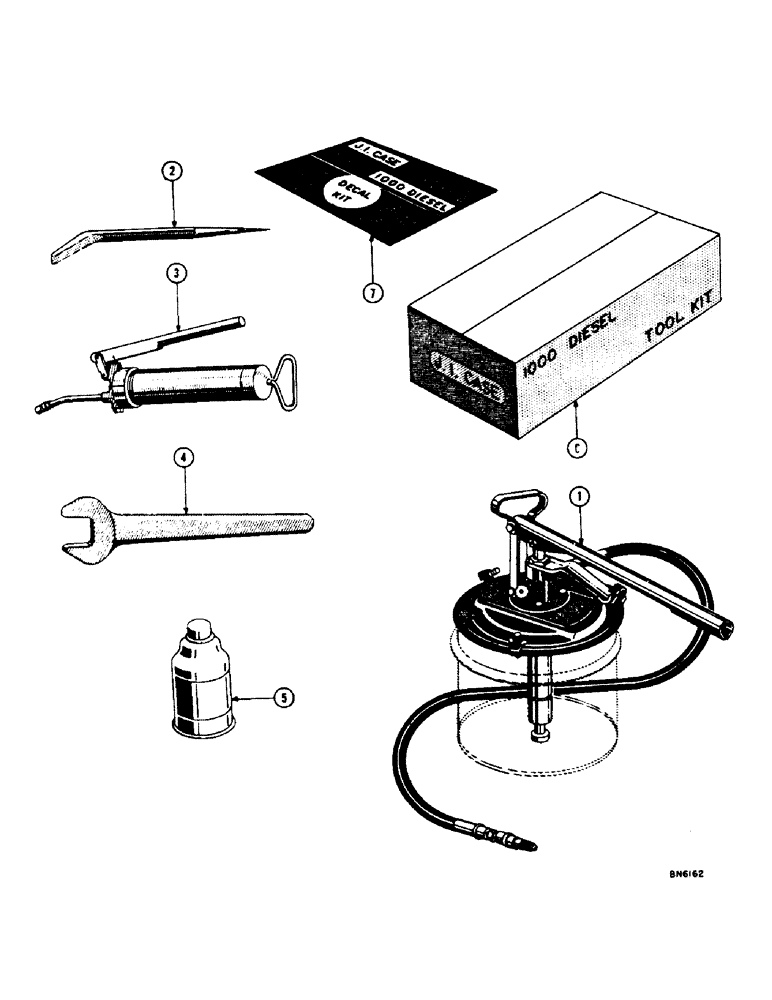

Схема запчастей Case 1000 - (184) - TOOLS, GREASE GUN, AND DECALS (05) - UPPERSTRUCTURE CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71261

PUMP - lubricant (Optional)

1шт.

2

NLS

NO LONGER SERVICED

BAR - pinch

1шт.

3

D21098

TOOL

GUN - grease (Optional)

1шт.

4

R12082

OPEN END WRENCH

WRENCH

1шт.

5

R13939

X

ETHER CAN - (Spray type for air intake)

1шт.

6

73200

- owners

1шт.

7

R4190

KIT - decal (Optional) (Dozer tractors)

1шт.

R4189

DECAL

KIT - decal (Optional) (Loader tractors)

1шт.
